| Product Name: | 2x2B Optical Switch | Wavelength: | 1310/1550nm Or Customize |
|---|---|---|---|
| Connector: | SC/UPC Or Customize | Voltage: | 5V Or 3V |
| Mode: | Sm Or Mm | Application: | System Monitoring |
| High Light: | High Reliability Fiber Optic Switch,High Stability Optical Switches,2x2 Channels Fiber Optic Switch |
||

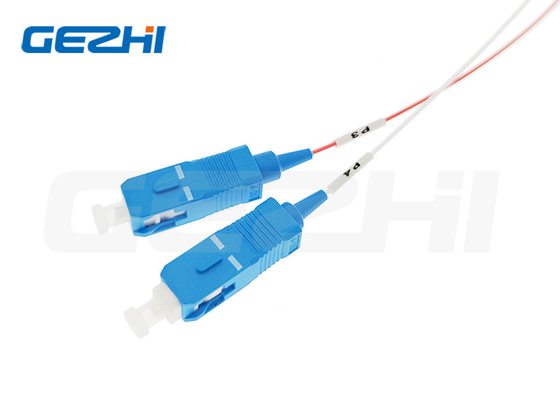

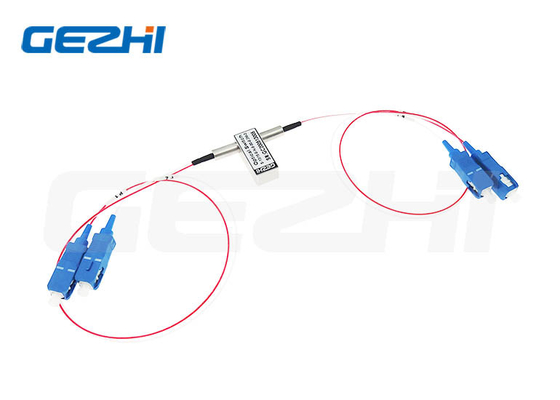

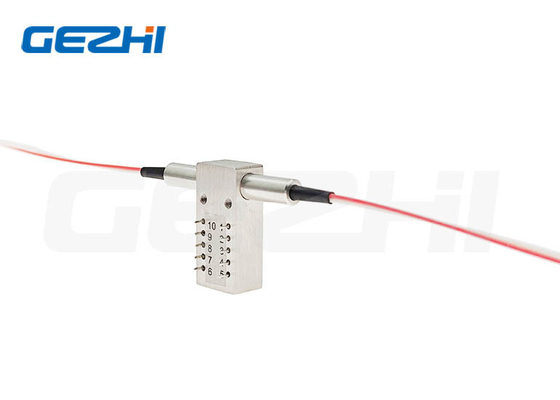

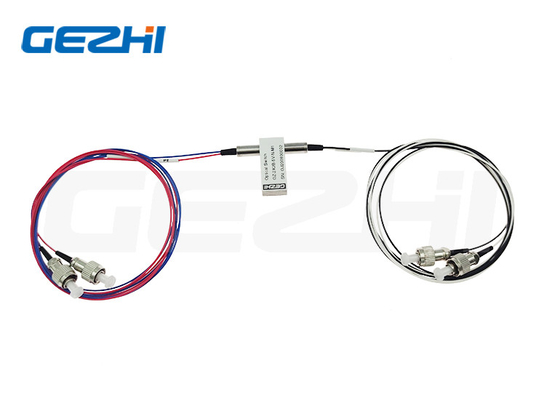

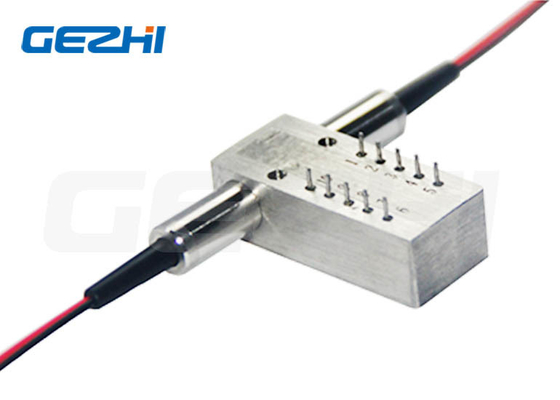

Overview of 2x2B Optical Switch
High Reliability Stability 2x2 Channels Bypass Opto-Mechanical Optical Switches
2X2B Opto-Mechanial Optical Switch
The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
Features & Applications of 2x2B Optical Switch
|
Features Low Insertion Loss |
Applications Network switching System monitoring Channel Blocking Module and System Integration Metropolitan Area Network Network protection and restoration |
Specifications of 2x2B Optical Switch
| Parameters | Unit | GZ-FSW-2×2B | |
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating Wavelength | nm | 850/1300 | 1310/1550 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 | |
Optical Route of 2x2B Optical Switch
Odering Information of 2x2B Optical Switch
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
