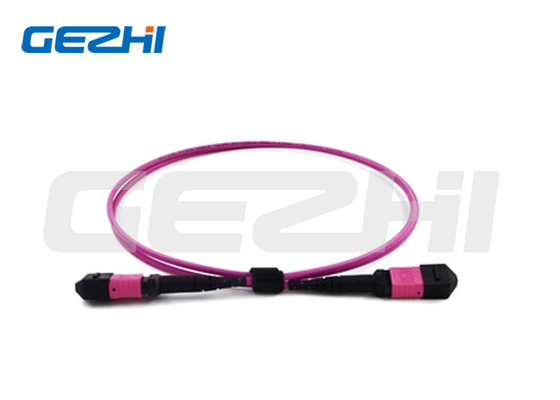

12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable

12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable
12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable 12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable 12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable

Large Image :  12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: OS2 9/125 MPO Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Ngotiable
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Detailed Product Description
Connector Type: SC / E2000 / FC / ST Mode Type: SM / MM
Cable Color: 12 Colors Cable Diameter: 3.0mm
Cable Length: Can Be Customized Insertion Loss: ≤0.5db
Return Loss: APC≥65dB; PC≥55
High Light:

Multimode Patch Cable Series

,

12 Fibre Patch Cable Series

,

MPO Multimode Patch Cord

Female OS2 9/125 MPO Cable 12 Fibre Multimode Patch Cord

Product Description

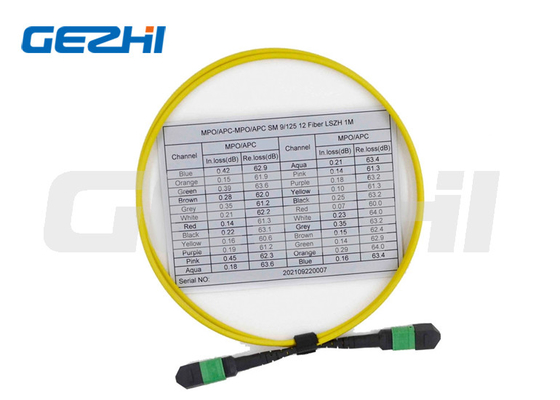

GEZHI Photonics is a factory of pre-terminated 9/125 OS2 Single Mode MPO trunk cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is suitable for use in 40G QSFP+ transceiver, 100G QSFP28, 400G OSFP, 400G QSFP parallel transceiver optics connection. Each MPO OS2 fiber cable has passed the test of Insertion Loss & Return Loss,End-face Inspection, and Polarity Check in the factory, ensuring complies and exceeds industry standards.

12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable 0

Custom Connectors

The MPO interfaces on active equipment are male (with pins), and to avoid damage to the transceiver, MPO patch cords should be female (without pins).

Male (with pins)

The male connector is mated to the female side for adapters, cassettes or panels connection.

Female (without pins)

The female connector can be directly connected to transceivers or other male

connectors.

12 Fibre Multimode Patch Cable Series Female OS2 9/125 MPO Cable 1



Products info

Fiber count 12 Fiber Mode 9/125μm
Connector Type1 LC Connector Type2 Unterminated
Fiber Mode SM Breakout length 1.5m
Wavelength 1310/1550nm Jacket Material PVC/LSZH
Insertion loss ≤0.25dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

Specifications

Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM OS2 8F/APC 0.70 60 0.35 60
12F/APC 0.70 60 0.35 60
24F/APC 0.70 60 0.35 60
8F/PC 0.70 60 0.35 60
12F/PC 0.70 60 0.35 60
24F/PC 0.70 60 0.35 60
