40CH AAWG DWDM Module MUX DEMUX Single Fiber 0.7m Length for WDM Transmission

Name: 40CH AAWG DWDM Module MUX DEMUX Single Fiber 0.7m Length for WDM Transmission
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 40CH AAWG DWDM module MUX DEMUX
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	40CH AAWG DWDM module MUX DEMUX
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Spacing:

100 GHZ

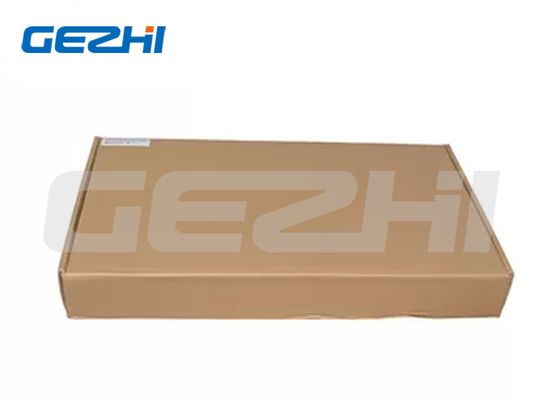

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

40CH AAWG DWDM Module

Single Fiber DWDM Module

Single Fiber MUX DEMUX

Product Description

40CH AAWG DWDM Module MUX DEMUX Single Fiber 0.7m Length

Product Overview

40CH AAWG DWDM module MUX DEMUX Single Fiber 0.7m Length C21-C60 LC/UPC Connector

AAWG module is based on the silica on silicon technology and requires no electrical power. The product offers high stability and reliability with a compact package size. This module is Telcordia GR-1221-CORE qualified and RoHS compliant.

Key Features

Athermal design operates over operating temperature range
Large channel number capability
Compact size for space-efficient installation
High stability and reliability
Low insertion loss and high isolation for increased system margin

Applications

WDM transmission systems
Metro and long haul networks

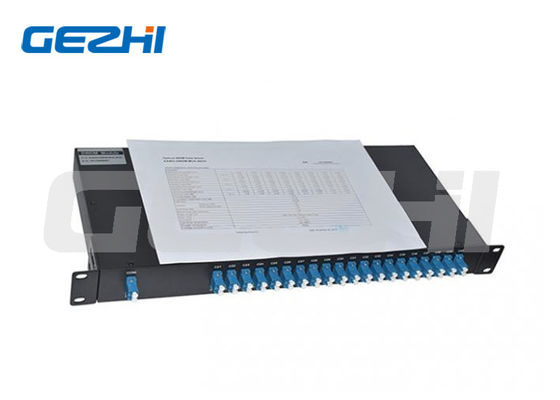

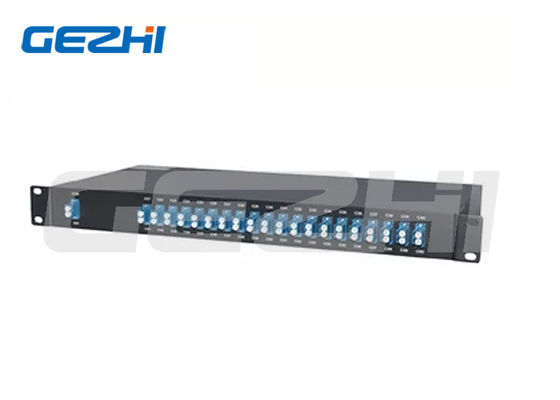

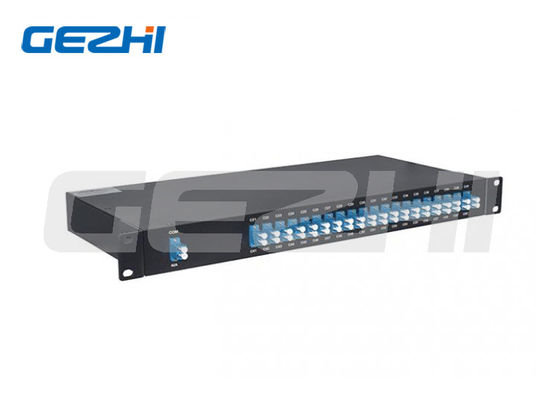

Product Images

Technical Specifications

Parameter	Unit	Value
Channel Spacing	GHz	100
Channel Number	CH	40~48
Wavelength Accuracy	nm	+0.05
1dB Pass Band	nm	≥0.38
3dB Pass Band	nm	≥0.58
Insertion Loss	dB	≤5.5
Ripple	dB	≤0.5
Uniformity	dB	≤1.5
Adjacent Crosstalk	dB	≥23
Non-adjacent Crosstalk	dB	≥30
Total Crosstalk	dB	≥21
Polarization Dependent Loss (PDL)	dB	≤0.5
PMD	ps	≤0.5
Chromatic Dispersion	ps/nm	±20
Return Loss	dB	≥40
Fiber Input Port	mm	0.9
Output Ribbon Fan Out	mm	0.9
Operation Temperature	°C	-5~+65
Storage Temperature	°C	-40~+85
Package Dimensions	mm	120x70x11

Packaging Options

ABS plastic box
LGX metal cassette box
19-inch rack mount
DWDM Solutions and DWDM SFP/XFP compatible

Mechanical Dimensions

Quality Guarantee

Brand new components
OEM/ODM services available
100% quality tested with aging tests
3-year comprehensive warranty
