Dual Fiber DWDM OADM Optical Add/Drop Multiplexer with SC/APC Interface and Low Insertion Loss

Name: Dual Fiber DWDM OADM Optical Add/Drop Multiplexer with SC/APC Interface and Low Insertion Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GEZHI-DWDM OADM
Price: 83.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GEZHI-DWDM OADM
MOQ:	1pc
Price:	US$58-US$108
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

OADM Left+Right CH41SC/APC

Fiber Type:

Dual Fiber

Fiber Length:

50cm

Channel:

CH41

Optical Interface:

SC/APC

Package:

ABS Box

Package Dimension:

100*80*10CM

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Dual Fiber Optical Module

DWDM Optical Module

APC Interface DWDM OADM

Product Description

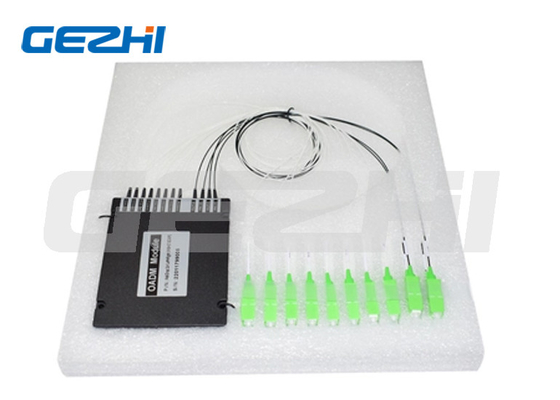

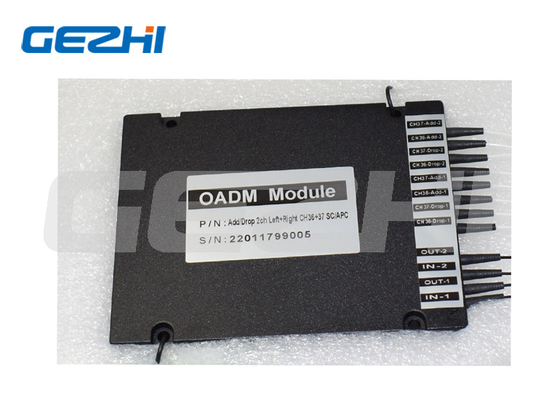

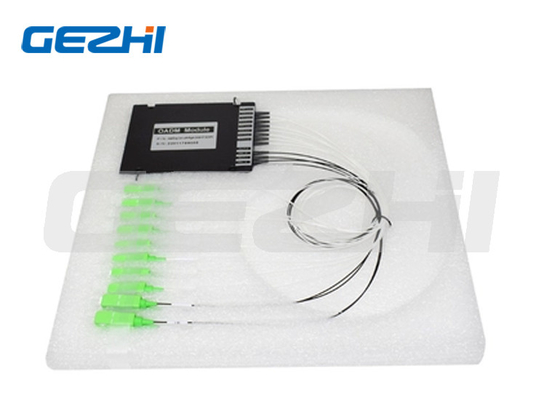

Dual Fiber Optical Module DWDM OADM With SC APC Interface

Product Description

DWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one or multiple 100 GHz DWDM channels in the C-band into one or two fibers, while allowing the remaining wavelengths to bypass to the required destination. Utilizing DWDM technology effectively adds WDM capability to existing and new networks, extending optical signal transmission distance.

DWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations. With matching MUX/DeMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop up to 4 data channels at any point along the trunk.

Features

Low Insertion Loss
Low Crosstalk
High Stability & Reliability
Epoxy-free on Optical Path

Applications

Line Monitoring
DWDM Network
Telecommunication
Configurable OADM

Performance Specifications

Parameter	Unit	1CH	2CH	4CH	8CH
Channel Wavelength	nm	ITU Grid
Channel Spacing	GHz	100 or 200
Channel Passband (@-0.5dB bandwidth)	nm	>0.3
Insertion Loss	dB	<0.9	<1.2	<1.5	<2.8
Special Service	/	Monitor or 1310nm is available
Channel Ripple	dB	0.5
Isolation - Adjacent	dB	>30	>30	>30	>30
Isolation - Non-adjacent	dB	>40	>40	>40	>40
Insertion Loss Temperature Sensitivity	dB/℃	<0.005
Wavelength Temperature Shifting	nm/℃	<0.002
Polarization Dependent Loss	dB	<0.1
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	>45
Maximum Power Handling	mW	300
Operating Temperature	℃	-5~+75
Storage Temperature	℃	-40~85
Package Dimension	mm	L80xW60xH12 or L100xW80xH10	L120xW80xH18	L141xW115xH18

Note: 1. Customized specifications are available.

Specified without connector. If with connector, IL will increase 0.2dB.

Ordering Information

DWDM	Number of Channels	Configuration	Module Type	Cable Type	Fiber Length	Connector
OADM 1=100G 2=200G	01=1 Channel 02=2 Channel 03=3 Channel 04=4 Channel ... 16=16 Channel 17=17 Channel 18=18 Channel	SS=Single fiber West or East SD=Single fiber West & East DS=Dual Fiber West or East DD=Dual Fiber West & East	A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 12929130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack S=Specify	09=900um loose tube 20=2.0mm 30=3.0mm	05=0.5m 10=1.0m 15=1.5m S=Specify	00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify
