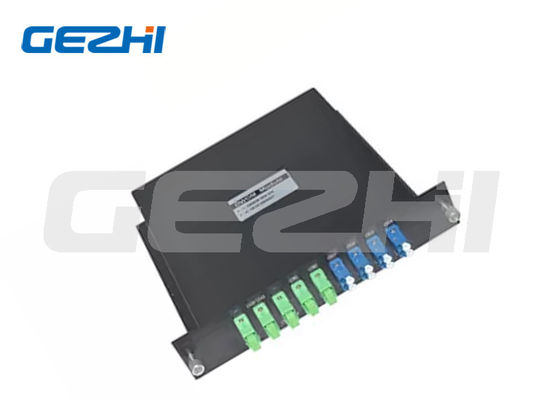

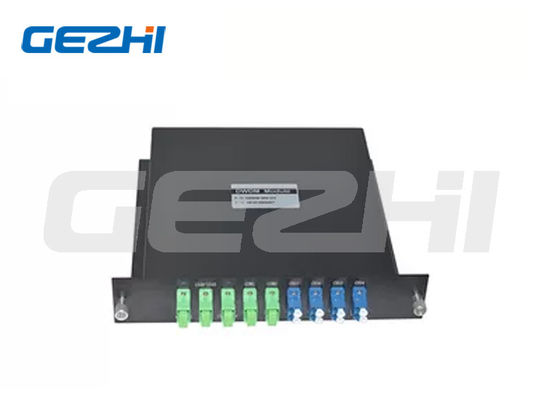

High Isolation Optical DWDM Mux Demux 2X4CH Dual Fiber with Wide Operating Temperature -40~85°C LGX Type

Name: High Isolation Optical DWDM Mux Demux 2X4CH Dual Fiber with Wide Operating Temperature -40~85°C LGX Type
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GEZHI-DWDM - MUX/DEMUX
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GEZHI-DWDM - MUX/DEMUX
MOQ:	1pc
Price:	US$58-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel:

2x4ch

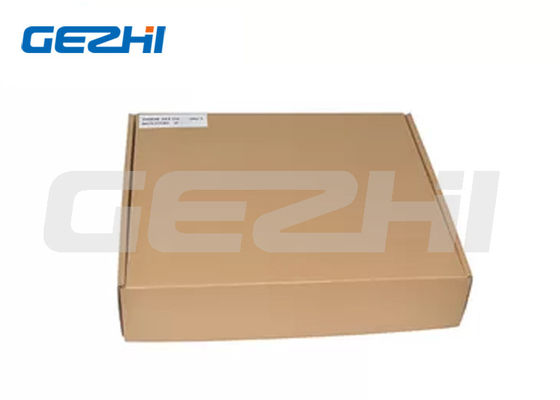

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

High Isolation DWDM Mux Demux

LGX Type DWDM Mux Demux

Dual Fiber Optical DWDM

Product Description

High Isolation Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type

Product Overview

Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type featuring high isolation and new condition. This compact module delivers reliable performance for demanding optical network applications.

Key Features

Very Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: C17~C63
Optical Path Epoxy Free
Telcordia 1221 Compliant
Wide Operating Temperature: -40℃ to 85℃
High Reliability and Stability

Applications

DWDM System
PON Networks
CATV Links
With DWDM SFP, DWDM XFP for a solution

Technical Specifications

Parameters	100 GHz	200 GHz
Channel Number	1×4 \| 1×8 \| 1×16	1×4 \| 1×8 \| 1×16
Center Wavelength (nm)	ITU Grid
Center Wavelength Accuracy (nm)	± 0.05	± 0.1
Channel Passband (@-0.5dB) (nm)	0.22	0.5
Fiber Type	SMF-28e with 900um loose tube or customer specified
IL (dB)	1 \| 1.5 \| 2.2	1.7 \| 2.9 \| 3.8
Passband Ripple (dB)	0.35 \| 0.4 \| 0.5	0.35 \| 0.4 \| 0.5
Isolation (dB) - Adjacent Channel	25	28
Isolation (dB) - Non-Adjacent Channel	40
PDL (dB)	0.2
PMD (ps)	0.1
RL (dB)	45
Directivity (dB)	50
Maximum Optical Power (mw)	300
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
BOX Package (mm)	100×80×10 or 140×115×18
LGX Package	1U, 2U
19" Rack mount Package	1U

Quality Guarantee

Brand new condition
OEM/ODM services available
100% through quality test and aging test
3 years warranty (from the date of shipment)
