DWDM Mux Demux
Created with Pixso. Customizable Channels DWDM Mux Demux with Low Insertion Loss and Wide Temperature Range
Customizable Channels DWDM Mux Demux with Low Insertion Loss and Wide Temperature Range
  • name

Customizable Channels DWDM Mux Demux with Low Insertion Loss and Wide Temperature Range

Brand Name: GEZHI
Model Number: DWDM Mux Demux
MOQ: 1
Price: UU$350-US$680
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Operating Temperature:
-40℃~+85℃
Return Loss:
≥50dB
Storage Temperature:
-40℃~+85℃
Channel Count:
4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, 1536
Product Name:
DWDM Mux Demux
Isolation:
≥30dB
Package Type:
1U, 2U, 4U, 6U, 8U, 10U
Power Consumption:
≤10W
Highlight:

SC Connector DWDM Mux Demux

,

Customizable Channels DWDM Mux Demux

Product Description
Customizable Channels SC Connector DWDM Mux Demux
Product Overview

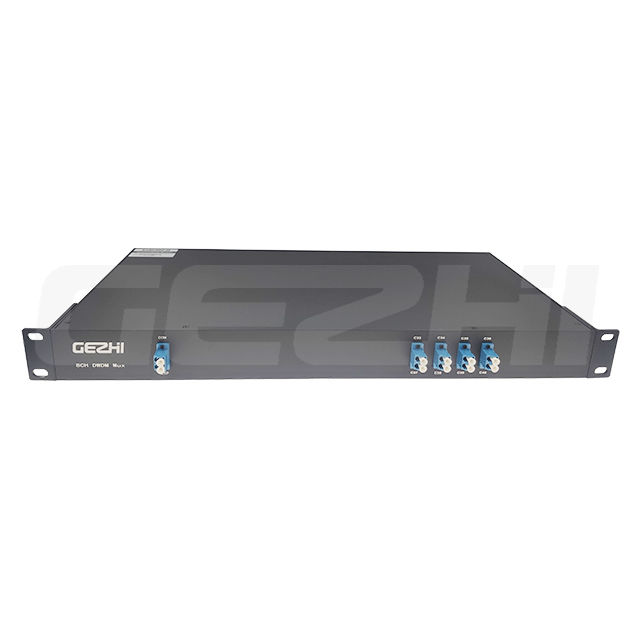

DWDM Mux Demux is a Dense Wavelength Division Multiplexer designed for multiplexing and demultiplexing up to 80 channels of optical signals. This device efficiently combines multiple wavelengths into a single fiber and separates them into individual channels, featuring channel spacing options of 100GHz, 50GHz, 20GHz, 10GHz, and 5GHz. With maximum insertion loss of only 7.0dB and PDL ≤0.2dB, it delivers superior performance for demanding applications.
Key Features
  • Dense Wavelength Division Multiplexer (DWDM): Enables multiple optical signal transmission over single fiber using different wavelengths
  • Channel Spacing: 100GHz, 50GHz, 20GHz, 10GHz, 5GHz
  • Environmental Resistance: Operates in -40°C to 85°C temperature range and 5% to 95% relative humidity
  • Package Types: 1U, 2U, 4U, 6U, 8U, 10U rack-mountable configurations
  • Connector Options: LC, SC, FC, ST connector types available
Technical Specifications
Parameter Specification
Storage Temperature -40℃ to +85℃
Operating Temperature -40℃ to +85℃
Connector Type LC, SC, FC, ST
Channel Count 4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, 1536
Power Consumption ≤10W
Relative Humidity 5% to 95%
PDL ≤0.2dB
Polarization Mode Dispersion ≤0.2ps
Applications
GEZHI's DWDM Mux Demux is widely used in fiber-optic communication systems to combine, transmit, and separate multiple optical signals over single optical fibers, significantly increasing network capacity. Certified with CE RoHS and ISO9001, this wavelength multiplexer/demultiplexer supports C-Band and L-Band wavelengths and is ideal for long-haul, high-speed, high-capacity DWDM applications. With return loss ≥50dB, isolation ≥30dB, and PDL ≤0.2dB, it provides efficient and reliable signal transmission for high-bandwidth networks.
Packaging & Shipping
DWDM Mux Demux products are carefully packaged and shipped to ensure safe delivery. All components and accessories are securely packed in shock-resistant boxes, properly sealed and labeled with product information and destination details. Additional outer packaging provides extra protection during transit via reliable shipping providers.
Frequently Asked Questions
What is GEZHI DWDM Mux Demux?
GEZHI DWDM Mux Demux is a product used to multiplex and demultiplex different wavelengths of optical signals.
What is the place of origin?
The place of origin of GEZHI DWDM Mux Demux is China.
What certifications does GEZHI DWDM Mux Demux have?
GEZHI DWDM Mux Demux has CE RoHS and ISO9001 certifications.
What is the minimum order quantity?
The minimum order quantity of GEZHI DWDM Mux Demux is 1.
What applications does GEZHI DWDM Mux Demux have?
GEZHI DWDM Mux Demux can be used in fiber-optic communication systems for data transmission.
