DWDM Mux Demux

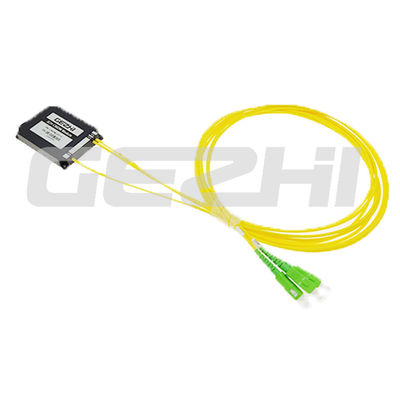

Created with Pixso. DWDM Mux Demux Device for C-Band and L-Band with Low Insertion Loss ≤7.0dB and Wide Operating Temperature -40℃~+85℃
DWDM Mux Demux Device for C-Band and L-Band with Low Insertion Loss ≤7.0dB and Wide Operating Temperature -40℃~+85℃
  • name

DWDM Mux Demux Device for C-Band and L-Band with Low Insertion Loss ≤7.0dB and Wide Operating Temperature -40℃~+85℃

Brand Name: GEZHI
Model Number: DWDM Mux Demux
MOQ: 1
Price: US$58-US$118
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Channel Count:
4, 8, 16, 32, 40, 80, 96 Or Customized
PDL:
≤0.2dB
Wavelength:
C-Band, L-Band
Polarization Mode Dispersion:
≤0.2ps
Insertion Loss:
≤7.0dB
Operating Temperature:
-40℃~+85℃
Storage Temperature:
-40℃~+85℃
Relative Humidity:
5%~95%
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

SC Connector Multiplexing Device

,

C Band Multiplexing Device

,

L Band Multiplexing Device

Product Description
DWDM Mux Demux Multiplexing Device
DWDM Mux Demux is a wavelength multiplexing device that enables high-density, high-speed data transmission over optical networks. It combines multiple independent optical signals into one signal over a single optical fiber and separates them at the destination. This integrated solution supports C-Band and L-Band wavelengths with various channel spacing options.
Product Features
  • Product Name: DWDM Mux Demux
  • Return Loss: ≥50dB
  • Connector Types: LC, SC, FC, ST
  • Insertion Loss: ≤7.0dB
  • Operating Temperature: -40℃ to +85℃
  • Channel Spacing: 100GHz, 50GHz, 20GHz, 10GHz, 5GHz
  • Package Types: 1U, 2U, 4U, 6U, 8U, 10U
Technical Specifications
Parameter Specification
Wavelength C-Band, L-Band
Relative Humidity 5% to 95%
Return Loss ≥50dB
Channel Count 4, 8, 16, 32, 40, 80, 96, Customized
PDL ≤0.2dB
Power Consumption ≤10W
Isolation ≥30dB
Package Type 1U, 2U, 4U, 6U, 8U, 10U
Connector Type LC, SC, FC, ST
Polarization Mode Dispersion ≤0.2ps
Applications
GEZHI's DWDM Mux Demux is CE RoHS and ISO9001 certified and finds extensive applications in dense wavelength division multiplexing systems. With low insertion loss (≤7.0dB) and support for multiple channel spacings, it operates reliably across a wide temperature range (-40℃ to +85℃) for both C-Band and L-Band wavelengths.
Packaging & Shipping
DWDM Mux Demux products are securely packaged using corrugated boxes, bubble wrap, foam, and protective materials. We offer standard international shipping via airfreight or sea freight, with express and overnight options available. Most orders include free shipping, with expedited options at additional cost. All shipments include tracking numbers for secure delivery.
Frequently Asked Questions
What is GEZHI DWDM Mux Demux?
GEZHI DWDM Mux Demux is an integrated device designed to multiplex and demultiplex multiple optical signals over a single fiber, combining multiplexer and demultiplexer functions for DWDM communication systems.
Where is GEZHI DWDM Mux Demux manufactured?
GEZHI DWDM Mux Demux is manufactured in China.
Are GEZHI DWDM Mux Demux products certified?
Yes, GEZHI DWDM Mux Demux products are certified by CE RoHS and ISO9001.
What is the minimum order quantity?
The minimum order quantity for GEZHI DWDM Mux Demux is 1.
What types of optical signals can be processed?
GEZHI DWDM Mux Demux can multiplex and demultiplex both CWDM and DWDM optical signals.
