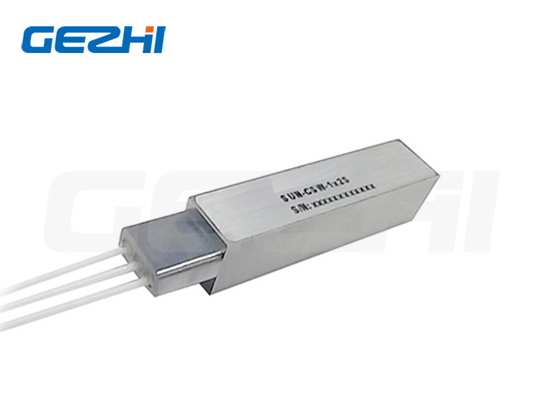

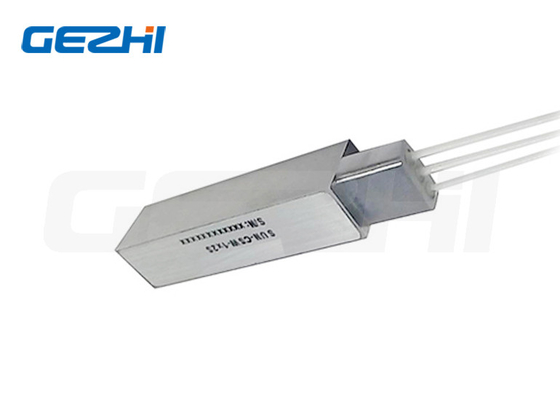

1X2 Magneto Optical Switch Single Ended With SC/APC FC/APC Connector

1X2 Magneto Optical Switch Single Ended With SC/APC FC/APC Connector
1X2 Magneto Optical Switch Single Ended With SC/APC FC/APC Connector 1X2 Magneto Optical Switch Single Ended With SC/APC FC/APC Connector

Large Image :  1X2 Magneto Optical Switch Single Ended With SC/APC FC/APC Connector

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-1x2-MOS200x
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Port: 1x2 Connector: SC/APC FC/APC Or Customized
Fiber Length: 0.5m Or Customized Fiber Type: G657A1
Warranty: 3 Years Application: Test & Measurement
High Light:

1X2 Magneto Optical Switch

,

Single Ended Magneto Optical Switch

,

FC APC Fiber Optical Switches



Product Overview of 1x2 Magneto Optical Switch

High quality 1X2 Magneto-Optical Switch Single-ended

Magneto Optical Switch Single Stage 1X2

1X2 Magneto-Optical Switch Single stage features fast response and ultra-high reliability.These Fiber Optic switches are designed to meet the most demanding optical switching applications. 1X2 Magneto-Optical Switch(Single mode 1550nm) is is applicable for optical fiber communication networks and measurement instruments.



Features & Applications of 1x2 Magneto Optical Switch

Features
♦ Low voltage drive
♦ High reliability
♦High switching speed
♦ Better durability
♦ Fail-safe latching

Applications
♦ Optical channel blocking
♦ Fiber-optics sensing system
♦ Configurable Add/Drop
♦ System monitoring,Test&measurement





Specifications of 1x2 Magneto Optical Switch

Parameters Unit 1x2 Single-ended
Wavelength Range nm 1520~1580
Test Wavelength nm 1550
Insertion Loss 2, 3 dB 1.0
Return Loss 2, 3 dB ≥50
Crosstalk 2 dB ≥40
PDL dB ≤0.2
Repeatability dB ≤±0.01
Operating Voltage V 5.0
Durability Cycles ≥ 30 Bllions
Switching Time μs ≤100
Switching Type n/a Latching
Optical Power mW ≤500
Operating Temperature ℃ –5~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Fiber Type   G657A1
Dimension mm (L )39x(W)9x(H)9.5





Magneto Optical Switch Single Stage 1X2 – Optical Route



Bidirectional

end 1x2 biidi.jpg





Unidirectional

end 1x2 uni.jpg



Odering Information of 1x2 Magneto Optical Switch
Type Fiber Type Operating Voltage Test Wavelength Tube Type

Fiber Length

(Include connector)

 Connector

1X2U/S:

Unidirectional

(1X2)

2X1U/S:

Unidirectional

(2X1)

SM:

SM, 9/125

X:

Others







5:

5.0V



1550:

1550nm

X:

Others

25:

250um

90:

900um

X:

Others



05:

0.5m±5cm

10:

1.0m±5cm

15:

1.5m±5cm

X:

Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

X: Other



FAQ
Q1:Can I have a sample order? What is your MOQ of 1x2 Magneto Optical Switch?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of 1x2 Magneto Optical Switch?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time of 1x2 Magneto Optical Switch?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
