| Product Name: | CATV Overlay Multiplexers | Port: | 1x16 |
|---|---|---|---|
| Connecctor: | LC/UPC SC/APC Or Customized | Operating Temperature: | -20~+75°C |
| Warranty: | 3 Years | Application: | CATV System |
Product Overview of CATV Overlay Multiplexers

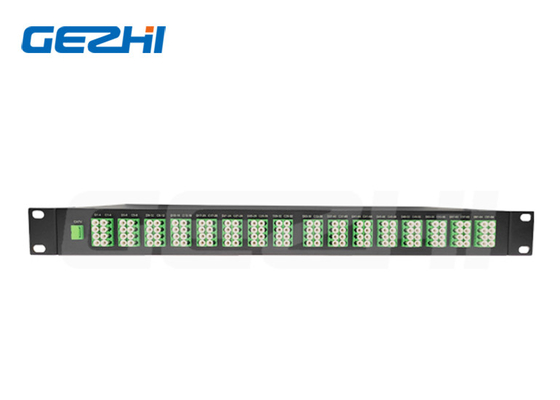

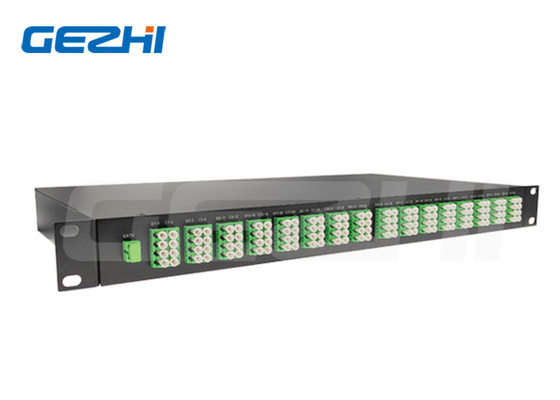

FTTH High reliability stability 1x16 CATV Overlay Multiplexers with Rack-mount
Features & Applications of CATV Overlay Multiplexers
|
Features High stability
|
Applications Fiber to the Home (FTTH) systems
|
Specifications of CATV Overlay Multiplexers
| Parameter | Specification | ||||
| Port | 1x8 | 1x16 | 1x32 | 1x64 | |
| Insertion Loss (dB) | CATV IN | ≤12 | ≤15.2 | ≤18.5 | ≤21.5 |
| DATA IN | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Operating Wavelength (nm) | Common | 1260~1620 | |||
| CATV IN | 1540~1620 | ||||
| DATA IN | 1260~1360; 1460~1500 | ||||
| Isolation (dB) | CATV IN | ≥30 | |||
| DATA IN | ≥15 | ||||
| Directivity (dB) | ＞50 | ||||
| Return Loss(dB) | ＞45 | ||||
| Maximum Power Handling (mW) | 300 | ||||
| Opterating Temperature (℃) | -20~+75 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
CATV Overlay Multiplexer diagram
Odering Information of CATV Overlay Multiplexers
| Model | Configuration | Package type | Cable type | Fiber length | Connector |
|
CATV
|
08WDM=08 Port COM & DATA IN 16WDM=32 Port COM & DATA IN 32WDM=64 Port COM & DATA IN 64WDM=64 Port COM & DATA IN S=Specify
|
A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x18mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack S=Specify |
00=None 09=900um loose tube S=Specify |
00=None 05=0.5m 10=1.0m |
00=none MPO=MPO
|
