Product Details:
Payment & Shipping Terms:
|
| Connector Type: | LC To ST | Fiber Length: | 1m Or Customized |
|---|---|---|---|
| Wavelength: | 1310,1550nm Or Customzied | Cable Jacket: | LSZH |
| Fiber Type: | G657A1 | Application: | CATV System |
Product Overview

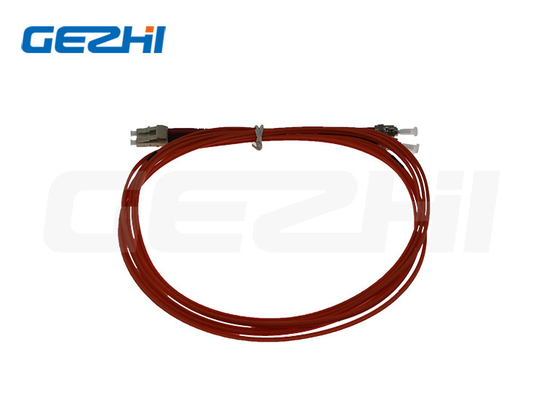

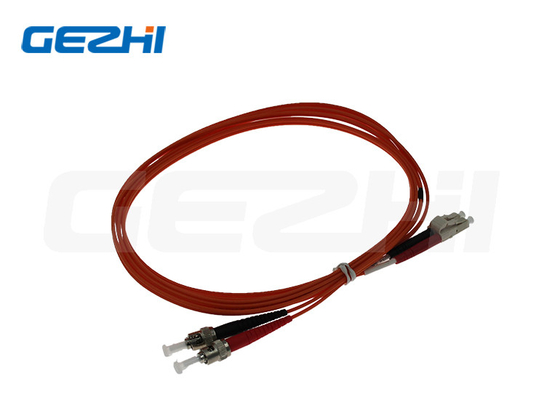

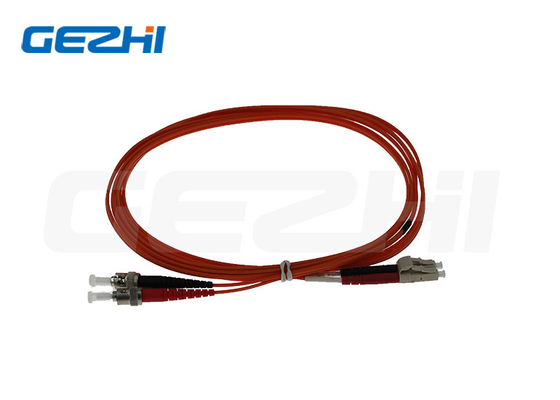

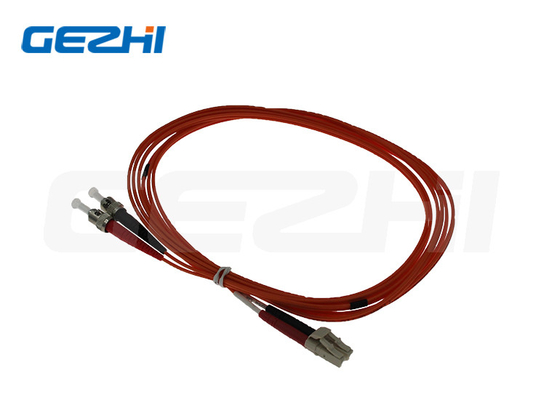

LC to ST Duplex Fiber Optical Patch Cord for Optical Sensor
Fiber Patch Cord
Fiber Optic Patch Cords,as an important component commonly used in fiber-optic networks, high-quality fiber patch cords are essential for any high-performance fiber optic network.We offer an extensive line of LC to ST 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different lengths, jacket materials,and polish. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality. This provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks.
Features & Applications
| Features | Applications |
|
Low insertion loss High back reflection loss Stable capability and high reliability Excellent mechanical capability The ideal solution for high-speed data transmission 100% inspected for optical characteristics before shipment |
Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication Other Indoor networks & telecommunications |
Specifications
| Fiber Type | 9/125µm Singlemode | Fiber Count | Duplex |
| Connector Type | LC to ST | Polish | APC UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH | Wavelength | Customized |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
Other Connectors
High Quality & Stability Material
|
|
|
