Product Details:
Payment & Shipping Terms:
|
| Cable Jacket: | PVC/LSZH | Diameter: | 3.0mm |
|---|---|---|---|
| Fiber Mode: | 9/125 μm | Fiber Count: | Simplex |
| Connector: | SC/UPC Or Customized | Insertion Loss: | ≤0.25 DB |
Product Overview

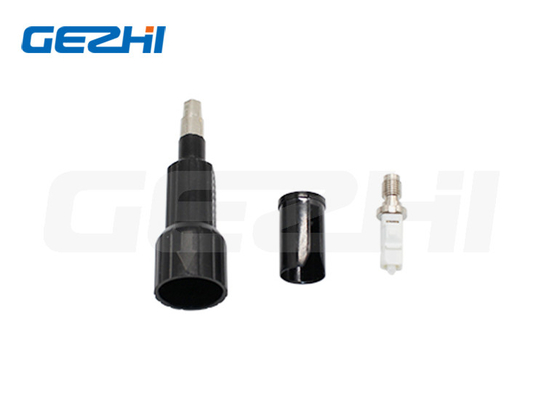

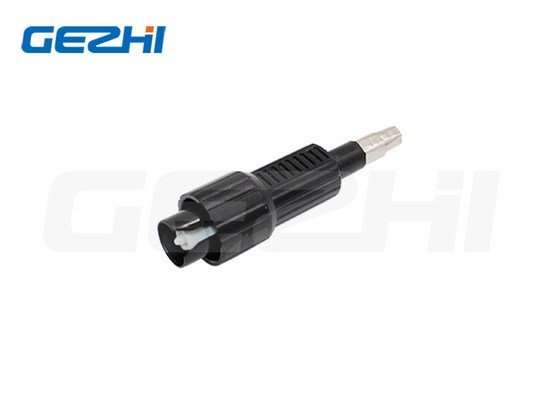

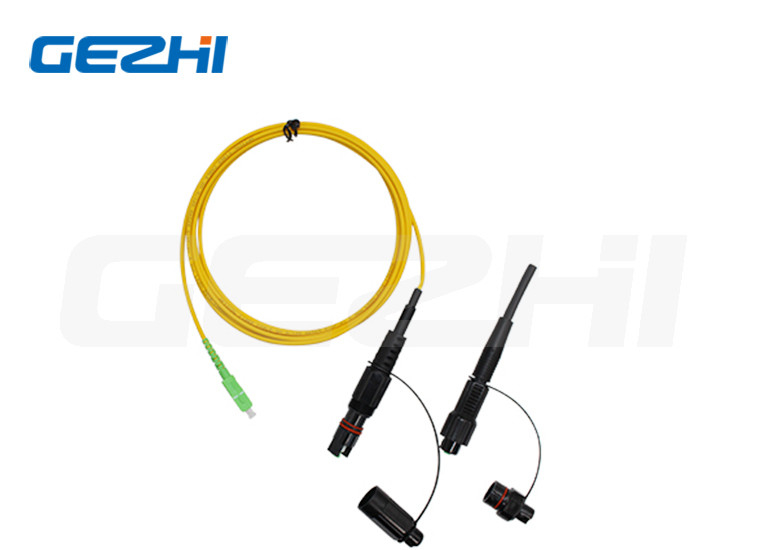

SC 9/125μm Simplex Fiber Optic Waterproof Patch Cord
Fiber Waterproof Patch Cord
Waterproof Fiber Optic Patch Cord is for CPRI application,that is widely used in 4G, 5G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities. Our Waterproof Fiber Optic Patch Cord, with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. These patch cords are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.
Features & Applications
| Features | Applications |
|
♦High return loss, low insertion loss ♦Good interchangeability and durability ♦High stability and reliability ♦Complies with Telcordia, GR-326 core,and RoHS standards ♦Multimode (MM) based on 50/62.5-125um fiber ♦Ceramic ferrule |
♦Fiber optic communication network ♦Optical Distribution Frame ♦CATV ♦Fiber instruments ♦Metro and Local Area Networks ♦Spectral measurement ♦Data processing networks |
Specifications
| parameter | SC Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
