SC To LC Duplex OM4 Fiber Patch Cord for Data Center

Brand Name:	GEZHI or OEM
Model Number:	GZ-OM4100x
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Name:

OM4 Patch Cord

Core Quantity:

Connector Type:

LC To SC

Ferrule Materials:

Ceramic

Jacket Materials:

LSZH

Application:

Data Center

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

Data Center Fiber Patch Cord

OM4 Fiber Patch Cord

Product Description

Product Overview

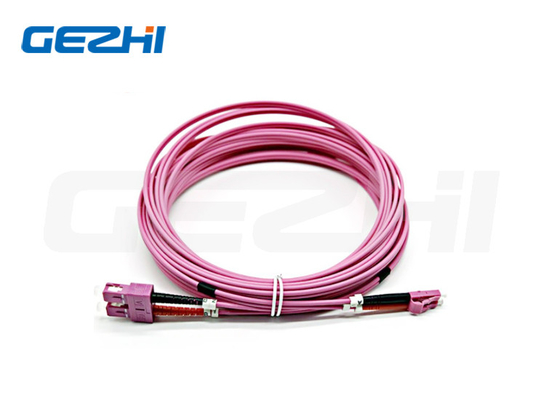

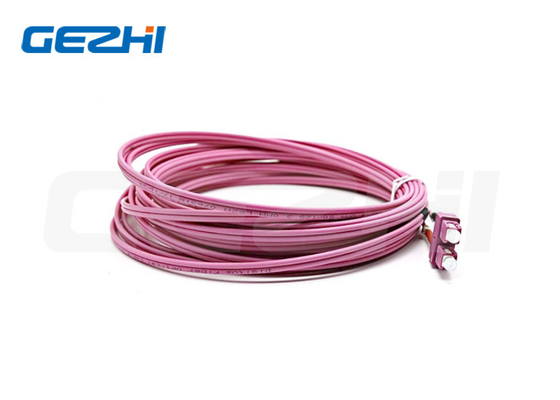

SC To LC Duplex OM4 Fiber Patch Cord for Data Center

OM4 Patch Cord

LC to SC duplex OM4 multimode fiber optic patch cable is laser-optimized, high bandwidth 50µm multimode fiber (LOMMF) cable for use with 40G/100G Ethernet applications. This LC to SC OM4 fiber patch cable features an extremely high bandwidth of 4700MHz*km, providing more than double times bandwidth over 50/125µm 10G OM3 multimode fiber -2000MHz.km. The OM4 fiber patch cable was explicitly developed for VSCEL laser transmission and allowed 40G link distances of up to 150 Meters or 100G link distances of up to 100 Meters. This cable is entirely backward compatible with your existing 50/125 equipment as well as with 10 Gigabit Ethernet applications. OM4 fiber patch cable gives the cabling infrastructure user better performance to support longer distances or more connections. It provides a cost-effective way of avoiding expensive single-mode 40G/100G transceiver optics.

Features

• Low insertion loss
• High back reflection loss
• Provides an upgrade path from 10 Gbps to 40 Gbps and beyond
• Low-Smoke, Zero Halogen (LSZH) jacket
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

Applications

•Gigabit Ethernet
•LAN & WAN
•Telecommunication networks
•Data center

Specifications

Item	Parameters
Fiber Type	OM4
Connector Type	LC to SC
Jacket Materials	LSZH
Ferrule Materials	Ceramic
Core Quantity	2
Insertion Losss(dB)	≤ 0.2dB
TIA/EIA-455-107	UPC
Return Loss(dB)	≥35dB
Exchangeability	≤ 0.3dB
Operating Temperature (° C)	-40~ + 85
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag

FAQ

Q1:Can I have a sample order? What is your MOQ of OM4 Patch Cord?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of OM4 Patch Cord?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of OM4 Patch Cord?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
