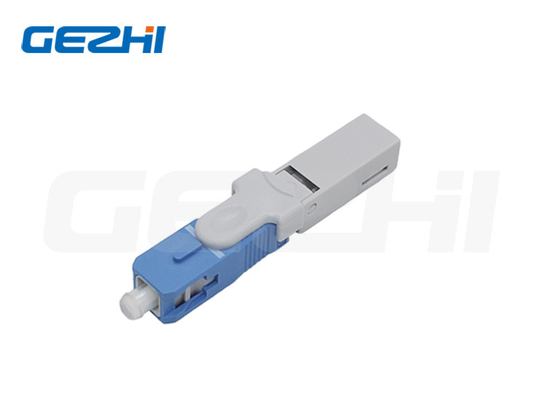

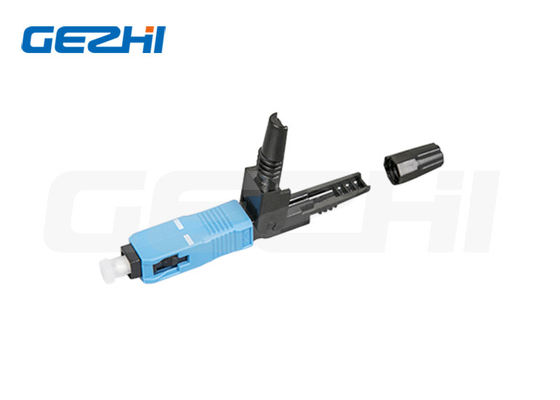

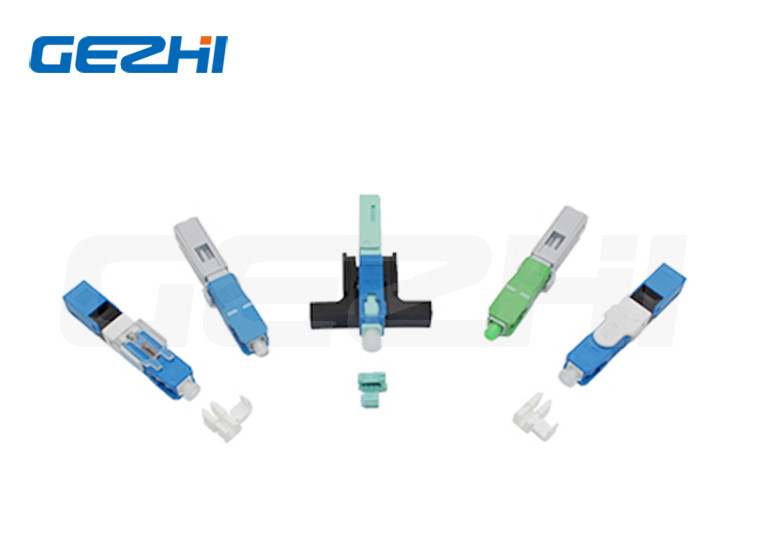

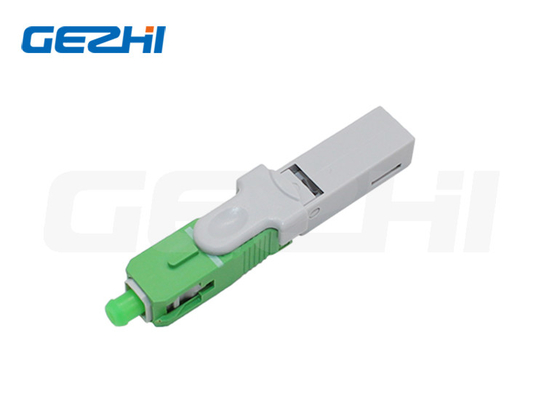

SC Pre-embedded Fast Fiber Optical Connector for Test Equipment

Large Image : SC Pre-embedded Fast Fiber Optical Connector for Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	GZ-FOC100x

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100000Channel per month

Contact Now

Detailed Product Description

Cable Diameter:	2.0/3.0mm Or 3.0*2.0mm	Insertion Loss:	≤0.3dB
Durability:	>1000times	Operating Temperature:	-40~85°C
Anti-Tensile Force (N):	60N

Product Overview

SC Pre-embedded Fast Fiber Optical Connector for Test Equipment

Fiber Connectors

Pre-embedded Fiber Fast Connector is your great solution for FTTH fiber terminal and field assembly. lt adopts the pressing welding structure method to make installation more easier and stable to connect. The short screwed boot is designed for locking fiber and cable simultaneously. lt is easy to use and convenient to transport. Our SM Fast Connector is a flexible and popular solution, catering for 0.9mm diameter slim fiber cable.

Features

* Pressing welding structure & V groove alignment

* Up-down opening wiring & pressing clip structure

* Short screw boot for great locking function

* Easy to carry & convenient to transport

* Use in FTTH, CATV, LAN & CCTV applications

* SC UPC fast connector for 0.9mm cable with addition boot

Specifications

Parameter	SC Connector
	SM			MM
	PC	UPC	APC	PC/UPC
Insertion loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return loss	≥50dB	≥50dB	≥50dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

Dimensions

FAQ

Q1:Can I have a sample order? What is your MOQ of Patch Cord?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of Patch Cord?

A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.

Q4: What is your warranty time of Patch Cord?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
