4 Or 8 Port Wavelength Multiplexer WM1 NG-PON2 For PON System

4 Or 8 Port Wavelength Multiplexer WM1 NG-PON2 For PON System
4 Or 8 Port Wavelength Multiplexer WM1 NG-PON2 For PON System

Large Image :  4 Or 8 Port Wavelength Multiplexer WM1 NG-PON2 For PON System

Product Details:
Place of Origin: China
Brand Name: GEZHI
Certification: CE RoHS,ISO9001
Model Number: GZ-WM100x
Detailed Product Description
Port: 4 ,8 Insertion Loss: ≤2.0dB
Connetor: SC/UPC Or Customized Storage Temperature: -40 ~ +85(°C)
Operating Temperature: -5~+75(°C) Application: PON Sytem
High Light:

8 Port Wavelength Multiplexer


Wavelength Multiplexer for PON System

Product Description:

4 or 8 Port Wavelength Multiplexer WM1 NG-PON2 for PON System


NG-PON2 (also known as TWDM-PON), is a telecommunications network standard for a passive optical network (PON). Its capable of total network throughput of 40 Gbit/s, corresponding to up to 10 Gbit/s symmetric upstream/downstream speeds available at each subscriber.

GEZHI Photonics supplying WM1 and CEx modules that fit the NG-PON2 requirements. The Wavelength Multiplexer (WM1) is a passive device used to support Next Generation PON (NG-PON2). it combines and separates the C and L band DWDM bi-directional transmission.



◆Low Insertion Loss

◆High channel isolation

◆Excellent Environmental





◆FTTH access networks


Technical Parameters

Parameter Unit Value
Center Wavelenth Port 1 1532.68 / 1596.34
Port 2 1533.47 / 1597.18
Port 3 1534.25 / 1598.04
Port 4 1535.04 / 1598.89
Passband nm ±0.12
Insertion Loss dB ≤2.0
Ripple dB ≤0.4
Isolation dB Adjacent Channel ≥30
dB Non-Adjacent Channel ≥36
dB Upgrade Channel ≥11
Directivity dB ≥55
Return Loss dB ≥50
Polarization dependent loss dB ≤0.3
Polarization Mode dispersion ps ≤0.2
Operating Temperature -5~+75
Storage Temperature -40~+85

Note: Customized Specification is available.

The above specifications is include connector loss.

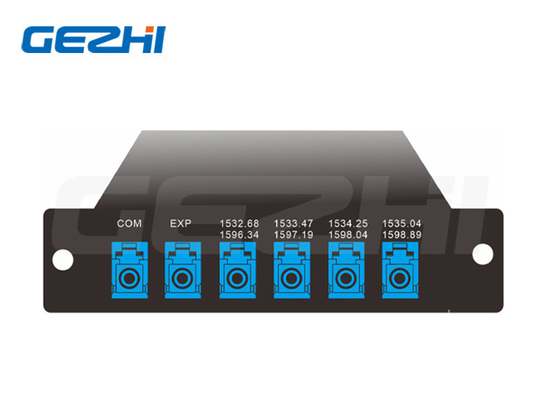

Wavelength Multiplexer WM1 diagram

4 Or 8 Port Wavelength Multiplexer WM1 NG-PON2 For PON System 0



Odering Information

Model Channel Configuration Package type Cable type Fiber length Connector







A0=ABS box 80x60x12mm

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x15mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack



09=900um loose tube








Q1:Can I have a sample order? What is your MOQ of WM1?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of WM1?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time of WM1?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
