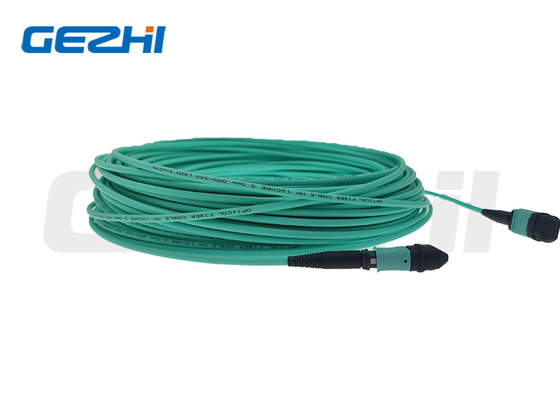

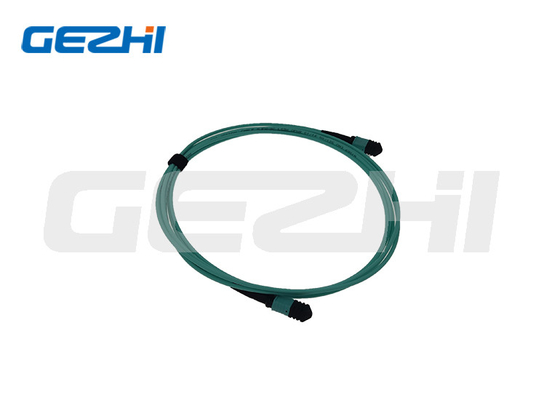

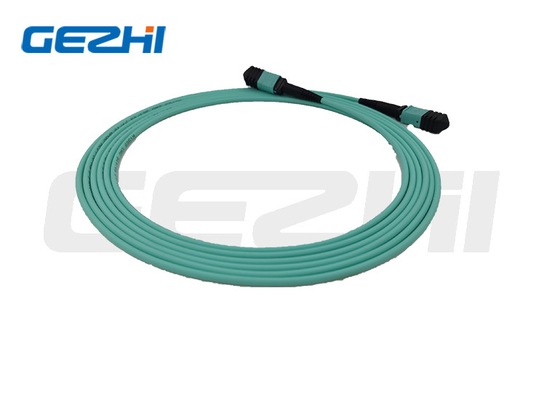

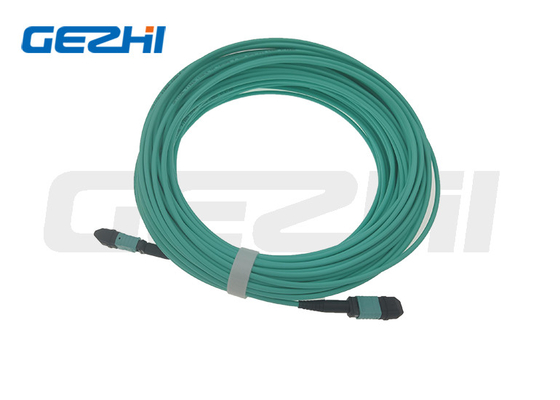

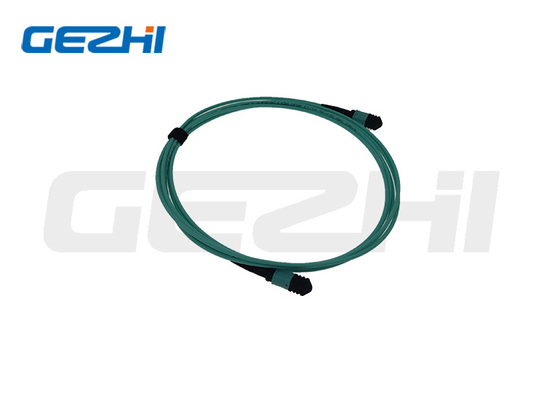

Low Loss Lc Om3 Patch Cord Customized Lengths With Mpo Connector

Name: Low Loss Lc Om3 Patch Cord Customized Lengths With Mpo Connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: patch
Price: 744.89 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	patch
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

MPO OM3

Brand Name:

OEM

Length:

Customized Lengths(1m/2m/3m...+1

MOQ:

10 Pcs

Connector:

MPO/MT

Type:

Fiber Optic Patch Cord

Fiber Type:

SM/MM

Package:

Plastic Bag

Function:

Distribution Fiber System (FTTH)

Warranty Time:

24 Month

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

low loss om3 patch cord

lc om3 patch cord

customized length lc patch cord

Product Description

Factory LC MPO OM3 Patch Cord Fiber Optic Patch

MPO OM3 Patch Cord

Features

Single mode and Multimode (Flat/Round) available
High fiber density (maximum 24 fibers)
Fiber in single connector: 4, 8, 12 24
Insert/Pull latching c1.

small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.onnector

High reflection loss with APC

Applications

FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

Active Device Termination

Premise Installations
Telecommunication and Data processing Networks
Video transmission, Data transmission

Specification

Item		Unit	Parameter
MPO/MTP Connector		-	Standard SM MT Ferrule	Low Loss (Elite) SM MT Ferrule	Standard MM MT Ferrule	Low Loss MM MT Ferrule
Insertion Loss	Typical	(dB)	0.35	0.20	0.35	0.20
	Maximum	(dB)	0.75	0.35	0.60	0.35
Return Loss		(dB)	≥60 for APC (8 Angle Polish)		≥20 for PC
		(dB)	≥50 for PC		-
Male/Female		(dB)	Male: with Pins, Female: without Pins
Tensile Strength		(dB)	≤0.3(Max 66N)
Vibration		(dB)	≤0.3(10~55Hz)
Thermal Cycle		(dB)	≤0.3(-40~75℃,21Cycles)

Order Information

Type

Mode

Fiber Count

Polarity

Grad

Connector A

Connector B

Polishing

Length

PCMPO

2=OS2

3=OM3

4=OM4

5=OM5

08=8 Fibers

12=12 Fibers

24=24 Fibers

36=3x12 Fibers

48=4x12 Fibers

96=8x12 Fibers

144=12x12 Fibers

A=Type A

B=Type B

C=Type C

S=Standard

E=Elite

M=Male

F=Female

M=Male

F=Female

P=UPC

A=APC

01=1M

02=2M

05=5M

10=10M

S=Specify

Application Diagram

Low Loss Lc Om3 Patch Cord Customized Lengths With Mpo Connector 0

Certificates

Low Loss Lc Om3 Patch Cord Customized Lengths With Mpo Connector 2

Packing & Delivery

Low Loss Lc Om3 Patch Cord Customized Lengths With Mpo Connector 3

AFQ

Q1:About the price?

A1:We usually quote within 12 hours after we confirm the technical data of your products.

Q2: What's the payment method?

A2: We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

Q3: What are your terms of payment?

A3: 30% in advance,and 70% before shipment

Q4: How to ship the items to me?

A4: Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Q5: How long is your delivery time?

A5: The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
