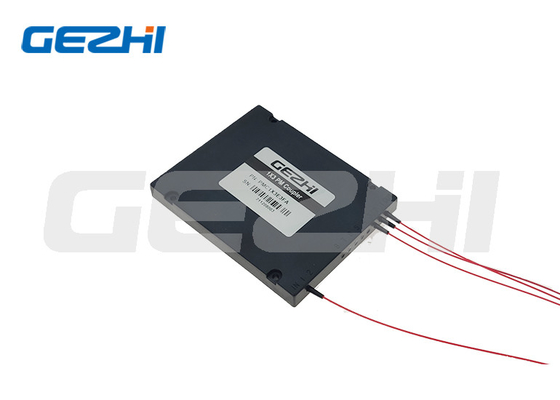

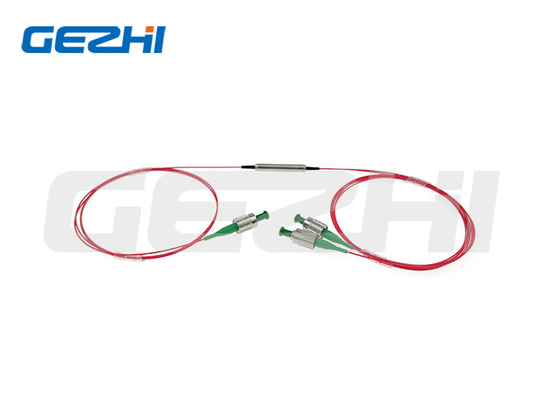

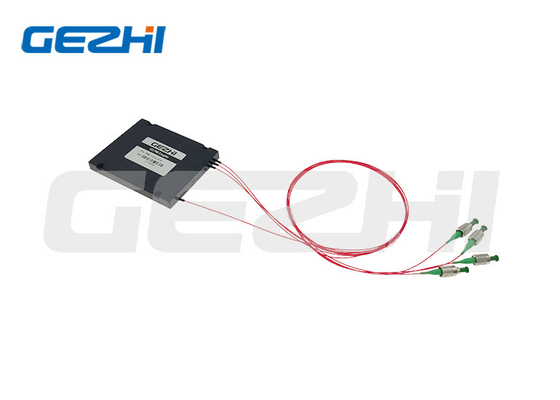

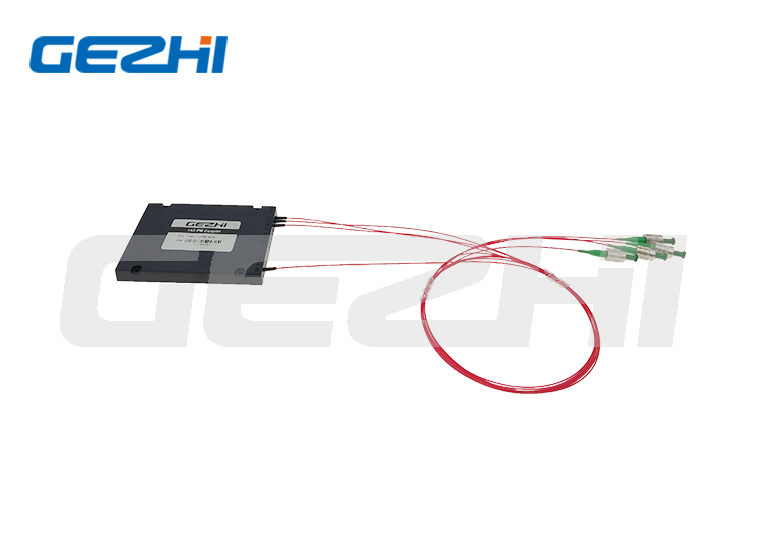

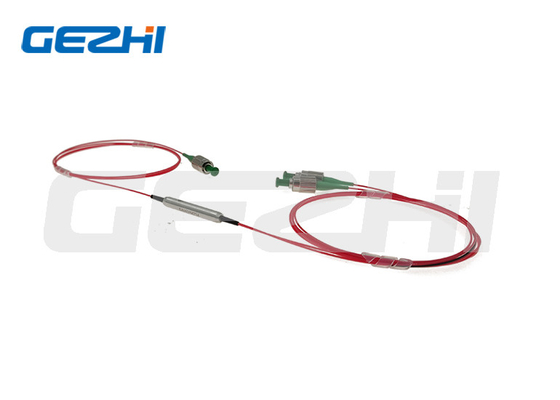

Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber

Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber
Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber

Large Image :  Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Return Loss: > 45 Fiber Type: PM1550-XP Panda Fiber
Package Dimensions: Ø5.5 X L35 Operating Temperature: 0 ~ +70
Cable Color: White Or 12 Colors Pigtail Length: 1M Or Customized
Connector Type: SC FC LC ST MU Etc Warranty Time: 3 Years
High Light:

customized dwdm optics

,

polarization maintaining fiber dwdm optics

Customized Polarization Maintaining DWDM For polarization maintaining fiber

Product Description

The Polarization Maintaining Filter DWDM is characterized with low IL, high return loss, high extinction ratio and excellent environmental stability and reliability. They are ideal for polarization maintaining fiber amplifiers, DWDM network, and high-speed communication system and instrumentation applications.

Features

Low insertion loss

High Extinction Ratio
High channel isolation
High stability and reliability

Application

Channels add / drop

DWDM network
Fiber optical amplifier
Fiber Optic System

Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber 0

Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber 1Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber 2Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber 3

Specification

Parameters Unit Value
Center Wavelength nm 532, 633
Operating Wavelength Range nm ±10
Typ. Insertion Loss at 23℃ dB 1.3
Max. Insertion Loss at 23℃ dB 1.5
Min. Return Loss dB 50
Typ. Extinction Ratio at 23℃ dB 24
Min. Extinction Ratio at 23℃ dB 22
Fiber Type for Input & Output / SM→SM or SM→PM or PM→PM
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Operating Temperature -5~+70
Storage Temperature -40~+85
With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.


Test Environment

Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber 4



Our Certificate

Customized Polarization Maintaining Dwdm Optics For Polarization Maintaining Fiber 5



More Questions:

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.



2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.



3. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.



4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.



5. What is your warranty time
We promise 3 years warranty for all products shipped from us.



6. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.



7. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.
