Product Details:
Payment & Shipping Terms:
|
| Core: | 12 | Sheath Material: | PVC |
|---|---|---|---|
| Application: | Communication | Type: | Multi-mode Fiber |
| Connection Structure: | LC,Sc,FC,St | ||
| High Light: | fiber optic pigtail single mode,os2 fiber optic pigtail single mode,lc upc single mode fiber optic pigtails |
||

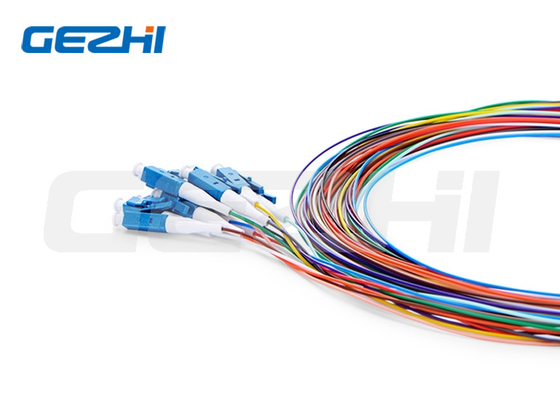

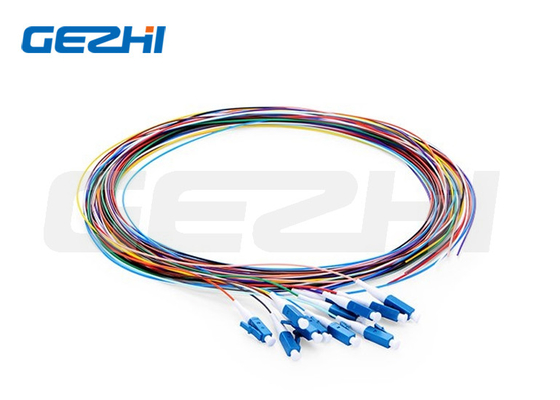

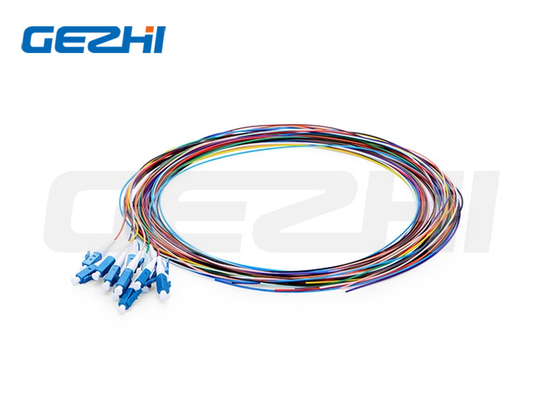

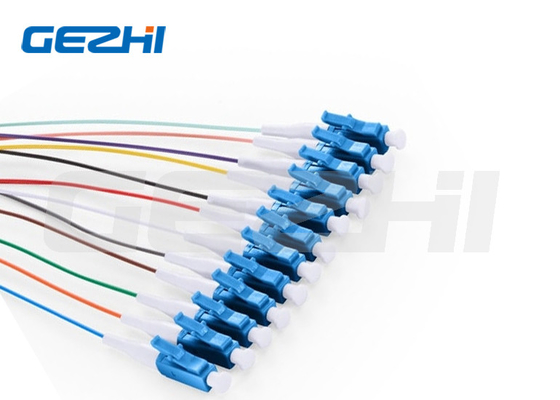

1m (3ft) LC UPC 12 Fibers OS2 Single Mode Unjacketed Color-Coded Fiber Optic Pigtail
Product Description
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
1.High-precision Components Guarantee Reliable Transmission
The pigtail combines premium zirconia ferrules and rugged composite hardware to provide the optical performance, durability, and repeatability necessary for today's network applications.
2.Perfect for High Density Splicing Applications
G.657.A1 Low Loss Fiber & 10mm Min. Bend Radius, provide improved flexibility for limited space setups.
Specifications
| Connector A | LC |
| Connector B | Unterminated |
| Fiber Mode | 9/125 μm |
| Fiber Count | 12 |
| Fiber Grade | G.657.A1 |
| Minimum Bend Radius | 10 mm |
| Polish Type | UPC |
| Cable Diameter | 0.9 mm |
| Wavelength | 1310 nm/1550 nm |
| Pigtail Color | 12-Color |
| Insertion Loss | ≤0.3 dB |
| Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB |
| Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C |
| Storage Temperature | -45~85°C |
