Product Details:
Payment & Shipping Terms:
|
| Connector A: | LC | Connector B: | Unterminated |
|---|---|---|---|
| Fiber Mode: | 9/125 μm | Fiber Count: | 12 |
| Fiber Grade: | G.657.A1 | Minimum Bend Radius: | 10 Mm |
| Polish Type: | APC | Cable Diameter: | 0.9 Mm |
| Wavelength: | 1310 Nm/1550 Nm | Pigtail Color: | 12-Color |
| Insertion Loss: | ≤0.3 DB | Interchangeability: | ≤0.2 DB |
| Return Loss: | ≥60 DB | Vibration: | ≤0.2 DB |
| Operating Temperature: | -40~75°C | Storage Temperature: | -45~85°C |
| High Light: | 1meter fiber optic pigtail multimode,lc apc fiber optic pigtail multimode,3 feet pigtail om2 |
||

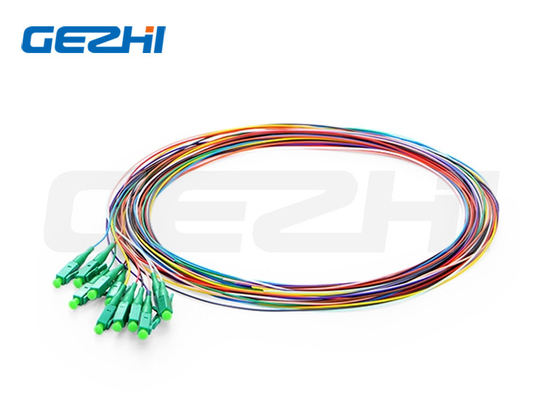

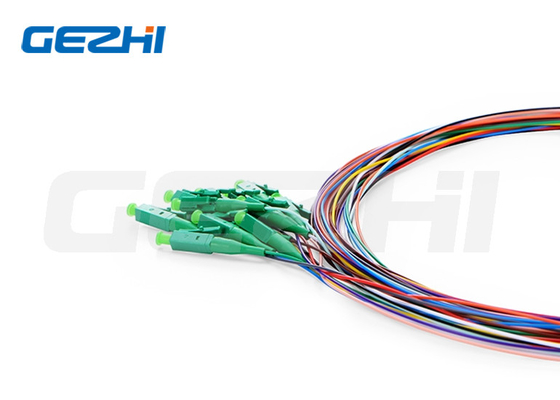

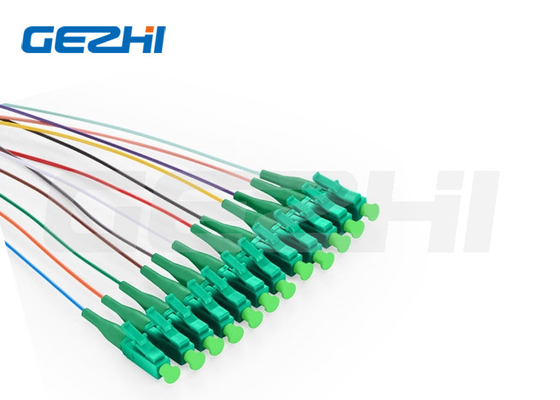

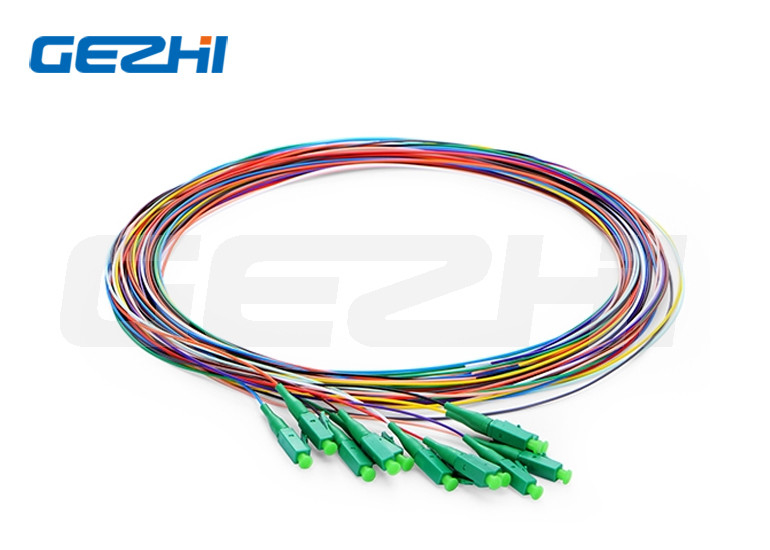

1m (3ft) LC APC 12 Fibers OS2 Single Mode Unjacketed Color-Coded Fiber Optic Pigtail
Product Description
12 Fibers LC/APC Single-Mode Color-Coded Fiber Optic Pigtail, Unjacketed
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
The pigtail combines premium zirconia ferrules and rugged composite hardware to provide the optical performance, durability, and repeatability necessary for today's network applications.
