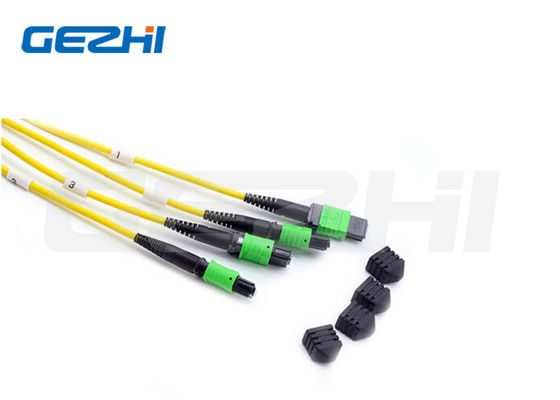

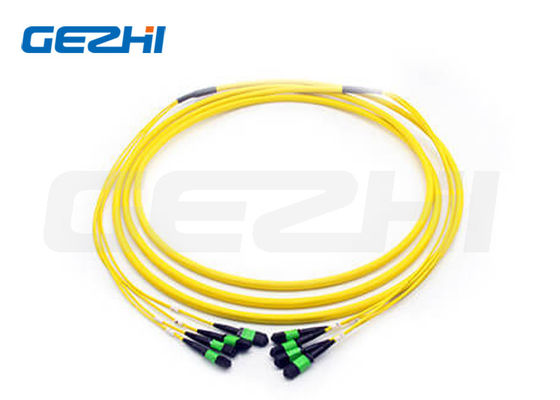

48F MPO Trunk Cable 3.0mm LSZH Fiber Optic Patch Cable for FTTX and Data Centers

Name: 48F MPO Trunk Cable 3.0mm LSZH Fiber Optic Patch Cable for FTTX and Data Centers
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 48F MPO(Female) - MPO(Female) 3.0mm Trunk Cable
Price: 37.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	48F MPO(Female) - MPO(Female) 3.0mm Trunk Cable
MOQ:	1pc
Price:	US$18-US$56
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

48F MPO(Female) - MPO(Female) 3.0mm Trunk Cable

Connector:

MPO(Female) To MPO(Female)

Fiber Cores:

48F

Certification:

Telcordia GR-1435-CORE Compliant

Application:

FTTX+LAN,Testing Equipment,Telecommunication Networks,Etc

Durability:

<0.3dBtypical Change, 200 Matings

Interchangeability:

≤0.2dB

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

48F Fiber Optic Patch Cable

Product Description

48F MPO(Female) - MPO(Female) 3.0mm LSZH Fiber Optic Patch Cable / Trunk Cable

This high-performance 48-fiber MPO patch cable features factory pre-terminated connectors with comprehensive testing and documentation. Designed for efficient data center deployment with LSZH (Low Smoke Zero Halogen) cable construction for enhanced safety.

Key Advantages

Premium Quality: Factory pre-terminated, tested, and packaged with detailed test reports for long-term documentation and quality assurance
Space Optimization: Compact diameter reduces cable volume and improves air conditioning efficiency in data centers
Rapid Deployment: Plug-and-play design enables immediate installation, significantly reducing setup time

MPO Connector Specifications

Specification Items	Single Mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion Loss (MPO) (IEC 61300-3-34)	Standard: ≤0.75dB (max), ≤0.35dB (typical) Super Low: ≤0.35dB (max), ≤0.20dB (typical)	Standard: ≤0.6dB (max), ≤0.35dB (typical) Super Low: ≤0.35dB (max), ≤0.20dB (typical)
Return Loss (MPO)	≥60dB (8-degree polishing)	≥25dB
Durability	<0.3dB typical change, 200 matings
Interchangeability	≤0.2dB
Tensile Strength	>70N
Operating Temperature	-40°C to +85°C

Cable Parameters - Microfiber Cable

Fiber Count	Flat 24	36, 48 & 72	72	96	144
Subunit Diameter (mm)	2.9±0.1	2.9±0.1	2.9±0.1	2.9±0.1	2.9±0.1
Cable Diameter (mm)	(4.2±0.3)×(7.6±0.4)	9.0±0.3	11.2±0.3	13.5±0.3	17.5±0.3
Cable Weight (kg/km)	LSZH: 52 / PVC: 44	LSZH: 93 / PVC: 86	LSZH: 106 / PVC: 96	LSZH: 146 / PVC: 135	LSZH: 260 / PVC: 224

Additional Cable Specifications:
Maximum Loading (IEC794-1): Installation 200N / Operation 80N
Temperature Rating (Operation & Storage): -20°C to +70°C

MPO Connector Details & Standards

Connector Type	Standard Reference	Housing Details
MPO Single Mode	IEC 61754-7	SM APC: Green connectors + black boot (Standard Loss MPO) SM APC: Yellow connectors + black boot (Super Low Loss MPO)
MPO Multimode	IEC 61754-7	OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MPO) OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super Low Loss MPO) OM3 & OM4 PC: Heather Violet connectors + black boot (Standard Loss MPO)

Length Tolerance

Overall Length (L) in meters	Length Tolerance in centimeters
0 < L < 1	+5 / -0
1 < L < 10	+10 / -0
10 < L < 40	+15 / -0
40 < L	+0.5% × L / -0

Pre-terminated MPO Technology - Polarity

Our MPO cables incorporate advanced polarity management systems to ensure proper fiber alignment and signal transmission integrity in high-density fiber optic applications.
