Created with Pixso. LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use
LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use
  • name
  • name
  • name
  • name
  • name

LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use

Brand Name: GEZHI or OEM
Model Number: Armored Fiber Optic Patch Cable
MOQ: 1pc
Price: US$59-US$118
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Connector Type:
LC To SC
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

armored single mode fiber patch cable

,

3mm single mode fiber patch cable

Product Description

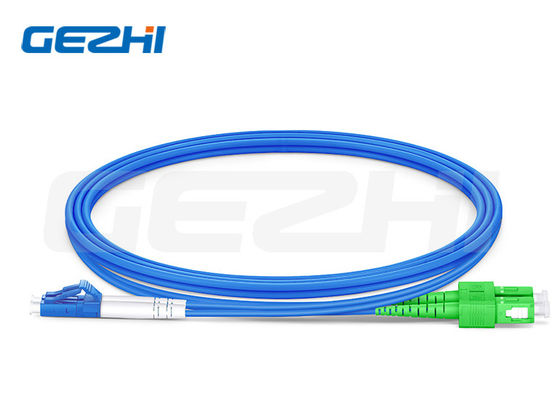

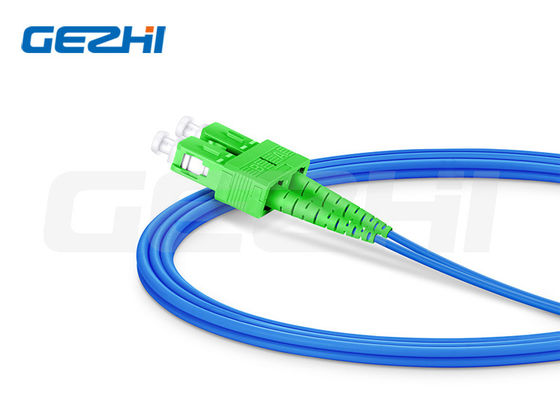

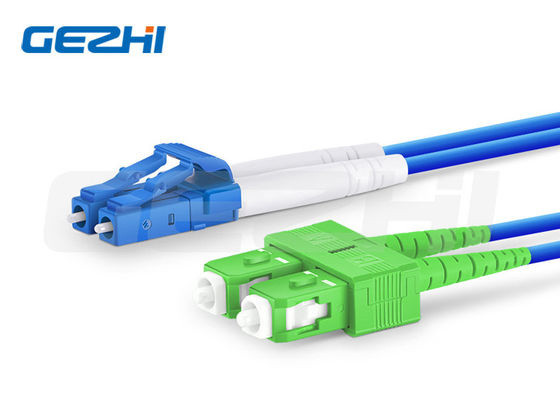

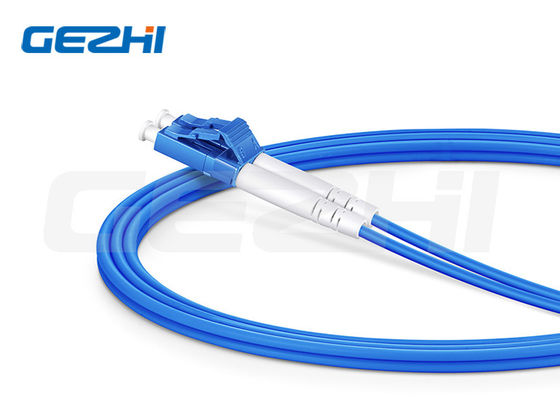

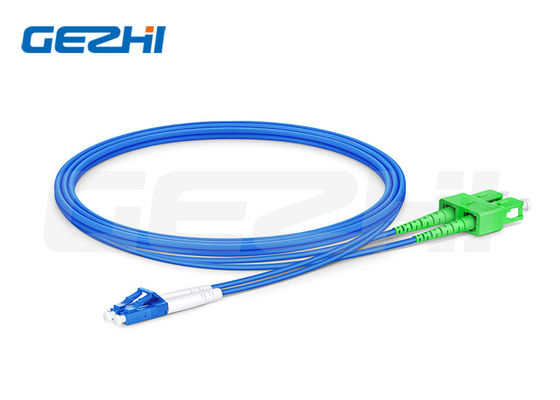

LC UPC to SC APC Duplex OS2 Single Mode Fiber Patch Cable Indoor Armored LSZH 3.0mm
Product Overview
OS2 9/125 Single Mode LC/UPC to SC/APC Duplex Indoor Armored Fiber Optic Cable
Armored fiber optic cable with built-in metal armor provides superior protection compared to standard fiber optic cables. These rugged armored cables enable optical fiber installation in hazardous environments, including areas with dust, oil, gas, moisture, and protection against damage-causing rodents and pests.
Specifications
Connector Type LC to SC Polish Type UPC to APC
Fiber Mode OS2 9/125μm Fiber Count Duplex
Fiber Grade G.657.A1 Min. Bend Radius 10/5D (Dynamic/Static)
Cable Diameter 3.0mm Cable Jacket LSZH
Fiber Cords Structure Single Armored, Stainless Steel Tube Tensile Load 120/225N (Long/Short Term)
Insertion Loss ≤0.3dB Return Loss ≥50dB
Operating Temperature -25 to 70°C (-13 to 158℉) Storage Temperature -25 to 70°C (-13 to 158℉)
Key Features
Carrier-grade Quality
Reduces light loss during cable bending and meets diverse cabling requirements
LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use 0
10/5D Min. Bend Radius
G.657.A1 fiber allows tighter cable bends for flexible routing
LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use 1
Zirconia Ceramic Ferrule
Precision ferrules with up to 500 insertion lifespan
LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use 2
120-225N Tensile Strength
Pull-resistant cable design prolongs service life
LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use 3
Tough Steel Tube Protection
Stainless steel tube prevents fiber breaking and ensures reliable network operation
LC UPC to SC APC Duplex OS2 Single Mode Armored LSZH 3.0mm Fiber Patch Cable for Indoor Use 4
Trampling Resistance
Moisture Resistance
Gas Resistance
Oil Resistance
Rodents/Pests Resistance
