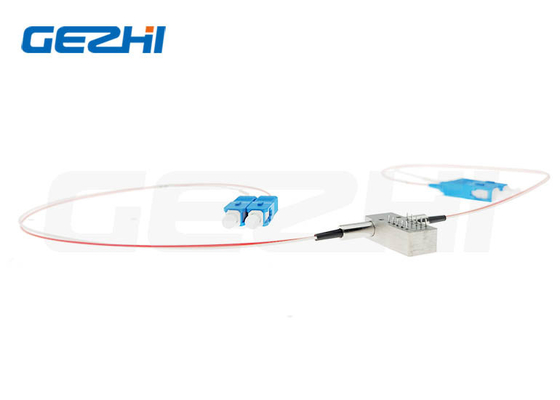

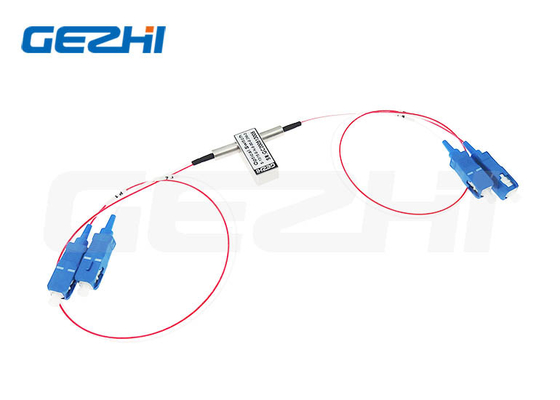

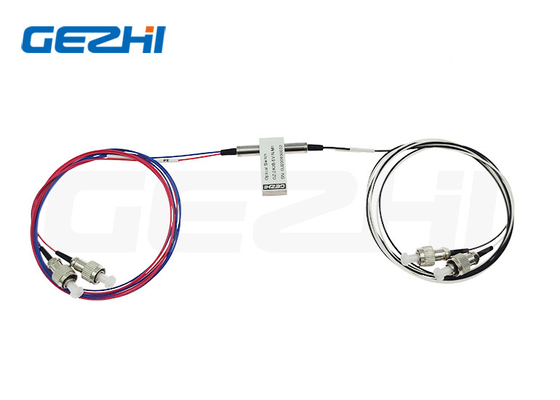

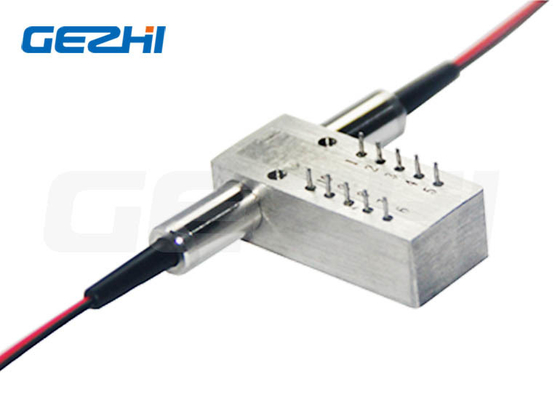

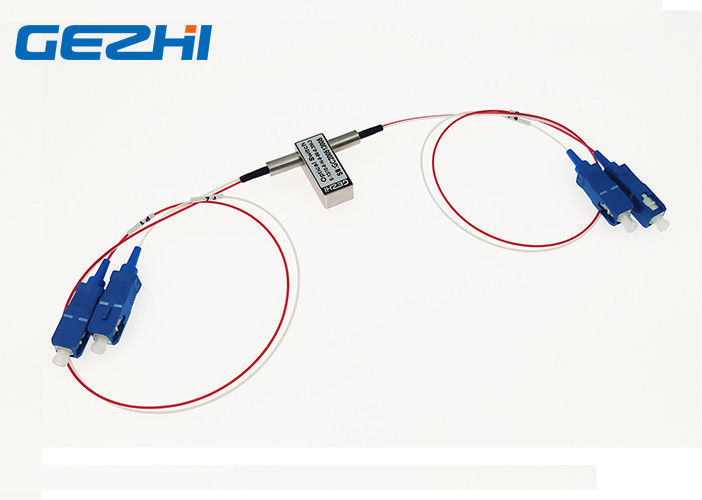

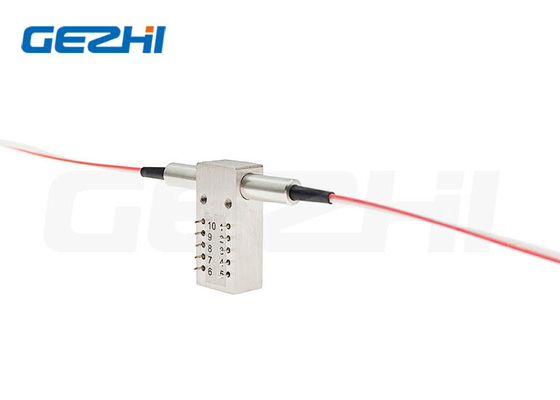

Non Latching Single Mode Fiber Switch 1650nm

Non Latching Single Mode Fiber Switch 1650nm
Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm Non Latching Single Mode Fiber Switch 1650nm

Large Image :  Non Latching Single Mode Fiber Switch 1650nm

Product Details:
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-1x1-13/15NN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Place Of Origin: China Product Name: 2 * 2 Optical Switch
Wavelength: 1260~1650nm Control Type: Non Latching/Latching
Feature: High Reliability Voltage: 5V Or 3V
Connector: LC/UPC, LC/APC, SC/UPC Port: 2x2Full
High Light:

non latching single mode fiber switch

,

1650nm single mode fiber switch

,

optic switch 1650nm



wholesale 2x2B Bypass mechanical Fiber Optical Switch



3-port 10/100M Industrial Switch /Media Converter, with 2x RJ45 ports and 1x optical fiber Uplink port. Rail-type installation.



Non Latching Single Mode Fiber Switch 1650nm 0Non Latching Single Mode Fiber Switch 1650nm 1Non Latching Single Mode Fiber Switch 1650nm 2Non Latching Single Mode Fiber Switch 1650nm 3Non Latching Single Mode Fiber Switch 1650nm 4Non Latching Single Mode Fiber Switch 1650nm 5Non Latching Single Mode Fiber Switch 1650nm 6Non Latching Single Mode Fiber Switch 1650nm 7

Features

  • Industrial design, 2x 10/100M Ethernet RJ45 ports with AutoUplink™ and 1x 100M optical port
  • Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
  • RJ-45 port supports Auto MDI/MDI-X
  • Automatic MAC address learning and aging
  • Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
  • Plug and play, with LED indicators for monitoring power/link/activity, easy to use.
  • Provides DIN35 rail-type installation method
  • Electromagnetic compatibility of up to 4 grade standard
  • IP40 protection class
  • Superior performance, successfully used in industrial field

Applications

  • Optical Network
  • Protection/Restoration
  • Optical Singnal Routing
  • Configurable Optical Add/Drop
  • Transmitter and receiver protection
  • Network Test System





Specification



Parameter Values
Wavelength Range nm 850 1260~1650
Operating Wavelength nm 850 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime Times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85

Above specification are for device without connector.



Type Pin Electric Drive Status Sensor
1×2 channel 1 5 6 10 2-3 3-4 7-8 8-9
Latching P1-P2 V+ GND -- -- Open Close Close Open
P1-P3 -- -- GND V+ Close Open Open Close
Non-latching P1-P2 V+ -- -- GND Open Close Close Open
P1-P3 -- -- -- -- Close Open Open Close



Optical Route

Specifications Voltage Current Resistance
5V latching 4.5~5.5 36~44mA 125Ω
5V non-latching 4.5~5.5 26~32mA 175Ω
3V latching 2.7~3.3 54~66mA 50Ω
3V non-latching 2.7~3.3 39~47mA 70Ω
