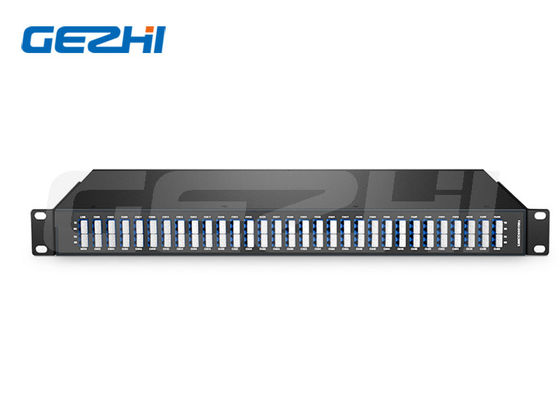

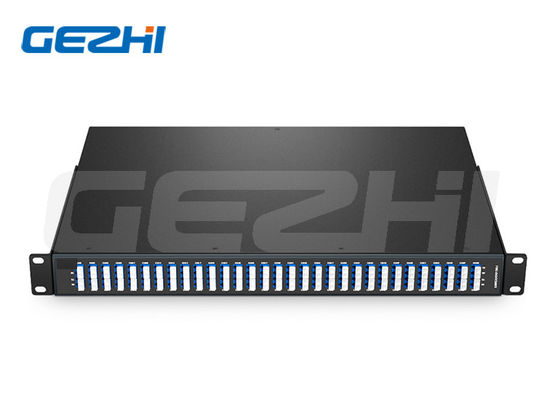

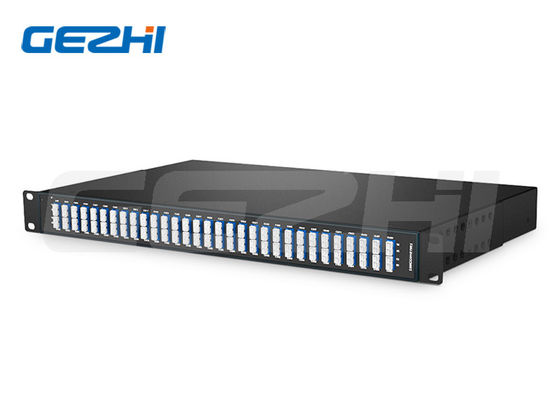

60 Channels Super C-band DWDM Mux Demux Wavelength Division Multiplexer with 1U Rack Mount

Name: 60 Channels Super C-band DWDM Mux Demux Wavelength Division Multiplexer with 1U Rack Mount
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 60 Channels DWDM Mux Demux
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	60 Channels DWDM Mux Demux
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

60 Channels 190.75-196.65THz (1524.50-1571.65nm)

Channel Spacing:

100GHz

Channel Passband:

±12.5GHz

Insertion Loss:

≤6.7dB, 6.0dB Typical

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

60 channels wdm mux

rack mount wdm mux

1u dual fiber dwdm mux demux

Product Description

60 Channels DWDM Mux Demux - LC/UPC Dual Fiber 1U Rack Mount

60 Channels DWDM Mux Demux, Super C-band 100GHz 1524.50-1571.65nm, 6.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount

Product Overview

The 60CH Mux Demux is a high-density, low loss passive DWDM device based on AAWG (Flat-top) technology, suitable for long-haul transmission. This unit functions as either a multiplexer or de-multiplexer and maximizes the capacity of the super C-band range in accordance with ITU-T standards. When used with Gezhi Photonics transponders and amplifiers, it supports various architectures from simple point-to-point to amplified ring configurations.

Key Features

Diversified Ports: CH1-CH60 channel ports for ITU grid DWDM traffic with MON port for optical performance monitoring
Super C-band Technology: Improves system transmission capacity and distance, supporting 120 wavelengths at 50GHz spacing and 80 wavelengths at 75GHz spacing
Fiber Optimization: Maximizes fiber utility in WDM networks by sharing single fiber for multiple data services
Service Flexibility: Supports flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services
Monitoring Capability: Monitor port (1%, 2%, 3%, 5% optional) enables testing of power, wavelength and OSNR without service interruption
Hybrid System Support: Enables CWDM-DWDM integration using 1530nm and 1550nm CWDM channels for cost-effective network expansion
Data Center Interconnect: Seamlessly integrates with transponder, muxponder, amplifier, and third-party WDM products

Technical Specifications

Wavelength	60 Odd Channels 190.75-196.65THz (1524.50-1571.65nm)
Channel Spacing	100GHz
Channel Passband	±12.5GHz
Insertion Loss	≤6.7dB, 6.0dB Typical
Insertion Loss @ 1% Mon TX	≤27dB
Insertion Loss @ 1% Mon RX	≤22dB
Wavelength Accuracy	±50pm
Technology	AAWG (Flat-top)
Adjacent Channel Isolation	≥25dB
Non-adjacent Channel Isolation	≥30dB
Return Loss	≥40dB
Directivity	≥40dB
Polarization Dependent Loss	≤0.5dB
Polarization Mode Dispersion	≤1.0ps
Operating Temperature	-5 to 65℃ (23 to 149°F)
Storage Temperature	-40 to 85℃ (-40 to 185°F)
Net Weight	4.185kg
Dimensions (HxWxD)	1.73"x19"x10.4" (44x481.8x264.1mm)

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome for quality testing. We have no minimum order quantity - 1 piece samples are available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: Normal lead time is approximately 1 week. For large quantities and special products, please check with our sales representative. We maintain stock for some products and can ship within 1-3 days after payment.

Q3: What are the payment terms?

A3: Payment terms include T/T, PayPal, Western Union, cash payment, and ALI.

Q4: What is your warranty time?

A4: 3 years warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
