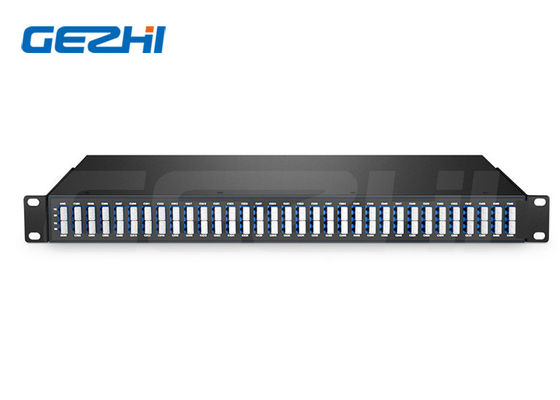

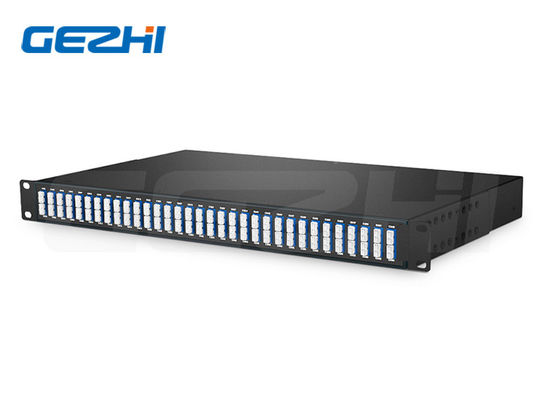

64 Channels Super C-band 75GHz Channel Spacing DWDM Mux Demux for High-Capacity Fiber Networks

Name: 64 Channels Super C-band 75GHz Channel Spacing DWDM Mux Demux for High-Capacity Fiber Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 64 Channels DWDM Mux Demux
Price: 470.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	64 Channels DWDM Mux Demux
MOQ:	1pc
Price:	US$360-US$580
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

64 Channels 191.3625-196.0875THz (1528.87-1566.62nm)

Channel Spacing:

75GHz

Channel Passband:

±31.5GHz

Insertion Loss:

≤6.5dB, 5.8dB Typical

Dimensions (HxWxD):

1.73"x19"x10.4" (44x481.8x264.1mm)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

64 Channels dwdm mux demux

75GHz dwdm mux demux

Product Description

64 Channels DWDM Mux Demux Super C Band 75GHz

64 Channels DWDM Mux Demux, Super C-band 75GHz 1528.87-1566.62nm, 5.8dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount

Product Highlights

Passive Transparent Multiplexing at Any Rate, Any Service
Multiplexing of up to 64 Channels on Fiber Pair to Maximize Existing Fiber Utilization
Low Insertion Loss: Typical 5.8dB, Maximum 6.5dB
Wide Pass Band Flat-top Profile
Super C-band Improves System Transmission Capacity and Distance
Compatible with ITU Grid and Interconnects with All Optical Networking Products
Monitor Port Taps off 1% of Signal for Channel Power Level Monitoring
Customizable Solutions per Customer Application Requirements

Product Overview

The 64CH Mux Demux is a low loss, high-density passive DWDM device based on AAWG (Flat-top) technology, specifically designed for long-haul transmission. This unit functions as either a multiplexer or de-multiplexer (mux/demux).

When used with Gezhi Photonics transponders and amplifiers, this Mux Demux supports various architectures from simple point-to-point to amplified ring configurations. Compliant with ITU-T standards, it maximizes the capacity of the super C-band range.

Connectivity Solutions

Key Features

Maximize Your Fiber with WDM Network

A single fiber can be shared for multiple different data or services in WDM network, maximizing fiber utility and generating substantial savings.

Data Center Interconnect for DWDM Network

Gezhi Photonics Mux Demux seamlessly interconnects with transponders, muxponders, amplifiers, and third-party WDM products to form cost-effective high-capacity DWDM tailored solutions.

Hybrid CWDM-DWDM System for Network Expansion

By utilizing the 1530nm and 1550nm CWDM channels, multiple DWDM channels can be transmitted within a single CWDM channel, providing a cost-effective and easily expandable solution.

Technical Specifications

Parameter	Specification
Wavelength	64 Channels 191.3625-196.0875THz (1528.87-1566.62nm)
Channel Spacing	75GHz
Channel Passband	±31.5GHz
Insertion Loss	≤6.5dB, 5.8dB Typical
Insertion Loss @ 1% Mon TX	≤27dB
Insertion Loss @ 1% Mon RX	≤22dB
Wavelength Accuracy	±50pm
Technology	AAWG (Flat-top)
Adjacent Channel Isolation	≥8dB
Non-adjacent Channel Isolation	≥30dB
Return Loss	≥40dB
Directivity	≥40dB
Polarization Dependent Loss	≤0.5dB
Polarization Mode Dispersion	≤1.0ps
Operating Temperature	-5 to 65℃ (23 to 149°F)
Storage Temperature	-40 to 85℃ (-40 to 185°F)
Net Weight	4.185kg
Dimensions (HxWxD)	1.73"x19"x10.4" (44x481.8x264.1mm)

Frequently Asked Questions

Q1: What's the Lead time?

A1: Normal lead time is approximately 1 week. For large quantities and special products, please check lead time with our sales representative. We maintain stock for some products and can ship within 1-3 days after receiving payment.

Q2: Can I have a sample order? What is your MOQ?

A2: Sample orders are welcome for quality testing and verification. We have no minimum order quantity (MOQ) - 1 piece samples are available. Mixed samples are also acceptable.

Q3: What is your warranty time?

A3: 3 years warranty.

Q4: What are the payment terms?

A4: Payment terms include T/T, PayPal, Western Union, cash payment, and ALI.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
