18 Channels 1270-1610nm CWDM Mux Demux with Monitor Port and TFF Technology

Name: 18 Channels 1270-1610nm CWDM Mux Demux with Monitor Port and TFF Technology
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 18 Channels CWDM Mux Demux
Price: 138.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	18 Channels CWDM Mux Demux
MOQ:	1pc
Price:	US$78-US$198
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

18 Channels 1270-1610nm

Channel Spacing:

20nm

Passband Ripple:

≤ 0.5dB

Center Wavelength Accuracy:

± 0.05nm

Channel Passband:

± 6.5nm

Technology:

TFF (Thin Film Filter)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

18channels passive cwdm

passive cwdm fiber optic multiplexers

1610nm cwdm fiber optic multiplexers

Product Description

18 Channels CWDM Fiber Optic Multiplexer with Monitor Port

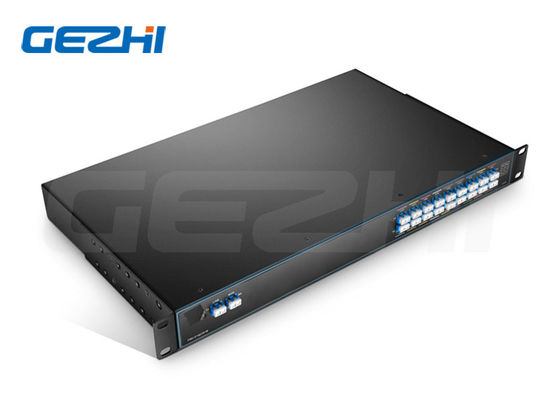

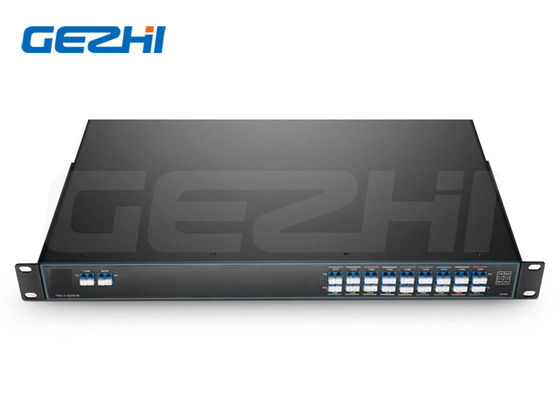

18 Channels CWDM Mux Demux, 1270-1610nm, with Monitor Port, 5.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount

Product Overview

The 18CH Mux Demux is a cost-effective, flexible passive CWDM device based on TFF (Thin Film Filter) technology, suitable for short-distance transmission. This unit functions as either a multiplexer or de-multiplexer (mux/demux) and maximizes C-band capacity in accordance with ITU-T G.694.2 standards. When used with Gezhi Photonics CWDM optical transceivers and OADM components, it supports various architectures from simple point-to-point to amplified ring configurations.

Key Features

Passive transparent multiplexing at any rate, any service
Multiplexing of up to 18 channels on fiber pair to maximize existing fiber utilization
Low insertion loss: Typical 5.0dB, Maximum 5.5dB
Compatible with ITU Grid and interconnects with all optical networking products

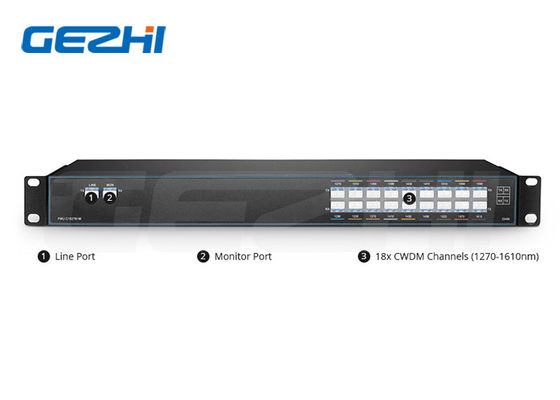

Monitor port taps off 1% of the signal to monitor channel power levels
Hybrid C/DWDM system via 1530nm/1550nm for additional DWDM channels
Customizable solutions per customer application requirements

Applications

Data Center Interconnect for CWDM Network

Mux Demux units interconnect seamlessly with transponders, muxponders, and third-party WDM products to form cost-effective high-capacity CWDM tailored solutions.

Hybrid CWDM-DWDM System for Network Expansion

By utilizing the 1530nm and 1550nm CWDM channels, multiple DWDM channels can be transmitted within a single CWDM channel, providing a cost-effective and easily expandable solution.

Technical Specifications

Wavelength	18 Channels 1270-1610nm
Channel Spacing	20nm
Passband Ripple	≤ 0.5dB
Center Wavelength Accuracy	± 0.05nm
Channel Passband	± 6.5nm
Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 5.5dB, 5.0dB Typical
Insertion Loss @ 1% Mon	≤ 24.5dB
Return Loss	≥ 45dB
Directivity	≥ 50dB
Polarization Dependent Loss	≤ 0.3dB
Polarization Mode Dispersion	≤ 0.1ps
Channel Isolation	Adjacent ≥ 30dB, Non-adjacent ≥ 40dB
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Power Handling	≤ 500mW
Dimensions (HxWxD)	1.73"x19"x10.28" (44x481.8x261.2mm)

Frequently Asked Questions

What's the lead time?

The normal lead time is about 1 week. For large quantities and special products, please check lead time with our sales representative. We keep stock for some products and can ship within 1-3 days after receiving payment.

What is your warranty time?

3 years warranty.

Can I have a sample order? What is your MOQ?

Sample orders are welcome to test and check quality. We don't have a minimum order quantity - 1 piece samples are available. Mixed samples are also acceptable.

Could I use our own logo, label and package?

Yes, we provide OEM service according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.

What are the payment terms?

Payment terms: T/T, PayPal, Western Union, cash payment, AliPay, etc.
