Product Details:
Payment & Shipping Terms:
|
| Connector Type: | LC UPC To LC UPC | Fiber Mode: | OS2 9/125μm |
|---|---|---|---|
| Fiber Grade: | G.657.A1 (Compatible With G.652.D) | Wavelength: | 1310/1550nm |
| Insertion Loss: | ≤0.3dB | Return Loss: | ≥50dB |
| Min. Bend Radius (Fiber Core): | 10mm | Min. Bend Radius (Fiber Cable): | 10/5D (Dynamic/Static) |
| Attenuation At 1310 Nm: | 0.36 DB/km | Attenuation At 1550 Nm: | 0.22 DB/km |
| Fiber Count: | Simplex | Cable Diameter: | 2.0mm |
| Cable Jacket: | PVC | Polarity: | A (Tx) To B (Rx) |
| Operating Temperature: | -20 To 70°C (-4 To 158℉) | Storage Temperature: | -40 To 80°C (-40 To 176℉) |
| High Light: | OEM single mode fiber patch cable,1550nm single mode fiber patch cable |
||

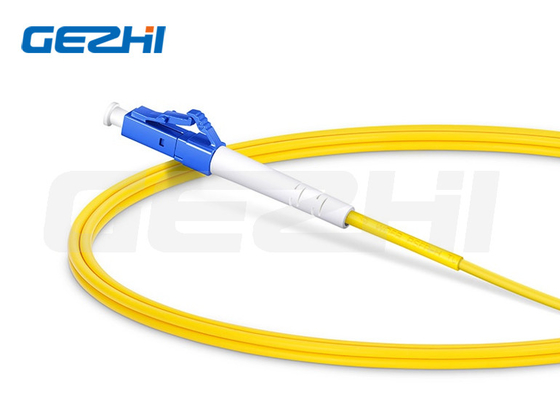

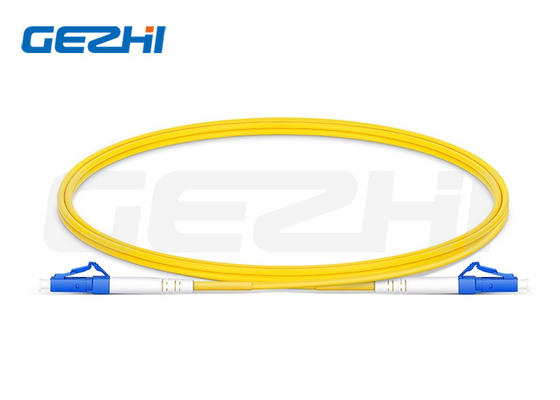

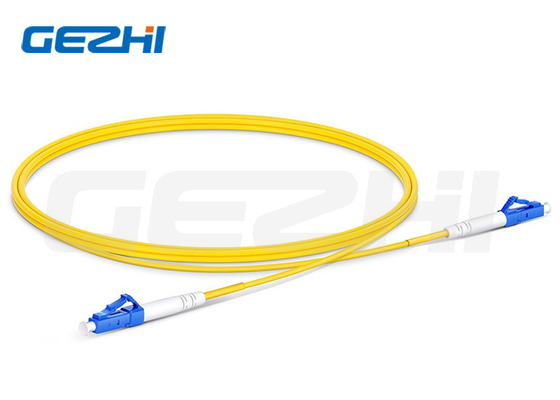

OEM Factory Price LC/UPC to LC/UPC Simplex OS2 1310/1550nm Single Mode PVC 2.0mm Fiber Optic Patch Cable
Product Description
The 9/125μm single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.
This fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Product Highlights
1.PVC (Riser) Flame-retardant Jacket

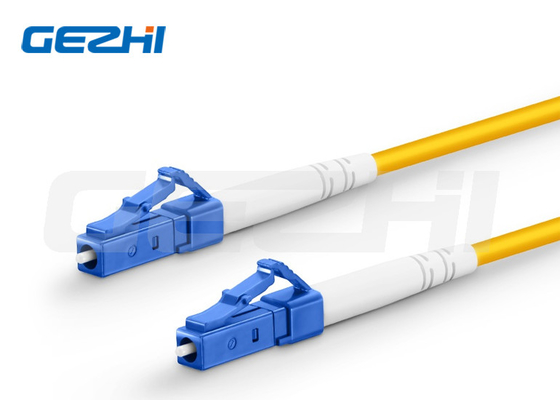

2.Precision Zirconia Ferrule Connectors Ensure Low Loss
3.G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
4.Optical Testing Ensures Network Performance
2.Compliant to TIA-604 (FOCIS)
Connectivity Solutions
Features
1.Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
2.Meet the Various Indoor Installation Needs
Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.
3.Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
4.Spine-Leaf Architecture Achieve Larger Network Scale
Reduce latency times of east-west traffic and provide a redundant path.
Other Products
FAQ
Q1: What's the Lead time?
A1: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.Q1:Can I have a sample order?
Q2:What is your MOQ ?
A2:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q3: Could I use our own logo, label and package?
A3: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
Q4: What are the payment terms?
A4: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q5: What is your warranty time?
A5: 3 years' warranty.
