Product Details:
Payment & Shipping Terms:
|
| Connector Type: | LC UPC To LC UPC | Fiber Mode: | OM5 50/125μm |
|---|---|---|---|
| Fiber Grade: | Bend Insensitive | Wavelength: | 850/1300nm |
| Insertion Loss: | ≤0.3dB | Return Loss: | ≥30dB |
| 40G Ethernet Distance: | 440m At 850nm | 100G Ethernet Distance: | 150m At 850nm |
| Cable Jacket: | PVC | Fiber Count: | Duplex |
| Cable Diameter: | 2.0mm | ||
| High Light: | LC UPC duplex patch cable,FTTH duplex patch cable |
||

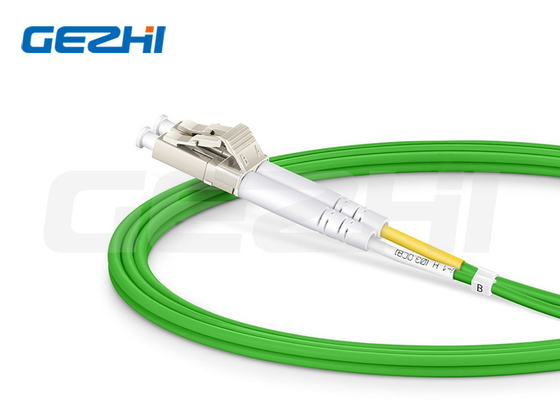

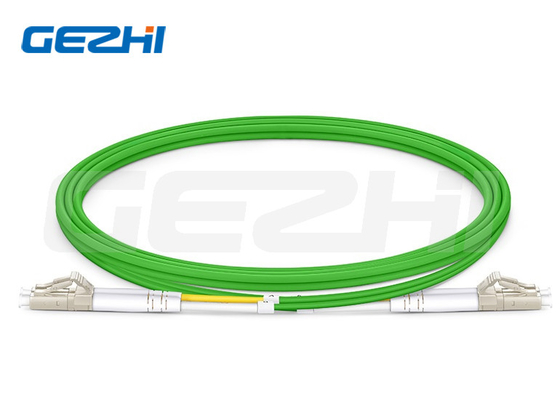

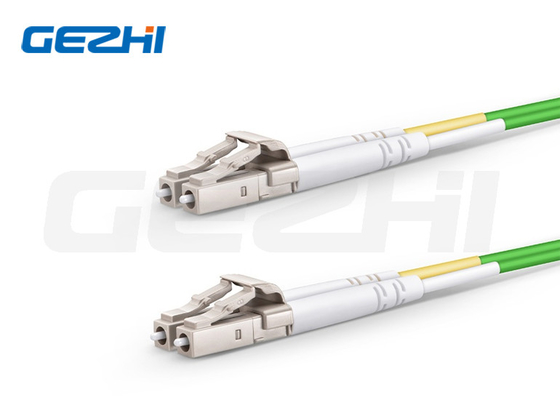

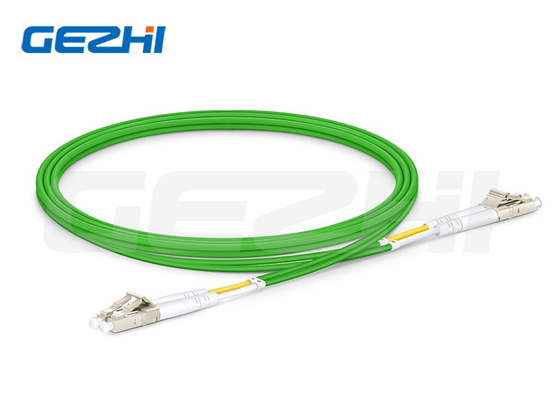

Multimode Wideband PVC 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM5 850/1300nm Multimode Wideband PVC 2.0mm Fiber Optic Patch Cable for FTTH
Product Description
OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-953nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
OM5 meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.
Product Highlights
1.PVC (Riser) Flame-retardant Jacket
2.Precision Zirconia Ferrule Connectors Ensure Low Loss
3.Duplex Zipcord Enhances Mechanical Performance and Reduces Crimping Risk
4.Bend Insensitive Fiber & 7.5mm Min. Bend Radius
5.A Wideband Multimode Fiber Solution, Supports at Least 4 Wavelengths at 850-953nm
6.Support Extended Distances When Using SWDM at 850-953nm
7.Optical Testing Ensures Network Performance
Connectivity Solutions
Features
1.Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
2.Meet the Various Indoor Installation Needs
Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.
3.Unified Fiber Polarity for Cost-Effective System Management
Unified fiber optic polarity ensures data integrity and system reliability by promoting interoperability among devices and reducing signal issues.
4.OM5 Fiber - Ready for Next-Generation Wideband Networks
Transmit multiple signals on one fiber, increasing the bandwidth of a single fiber at least four.
Other Products
FAQ
Q1: What's the Lead time?
A1: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.Q1:Can I have a sample order?
Q2:What is your MOQ ?
A2:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q3: Could I use our own logo, label and package?
A3: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
Q4: What are the payment terms?
A4: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q5: What is your warranty time?
A5: 3 years' warranty.
