18ch Cwdm Module 1270-1610nm 1u Lgx 2 Half Sized Slot In 1 Cassette

Name: 18ch Cwdm Module 1270-1610nm 1u Lgx 2 Half Sized Slot In 1 Cassette
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-CWDM-MUX
Price: 399.98 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-CWDM-MUX
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

2 Half Sized Slot In 1 Cassette 16CH CWDM Mux Demux

Package:

LGX

Wavelength:

1270~1610nm

Channel Space:

20nm

Connector:

LC UPC

Operating Temperature:

-20 To +70℃

Logo:

Customized

Certificate:

FCC CE RoHS

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

18CH CWDM Module, 1U LGX CWDM Module, 1610nm CWDM Mux Demux Module

Product Description

18CH CWDM Module 1270-1610nm 1U LGX 2 Half Sized Slot In 1 Cassette

Product Description

Gezhi's CWDM Mux Demux Module CWDM Mux/Demux Module is over a single or duplex single mode fiber to extend overall bandwidth WDM.

It offers high stability and reliability, and has compact package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.

This type is a very compat design in a 1U Rack with 2-Slot Half-Sized LGX Cassette Single Fiber LC/UPC 1270nm-1610nm 18CH CWDM Mux Demux.

Gezhi CWDM Mutiplexer Series

* Bare single CWDM device packed in glass tube or stainless steel tube
* ABS box type up to 16-channel or 18-channel
* Standard 19" 1U rackmount

Features

* Very Low Insertion Loss
* High Isolation
* High Reliability and Stability
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
* Operating Temperature:-20 to +70℃
* Industrial Operating Temperature:-40 to +80℃

Product Specifications

Parameter		4 Channel		8 Channel		18 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Insertion Loss (dB)		≤1.2		≤2.5		≤3.1
Channel Uniformity (dB)		≤0.5		≤1.0		≤1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity (dB/°C)		<0.005
Wavelength Temperature Shifting (nm/°C)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		500
Opterating Temperature (°C)		-20~+70
Storage Temperature (°C)		-40~85
Package dimension (mm)		L100 x W80 x H10 or L140xW100xH15

Applications

* CWDM System
* Add/Drop
* PON Networks
* CATV Links

Compliance

* Telcordia GR-1209-CORE-2001
* Telcordia GR-1221-CORE-1999
* RoHS

Details Images

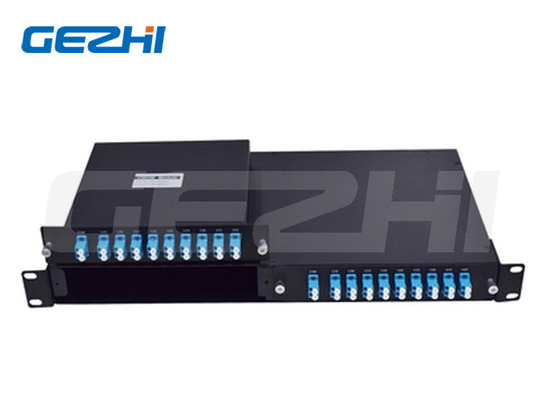

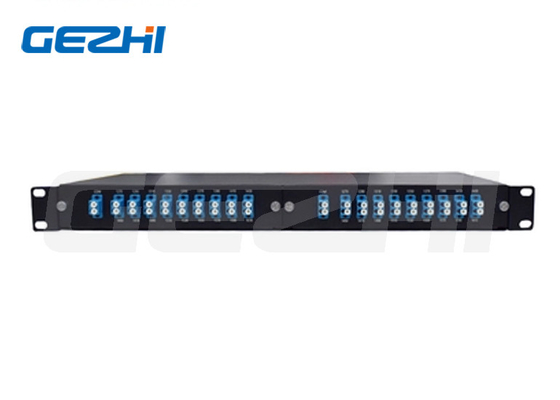

18ch Cwdm Module 1270-1610nm 1u Lgx 2 Half Sized Slot In 1 Cassette 0

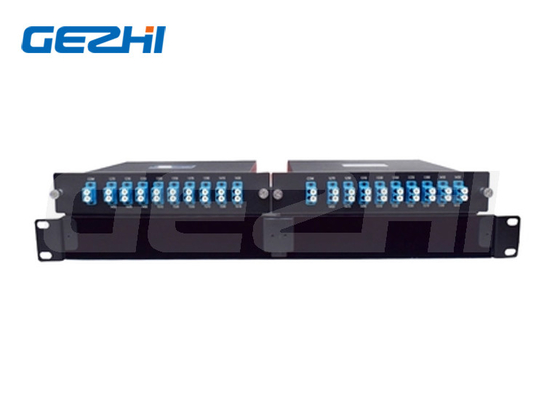

18ch Cwdm Module 1270-1610nm 1u Lgx 2 Half Sized Slot In 1 Cassette 1

Order Information

GZ Configuration

Number of Channels

1st Channel

Fiber Type

Fiber Length

In/Out Connector

GZ-Gezhi

M=Mux

D=Demux

O=OADM

04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable

1=1m
2=2m
S=Specify

0=None
FA=FC/APC
FP=FC/PC
SA=SC/APC
SP=SC/PC
LP=LC/UPC

……
