18CH CWDM Mux Demux Module with 1270-1610nm Wavelength and 1U LGX Cassette Design

Name: 18CH CWDM Mux Demux Module with 1270-1610nm Wavelength and 1U LGX Cassette Design
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-CWDM-MUX
Price: 350.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-CWDM-MUX
MOQ:	1pc
Price:	US$220-US$480
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

2 Half Sized Slot In 1 Cassette 16CH CWDM Mux Demux

Package:

LGX

Wavelength:

1270~1610nm

Channel Space:

20nm

Connector:

LC UPC

Operating Temperature:

-20 To +70℃

Logo:

Customized

Certificate:

FCC CE RoHS

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

18CH CWDM Module, 1U LGX CWDM Module, 1610nm CWDM Mux Demux Module

Product Description

18CH CWDM Module 1270-1610nm 1U LGX 2 Half Sized Slot In 1 Cassette

Gezhi's CWDM Mux Demux Module enables wavelength division multiplexing over single or duplex single mode fiber to extend overall bandwidth. This compact 1U rack-mounted module offers high stability and reliability with 18 channels spanning 1270nm to 1610nm with 20nm channel spacing.

Gezhi CWDM Multiplexer Series

Bare single CWDM device packed in glass tube or stainless steel tube
ABS box type up to 16-channel or 18-channel
Standard 19" 1U rackmount

Product Features

Very Low Insertion Loss
High Isolation
High Reliability and Stability
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
Operating Temperature: -20 to +70℃
Industrial Operating Temperature: -40 to +80℃

Product Specifications

Parameter	4 Channel	8 Channel	18 Channel
Channel Wavelength (nm)	1270~1610
Center wavelength Accuracy (nm)	±0.5
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm)	>13
Insertion Loss (dB)	≤1.2	≤2.5	≤3.1
Channel Uniformity (dB)	≤0.5	≤1.0	≤1.5
Channel Ripple (dB)	0.3
Isolation (dB) - Adjacent	>30	>30	>30
Isolation (dB) - Non-adjacent	>40	>40	>40
Maximum Power Handling (mW)	500
Operating Temperature (°C)	-20~+70
Storage Temperature (°C)	-40~85

Applications

CWDM System
Add/Drop
PON Networks
CATV Links

Compliance Standards

Telcordia GR-1209-CORE-2001, Telcordia GR-1221-CORE-1999, RoHS

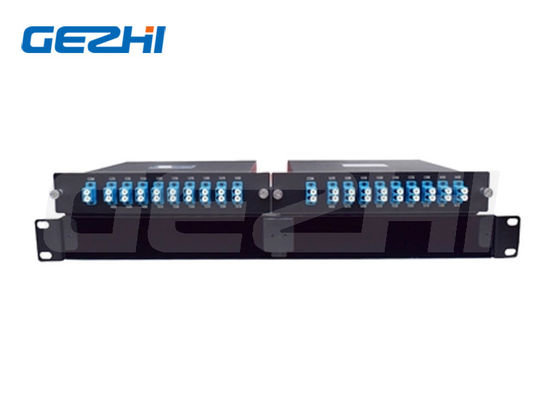

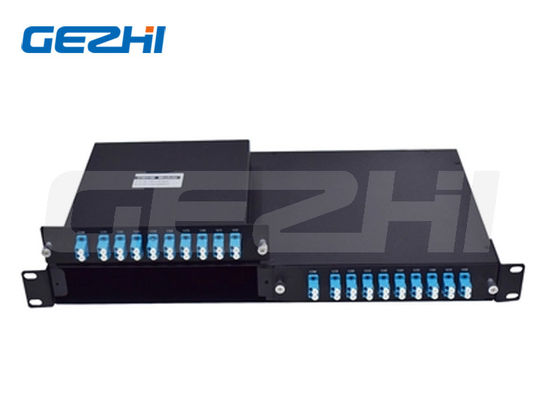

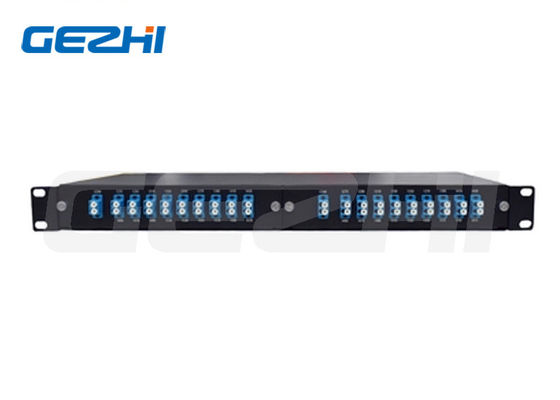

Product Images

Order Information

GZ Configuration: GZ-Gezhi M=Mux D=Demux O=OADM
Number of Channels: 04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel
Channel Wavelength: 27=1270nm 47=1470nm 49=1490nm 61=1610nm SS=special
Fiber Type: 1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable
Fiber Length: 1=1m 2=2m S=Specify
Connector Type: 0=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC LP=LC/UPC
