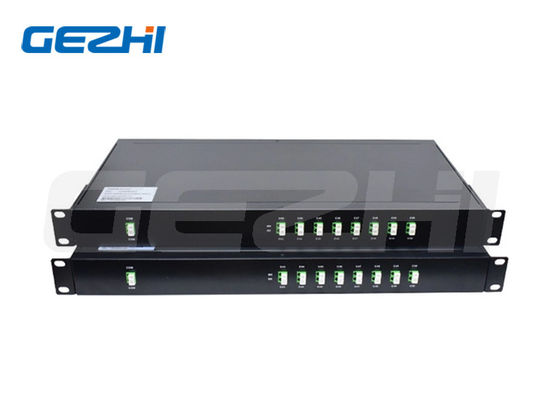

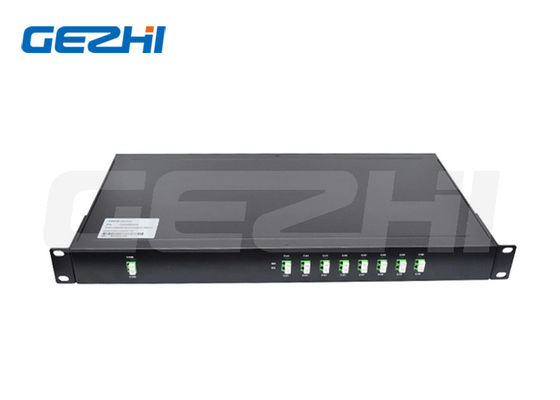

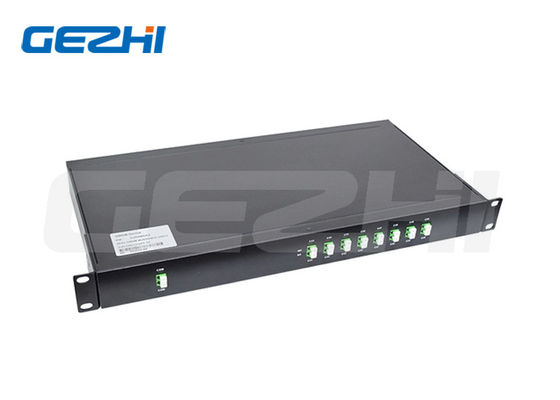

8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer

Name: 8 Channels DWDM Mux Demux 1U 19'' Rack LC/APC Connector Dense Wavelength Division Multiplexer
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-DWDM MUX 8CH
Price: 83.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-DWDM MUX 8CH
MOQ:	1pc
Price:	US$58-US$108
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Key Words:

DWDM Mux

Channel:

8 Channels

Package:

1U 19'' Racks Or ABS Box Optional

Fiber Type:

SMF-28e Or Customer Specified

Application:

WDM Solution

Warranty:

3 Years

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

DWDM MUX DEMUX 2x8CH, Dense WDM System DWDM MUX DEMUX

Product Description

2x8CH DWDM MUX DEMUX 1U 19" Rack LC/APC C43-C50 Channel

2x8CH DWDM MUX DEMUX 1U 19" Rack LC/APC C43-C50 Channel DWDM Device Optical Equipment

Product Overview

DWDM MUX/DEMUX devices reduce network construction costs. With low-cost and compact dimensions, they are primarily used in metropolitan area networks and access layers, and can also be used to build various network infrastructures.

Key Features

Low insertion loss
Low polarization dependent loss (PDL)
High channel isolation
Excellent environmental reliability
Optical path epoxy free
Telcordia 1221 compliant
Ultra low temperature dependent loss (TDL)
Wide operating temperature: -40°C to +85°C

Applications

Dense WDM Systems
PON Networks
CATV Links

Performance Specifications

Parameter	Specification
Channel Space (GHz)	100 \| 200
Channel Number	14 \| 18 \| 116 \| 14 \| 18 \| 116
Center Wavelength (nm)	ITU Grid
Center Wavelength Accuracy (nm)	±0.05 \| ±0.1
Channel Passband (@-0.5dB) (nm)	0.22 \| 0.5
Fiber Type	SMF-28e with 900μm loose tube or customer specified
Insertion Loss (dB)	1.8 \| 2.3 \| 3.0 \| 1.7 \| 2.9 \| 3.1
Passband Ripple (dB)	0.35 \| 0.4 \| 0.5 \| 0.35 \| 0.4 \| 0.5
Isolation (dB)	Adjacent Channel: 25 \| 28 Non-Adjacent Channel: 40
PDL (dB)	0.2
PMD (ps)	0.1
Return Loss (dB)	45
Directivity (dB)	50
Maximum Optical Power (mW)	500
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85
Package Options	ABS plastic box (1008010mm or 14011518mm) LGX metal cassette box (1U, 2U) 19" rack mount package (1U)

Ordering Information

2-44 channels available
Com port: simplex or duplex
Fiber connector: LC/SC or other types
Package options: ABS plastic box, LGX metal cassette box, 19-inch rack mount
DWDM solutions and DWDM SFP/XFP available
Minimum order quantity: 1 piece for sampling purposes

DWDM Mux/Demux Solution

DWDM Mux/Demux with EDFA
