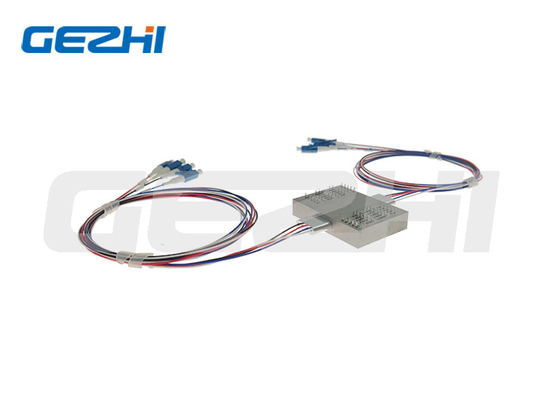

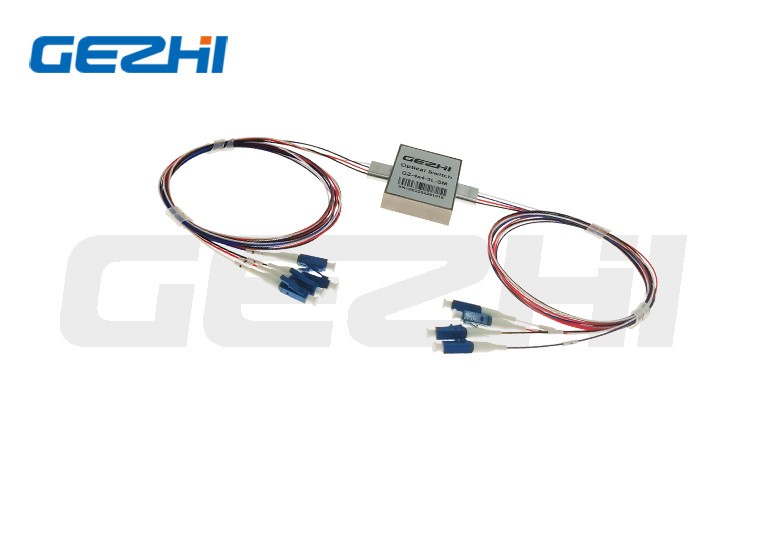

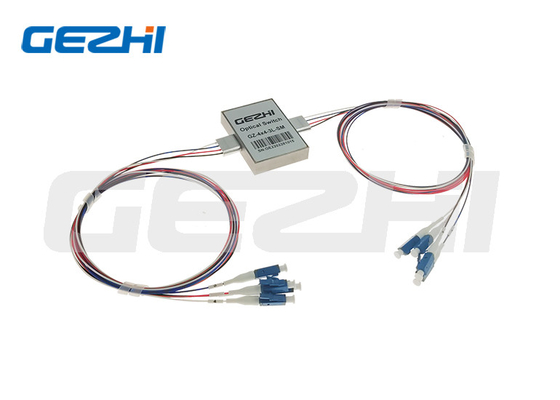

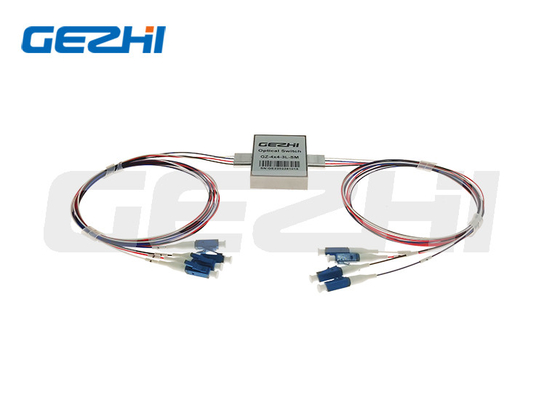

Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching

Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching
Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching

Large Image :  Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching

Product Details:
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-4x4-13/15CC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Place Of Origin: China Product Name: 4 * 4 Optical Switch
Control Type: Non-Latching / Latching Wavelength: 1260~1650nm
Voltage: 5V Or 3V Feature: High Reliability
Connector: C/APC&FC/APC&SC/PC Port: 4x4Full
Opterating Temperature: -10~+75 Power Handling: SMF-28e Or Customized
High Light:

4x4 fiber switch

,

non latching fiber switch

,

4x4 fiber network switch





mechanical fiber optic switch: wide operating wavelength range



4x4 Min-single Mode Fiber Optical Isolator



4x4 Optical Switches

GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 0Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 1Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 2Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 3



   Features

Compact design, Miniature size

Short switching time

Bi-directionalLow optical distortions

Low cross talk, Low Insertion Loss

Wide operating wavelength Range

   Applications

R&D in Laboratory

System monitoring

Metropolitan Area Network

Network protection and restoration

Instrumentation, testing, and measurement



Specification

Parameters   GZ-FSW-4×4
Operating Wavelength nm 1260~1620(SM),850(MM)
Insertion Loss dB ≤1.0
Wavelength Dependent Loss dB ≤0.40
Polarization Dependent Loss dB ≤0.05
Temperature Dependent Loss dB ≤0.20
Return Loss dB SM≥50 MM≥30
Cross Talk dB SM≥55 MM≥35
Switch Time ms ≤8
Repeatability dB ≤±0.02
Durability times ≥107
Operating Voltage V 3 or 5
Switch Type   Non-Latching/Latching
Operating Temperature ℃ －20~＋70
Storage Temperature ℃ －40~＋85
Optical Power mW ≤500
Dimension mm 52.7.0L×37.2W×10.0H



Pins

Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 4


Order Information

GZ-4×4-13/15

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non- Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others



Optical Route



     Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 5

Demension:

Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 6

Our Certificates



              Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 7

Packing & Shipping

Gezhi Photonics 4x4 Mechanical Fiber Switch Non Latching 8

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package
