Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
CWDM Mux Demux

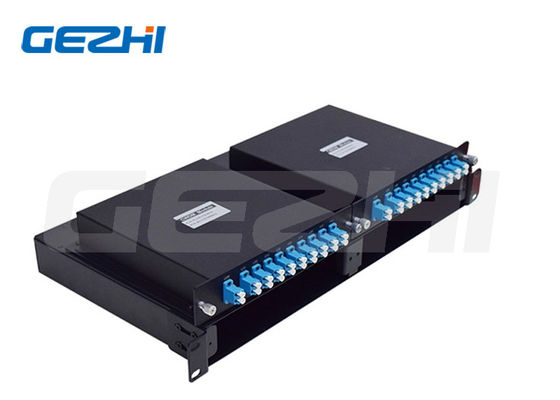

Created with Pixso. 18 Channels CWDM Mux Demux Module with 1U Rack Mount and Low Insertion Loss for WDM Networks
18 Channels CWDM Mux Demux Module with 1U Rack Mount and Low Insertion Loss for WDM Networks
  • name
  • name
  • name

18 Channels CWDM Mux Demux Module with 1U Rack Mount and Low Insertion Loss for WDM Networks

Brand Name: GEZHI or OEM
Model Number: GZ-CWDM MUX
MOQ: 1pc
Price: US$220-US$380
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Key Words:
CWDM Mux
Channel:
18 Channels
Package:
1U 19'' Racks Or ABS Box Optional
Fiber Type:
SMF-28e Or Customer Specified
Application:
WDM Solution
Warranty:
3 Years
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

1u cwdm mux

,

18 channels cwdm mux

,

1u cwdm mux demux

Product Description
18 Channels WDM Solution CWDM Mux 1U Racks SC FC LC APC UPC
CWDM MUX 18 Channels CWDM System 1U Racks SC FC LC APC UPC PC
Product Overview

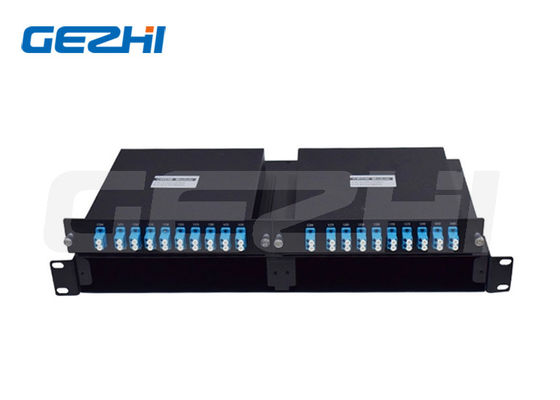

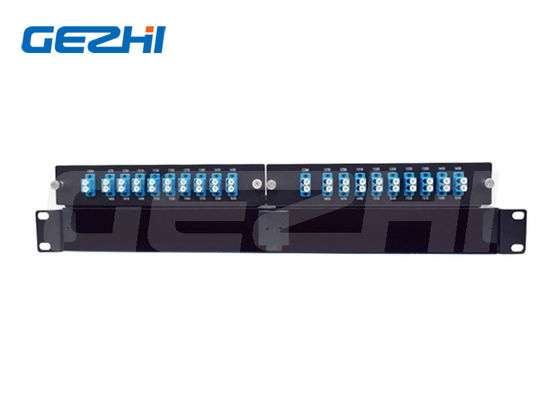

GEZHI 18CH CWDM Mux/Demux FMU Plug-in Module combines an 18CH Mux LGX cassette and 18CH Demux LGX cassette in a single 19" 1U rack-mount enclosure. The wavelength range for this 18CH CWDM Mux/Demux FMU Plug-in Module is 1310 to 1610nm.
Key Features
  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Compact Design
  • 18 Channels
  • Mounted in 19" 1U Racks or ABS box optional
  • Wide Operating Wavelength: From 1260nm to 1620nm
Applications
  • CWDM System
  • WDM Network
Technical Specifications
Parameter 4 Channel 8 Channel 18 Channel
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) - Adjacent N/A >30 N/A >30 N/A >30
Isolation (dB) - Non-adjacent N/A >40 N/A >40 N/A >40
Insertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Operating Temperature (°C) -5~+75
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15
CWDM MUX/DWDM MUX Solution
18 Channels CWDM Mux Demux Module with 1U Rack Mount and Low Insertion Loss for WDM Networks 0 18 Channels CWDM Mux Demux Module with 1U Rack Mount and Low Insertion Loss for WDM Networks 1
Product Supply
We supply all kinds of compatible optical transceiver modules, including SFP, SFP+, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with various brands.
Frequently Asked Questions
Q: Do you sell second-hand products?
A: No. All our products are brand new, we never use second-hand components.
Q: Do your products come with warranty?
A: Yes, We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A: 1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help to track your goods until you receive them safely.
