Optical Add Drop Multiplexer
Created with Pixso. 100GHz 1310nm 2CH DWDM OADM Module Optical Add Drop Multiplexer for FTTX and 5G Networks
name
  • name
  • name
  • name
  • name
  • name

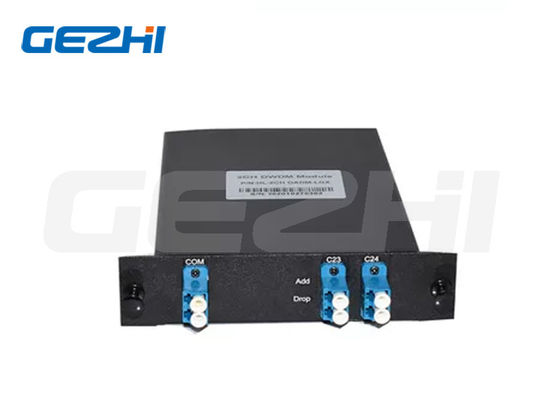

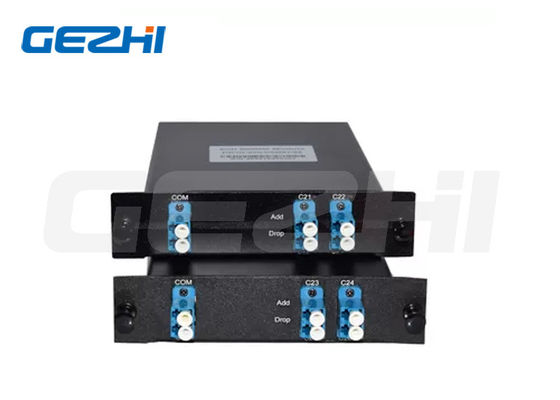

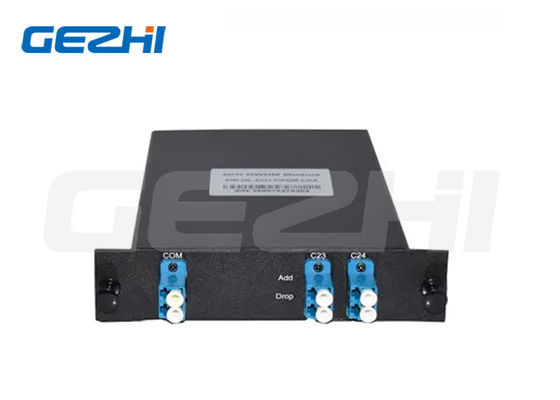

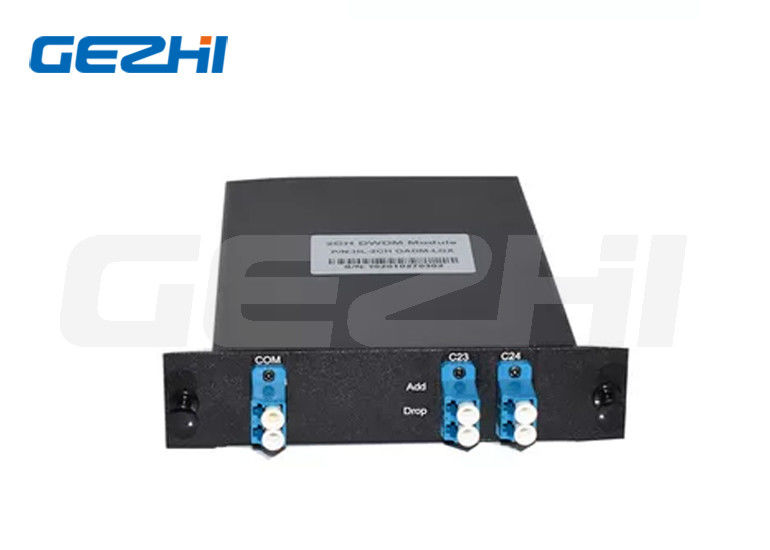

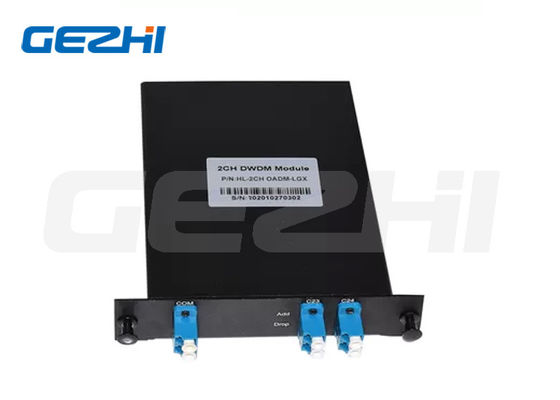

100GHz 1310nm 2CH DWDM OADM Module Optical Add Drop Multiplexer for FTTX and 5G Networks

Brand Name: GEZHI or OEM
Model Number: 2CH Dwdm Oadm
MOQ: 1pc
Price: US$18-US$48
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
2CH Dwdm Oadm
Solutuion:
Optical Add Drop Multiplexer
Fiber:
Single Or Duplex
Connenctor:
LC/SC/FC/ST, UPC/APC
Ports:
2ch
Use:
FTTX, 5G Network, Data Center
Warranty:
3 Yeaars
Package:
LGX, ABS Plastic Box Or Customized, OEM
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

DWDM Optical Mux Demux

,

1310nm Optical Mux Demux

,

100GHz Optical Mux Demux

Product Description
100GHz FTTX 1310nm 2CH Optical Mux Demux OADM DWDM Add Drop Module
DWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one or multiple 100 GHz DWDM channels in the C-band into one or two fibers, while allowing the remaining wavelengths to bypass to their required destination. Using DWDM technology effectively adds WDM capability to existing and new networks while extending optical signal transmission distance.
Product Features
  • Available in single-sided (East or West) and dual-sided (East and West) configurations
  • Can add or drop up to 4 data channels at any point along the fiber trunk
  • Modular, scalable design perfect for 10/1G Ethernet, 16/8/4/2/1G FC, SDH/SONET, Video, CATV, and FTTx applications
  • Compatible with matching MUX/DeMUX units placed at each end of optical links
  • Enables multiple data channels to be combined and transmitted over single-mode fiber trunks
Technical Specifications
Parameter Specification
Number of Channels 1/2/4/8/16
Operating Wavelength 1520nm-1570nm
Channel Spacing 100GHz (0.8nm)
Channel Passband ±0.11nm
Line Type Dual fiber
Transmission Direction West and/or east
Connector LC/SC/FC/ST, UPC/APC polish
Special Service Monitor/1310nm port
1310nm Port Pass Band Width 1260nm~1360nm
Housing FMU/FUD/1U rack/ABS module
Technology TFF (Thin Film Filter)
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Frequently Asked Questions
Do you sell second-hand products?
No. All our products are brand new, we never use second-hand components.
What payment terms do you accept?
T/T, PayPal, Western Union are acceptable.
What are the shipping methods you offer?
Our usual shipping methods are DHL, FedEx, TNT, UPS, EMS etc. It will take 3-7 days.
Do your products come with warranty?
Yes, we provide 3 years warranty for all our products from the date of shipment.
What devices can your products compatible with?
Our products are compatible with mainstream switches.
How to place an order?
1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help to track your goods until you receive them safely.
100GHz 1310nm 2CH DWDM OADM Module Optical Add Drop Multiplexer for FTTX and 5G Networks 0 100GHz 1310nm 2CH DWDM OADM Module Optical Add Drop Multiplexer for FTTX and 5G Networks 1
