| Brand Name: | GEZHI or OEM |
| Model Number: | 2CH Dwdm Oadm |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

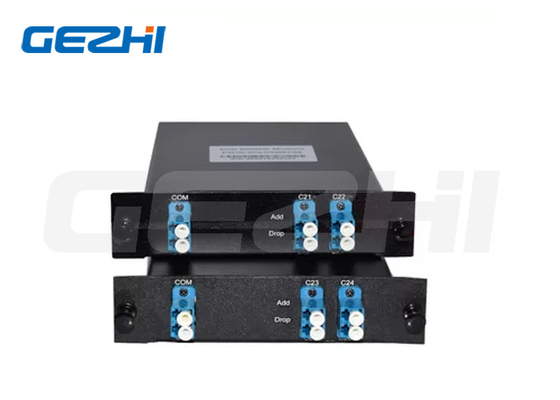

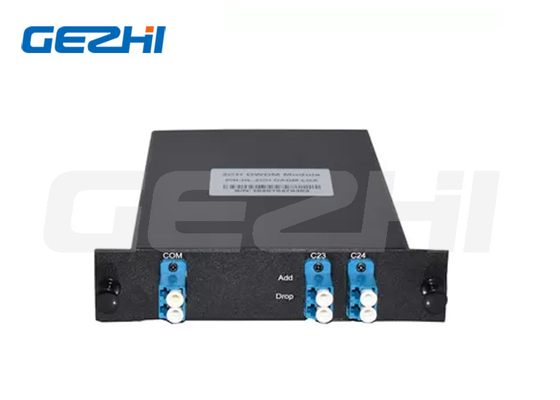

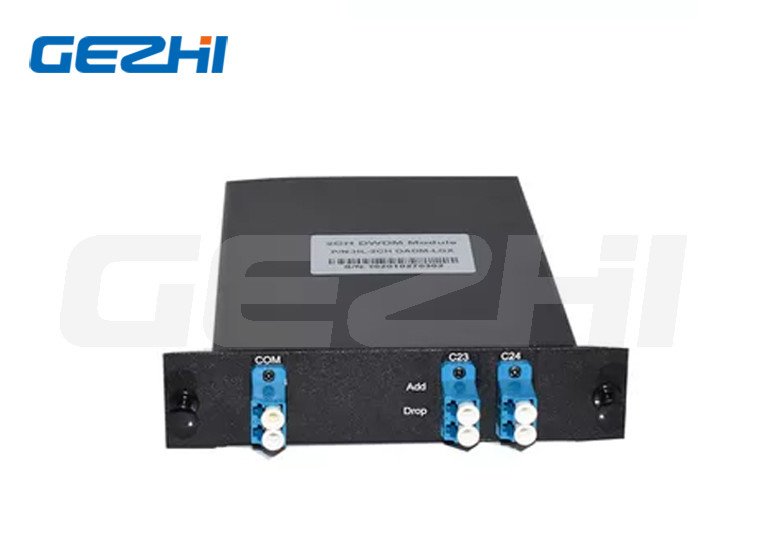

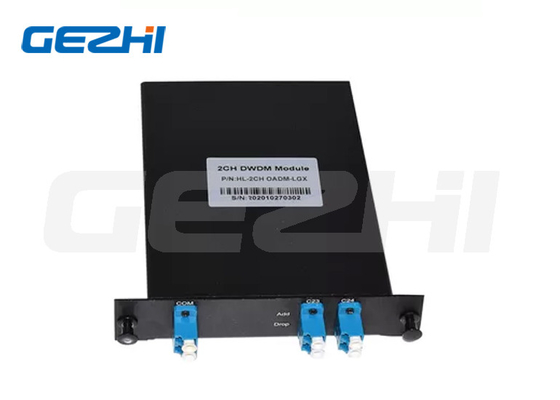

100GHz FTTX 1310nm 2CH Optical Mux Demux OADM DWDM Add Drop Module
Product Description
DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effctively WDM capability to their existing and new networks, and extend the optical signals transmission distance.
DWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations. With matching MUX/DeMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop up to 4 data channels at any point along the trunk.
Gezhi DWDM OADM are modular, scalable and are perfectly suited to 10/1G Ethernet,16/8/4/2/1G FC, SDH/SONET, Video, CATV, FTTx applications.
Product Specification
| Number of Channel | 1/2/4/8/16 | Operating Wavelength | 1520nm-1570nm |
| Channel Spacing | 100GHz (0.8nm) | Channel Passband | ±0.11nm |
| Line Type | Dual fiber | Transmission Direction | West and/or east |
| Connector | LC/SC/FC/ST, UPC/APC polish | Special Service | Monitor/1310nm port |
| 1310nm Port Pass Band Width | 1260nm~1360nm | Housing | FMU/FUD/1U rack/ABS module |
| Technology | TFF (Thin Film Filter) | Temperature | Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:What devices can your products compatible with?
A:Our products are compatible with Mainstream switches.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
|
|
