| Product Name: | 8CH DWDM Mux Demux | Package: | LGX |
|---|---|---|---|
| Center Wavelength: | C-band | Connector: | LC/UPC |
| Fiber Count: | 2 Fibers | Operating Temperature: | -20 To +70℃ |

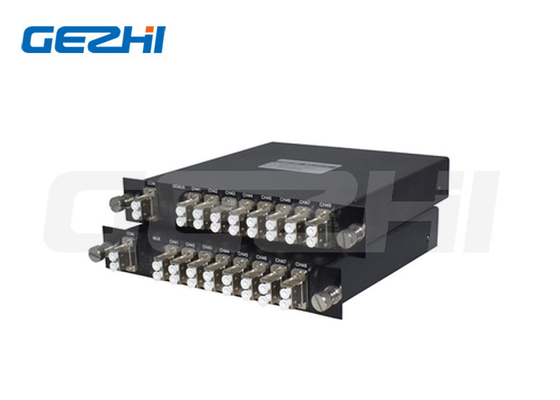

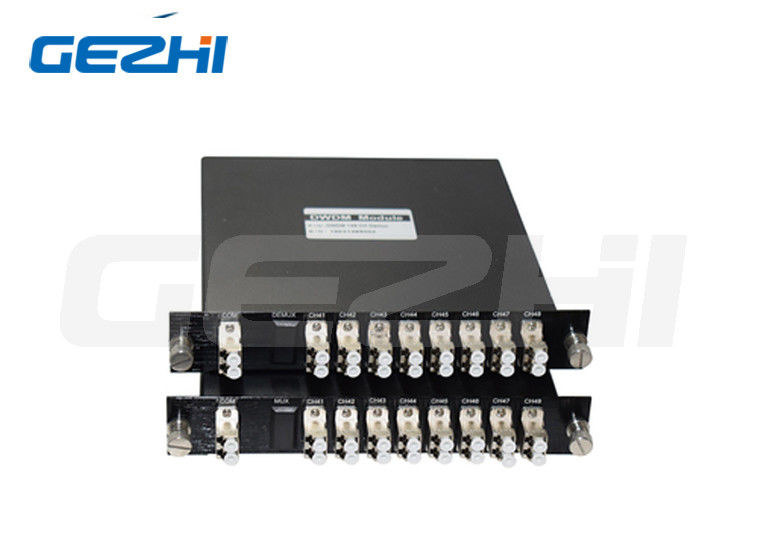

8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors
Product Description
DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.
DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.
Product specifications
| Parameters | |||||||
| Channel Space(GHz) | 100(standard) | 200 | |||||
| Channel Number | 1x4 | 1x8/1x16 | 1x40 | 1x4 | 1x8 | 1x16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy(nm) | +0.05 | 士0.1 | |||||
| Channel Passband(@-0.5dB)(nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL(dB) | 1.8 | 3.0 | 3.5 | 1.7 | 2.9 | 3.4 | |
| Passband Ripple(dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation(dB) | Adjacent Channel | 25 | 28 | ||||
| Non AdjacentChannel | 40 | ||||||
| PDL(dB) | 0.2 | ||||||
| PMD(ps) | 0.1 | ||||||
| RL(dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 300 | ||||||
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| BOX Package(mm) | 100*80*10 or140115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19 Rack mount Package | 1U | ||||||
Notes:
1.Specified without connectors.
2.Add an additional 0.2dB loss per connector.
| Features | Applications |
| * C Band | * Channel Add/Drop |
| * 2-44 channels DWDM Mux/Demux (CH17-CH61) | * DWDM Network |
| * Channel spacing: 0.8nm(100GHz Grid) | * Wavelength Routing |
| * Com port is simplex | * Fiber Optical Amplifier |
| * Protocol transparent (10Mbps to 100Gbps) |
* CATV System |
| * Low insertion loss | |
| * Excellent channel isolation | |
| * Epoxy-free optical path | |
| * Compliant to G.657A1 standard | |
| * ISO 9001 manufacturing facility | |
|
* Wide Operating Temperature: -20~+70℃ |
Order Information
| GZ | Channel Spacing | Channel Number | Configuration | 1st Channel | Fiber Type | Fiber Length | Connector |
| GEZHI |
1=100GHz 2=200GHZ |
4=4-Channel 8=8-Channel 16=16-Channel 32=32-Channel |
M=Mux D=Demux |
21=1560.61nm 22=1559.79nm 23=1558.98nm… |
1=Bare fiber 2=900um Jacket |
1=1 Meter 2=2 Meter
|
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
