8CH DWDM Mux Demux Module with Dual Fiber and LGX Package for High-Speed Data Transmission

Name: 8CH DWDM Mux Demux Module with Dual Fiber and LGX Package for High-Speed Data Transmission
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-DWDM-8CH
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-DWDM-8CH
MOQ:	1pc
Price:	U$59-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

8CH DWDM Mux Demux

Package:

LGX

Center Wavelength:

C-band

Connector:

LC/UPC

Fiber Count:

2 Fibers

Operating Temperature:

-20 To +70℃

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Metal Connectors DWDM Mux Demux

8CH DWDM Mux Demux

8CH DWDM Mux Demux Module

Product Description

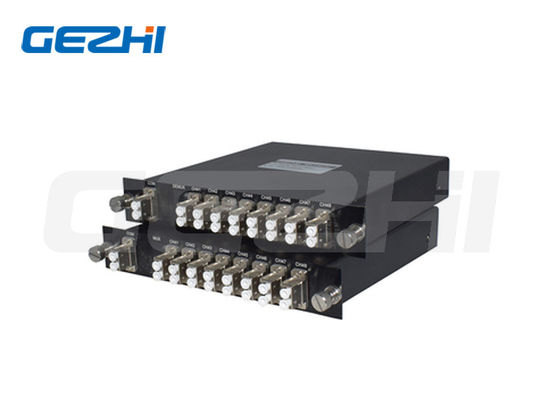

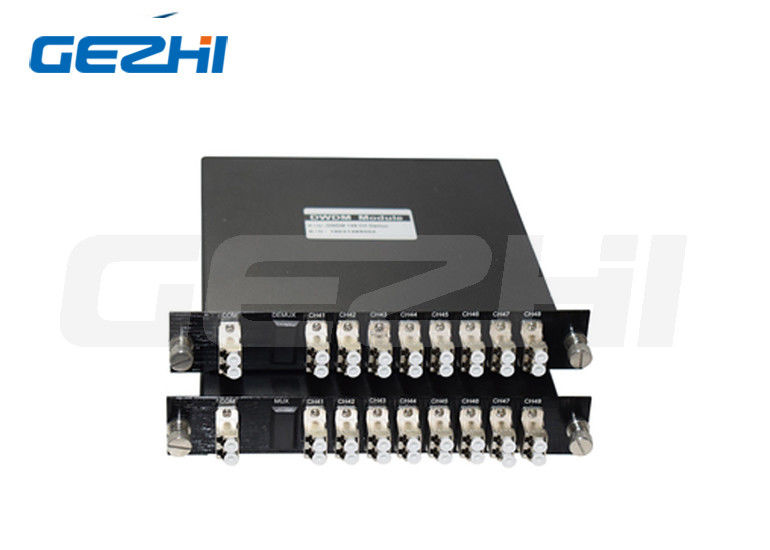

8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors

This DWDM Mux/Demux ITU Wavelength module provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use of fiber wavelength is unrestricted, allowing for increased control and scalability.

The DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's designed for use with 10G 80km DWDM SFP+ Transceivers for long-haul transportation.

Product Specifications

Parameters	Specifications
Channel Space(GHz)	100(standard) \| 200
Channel Number	1x4 \| 1x8/1x16 \| 1x40 \| 1x4 \| 1x8 \| 1x16
Center Wavelength (nm)	ITU Grid
Center Wavelength Accuracy(nm)	+0.05 \| ±0.1
Channel Passband(@-0.5dB)(nm)	0.22 \| 0.5
Fiber Type	SMF-28e with 900um loose tube or customer specified
IL(dB)	1.8 \| 3.0 \| 3.5 \| 1.7 \| 2.9 \| 3.4
Passband Ripple(dB)	0.35 \| 0.4 \| 0.5 \| 0.35 \| 0.4 \| 0.5
Isolation(dB)	Adjacent Channel: 25 \| 28 Non Adjacent Channel: 40
PDL(dB)	0.2
PMD(ps)	0.1
RL(dB)	45
Directivity (dB)	50
Maximum Optical Power (mw)	300
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
BOX Package(mm)	1008010 or 14011518
LGX Package	1U, 2U
19 Rack mount Package	1U

Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.

Features & Applications

Key Features	Applications
C Band operation 2-44 channels DWDM Mux/Demux (CH17-CH61) Channel spacing: 0.8nm(100GHz Grid) Com port is simplex Protocol transparent (10Mbps to 100Gbps) Low insertion loss Excellent channel isolation Epoxy-free optical path Compliant to G.657A1 standard ISO 9001 manufacturing facility Wide Operating Temperature: -20~+70℃	Channel Add/Drop DWDM Network Wavelength Routing Fiber Optical Amplifier CATV System

Order Information

Brand	Channel Spacing	Channel Number	Configuration	1st Channel	Fiber Type	Fiber Length	Connector
GEZHI	1=100GHz 2=200GHz	4=4-Channel 8=8-Channel 16=16-Channel 32=32-Channel	M=Mux D=Demux	21=1560.61nm 22=1559.79nm 23=1558.98nm...	1=Bare fiber 2=900um Jacket	1=1 Meter 2=2 Meter	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
