Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Optical Add Drop Multiplexer
Created with Pixso. 2CH 4CH 8CH CWDM OADM Module Optical Add Drop Multiplexer for Flexible FTTx Network Use with Low Insertion Loss
2CH 4CH 8CH CWDM OADM Module Optical Add Drop Multiplexer for Flexible FTTx Network Use with Low Insertion Loss
  • name
  • name

2CH 4CH 8CH CWDM OADM Module Optical Add Drop Multiplexer for Flexible FTTx Network Use with Low Insertion Loss

Brand Name: GEZHI or OEM
Model Number: GZ-CWDM-OADM
MOQ: 1pc
Price: US$28-US$68
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
Optical Add-Drop Multiplexer
Package:
Plastic/ABS Box
Center Wavelength:
ITU ITU+1
Channel Space:
20nm
Fiber Type:
SMF 28e
Connector:
LC UPC
Operating Temperature:
-20 To +70℃
Certificate:
FCC CE RoHS
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

2CH 4CH 8CH OADM

,

CWDM OADM

,

Flexible FTTx Network OADM

Product Description
Optical Add-Drop Multiplexer 2CH 4CH 8CH CWDM OADM
Designed for flexible FTTx network applications, this CWDM Optical Add/Drop Multiplexer enables efficient wavelength management in WDM systems.
Product Overview
Gezhi's CWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one or multiple CWDM channels in the C-band into one or two fibers, while allowing remaining wavelengths to bypass to their required destinations.
Key Features
  • Low Insertion Loss
  • High Isolation
  • Low PDL (Polarization Dependent Loss)
  • Compact Design
  • Excellent channel-to-channel uniformity
  • Wide Operating Wavelength: 1260nm to 1620nm
  • Wide Operating Temperature: -40°C to 85°C
  • High Reliability and Stability
Applications
  • WDM Systems
  • PON Networks
  • CATV Links

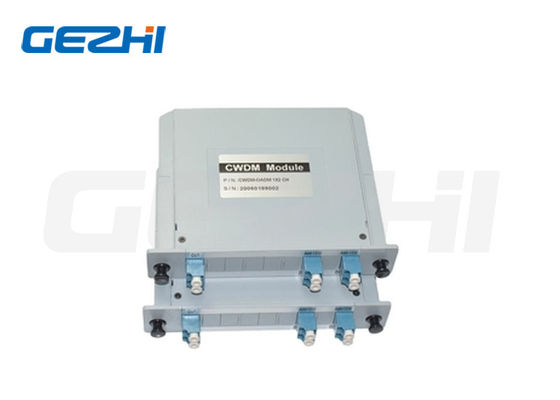

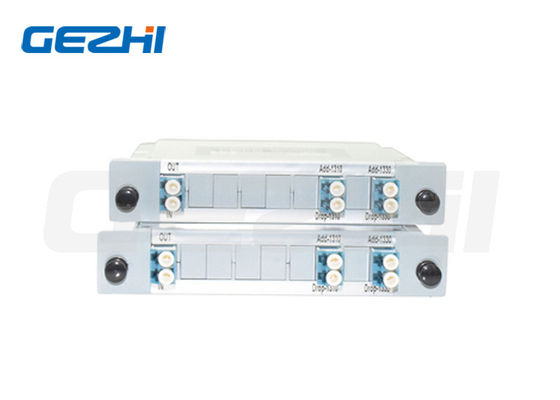

Product Image
2CH 4CH 8CH CWDM OADM Module Optical Add Drop Multiplexer for Flexible FTTx Network Use with Low Insertion Loss 0
Order Configuration
GZ Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector
GZ-Gezhik M=Mux D=Demux O=OADM 04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel 27=1270nm 47=1470nm 49=1490nm 61=1610nm SS=special 1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable 1=1m 2=2m S=Specify 0=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC LP=LC/UPC
Manufacturer Advantages
  • Professional manufacturer established in 2014 with over 10 years of optical network communications experience
  • Commitment to quality - all products are new with no second-hand components
  • Optical transceivers compatible with various brands
  • 3-year warranty on all fiber optical products from shipment date
  • All QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products certified with CE, ROHS, FCC
  • Comprehensive DWDM CWDM WDM optical solutions provider
Frequently Asked Questions
  • Can I order samples? What is your MOQ?
    Sample orders are available for quality testing. Minimum order quantity is 1 piece. Mixed samples are acceptable.
  • What is the lead time?
    1-3 days after payment for regular stock items. For large quantities, consult your Gezhi Tech sales representative.
  • What shipping methods are available and how long does delivery take?
    DHL, UPS, FedEx, or TNT available. Delivery typically takes 3-5 days.
  • What is your warranty policy?
    3-year warranty with technical support, replacement, or refund services.
Tags:

CWDM Optical Add Drop Multiplexer

3CH DWDM OADM

100Ghz dwdm oadm
