Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optical Switches
Created with Pixso. 5W OLP Module Optical Line Protection System with 30ms Auto Switch and High Switch Speed for Reliable Fiber Optical Switching

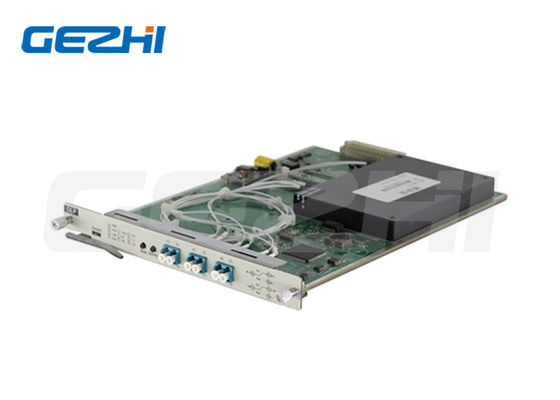

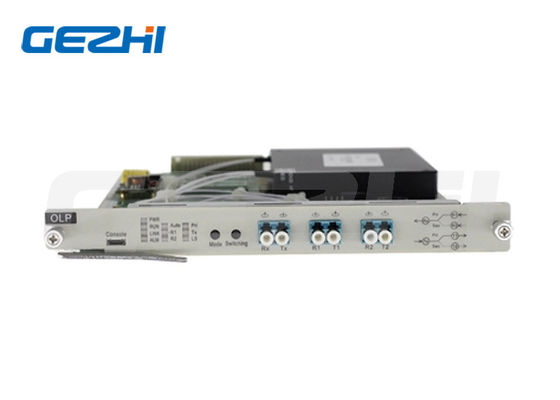

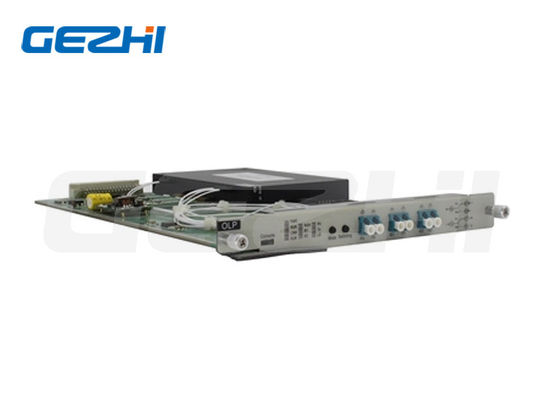

5W OLP Module Optical Line Protection System with 30ms Auto Switch and High Switch Speed for Reliable Fiber Optical Switching
  • name
  • name
  • name

5W OLP Module Optical Line Protection System with 30ms Auto Switch and High Switch Speed for Reliable Fiber Optical Switching

Brand Name: GEZHI or OEM
Model Number: GZ-OLP
MOQ: 1pc
Price: US$460-US$580
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
OLP Module Optical Line Protection System
Working Mode:
Automatic & Manual
Working Wavelength:
1310±50nm, 1550±50nm
Switch Speed:
<30ms
Dimension:
191 * 253 * 20 (mm)
Operating Temperature:
-10 To +60℃
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

5W OLP Module

,

30ms Optical Line Protection System

Product Description
5W OLP Module Optical Line Protection System
30ms Auto Switch with High Switch Speed for reliable optical line protection
Product Overview
Gezhi's Optical Line Protection (OLP) system is an advanced optical line protection subsystem developed with dynamic and synchronous optical switch technology. When communication quality degrades or equipment fails due to accidental fiber fracture or excessive loss in optical transmission lines, the OLP system can switch from the primary line to the secondary line within milliseconds, ensuring continuous communication operation and effectively preventing fiber or equipment faults.
The Optical Line Protection switch provides both Manual and Automatic switching modes. In Manual mode, the system switches optical paths based on user commands. In Automatic mode, the system switches based on detected power levels and preset thresholds, with options for revertive or non-revertive operation modes.
5W OLP Module Optical Line Protection System with 30ms Auto Switch and High Switch Speed for Reliable Fiber Optical Switching 0
Applications
  • Optical line automatic switching protection
  • Real-time power monitoring
  • Automatic switching of primary and secondary routes
Key Features
  • Automatic switching of primary and secondary routes
  • Manual and automatic switching modes
  • Fast switching time <30ms
  • Low insertion loss: <5.5dB
  • Automatic return to primary route
  • Manual and automatic working mode settings
  • Configurable switching threshold settings
Technical Specifications
Parameter 1:1 1+1 Unit
Operating Wavelength 1310±50nm, 1550±50nm nm
Optical Power Range ＋23～-50 dbm
Accuracy of Optical Power ±0.25 db
Detection Light Power Resolution ±0.01 db
Return Loss ≥55 db
Polarization Dependent Loss ≤0.05 db
Wavelength Dependent Loss ≤0.1 db
Insertion Loss Tx≤1.2dB RX≤1.2dB Tx≤4dB RX≤1.2dB db
Switch Speed <30 <15 ms
Dimension 191 (W) x 253 (D) x 20 (H) mm
Operating Temperature -10℃～+60℃ ℃
Storage Temperature -40℃～+85℃ ℃
Relative Humidity 5%~95% Non-condensing
Power Consumption ≤5 W
5W OLP Module Optical Line Protection System with 30ms Auto Switch and High Switch Speed for Reliable Fiber Optical Switching 1
