Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optical Switches
Created with Pixso. Latching 5V 850nm Mechanical Optical Switch with FC/APC Connector for Multimode Fiber Networks

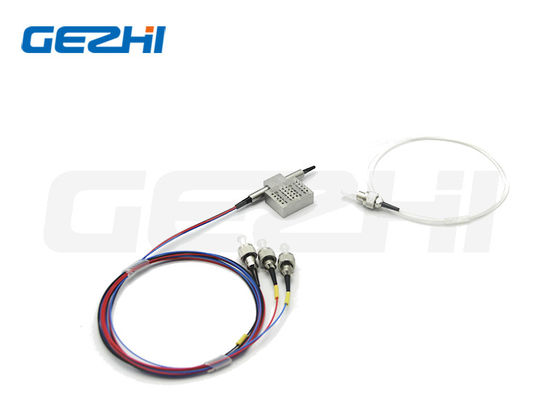

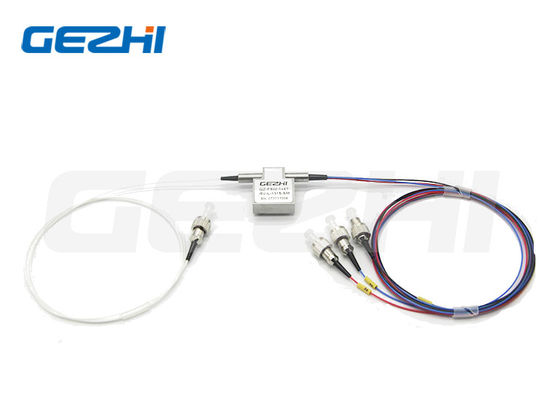

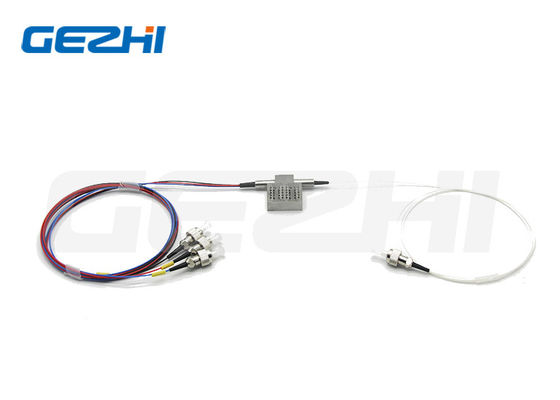

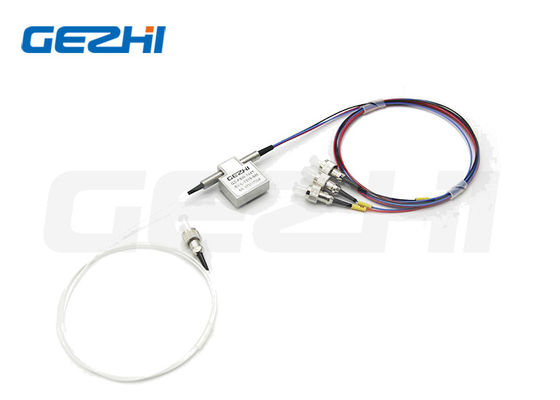

Latching 5V 850nm Mechanical Optical Switch with FC/APC Connector for Multimode Fiber Networks
  • name
  • name
  • name
  • name

Latching 5V 850nm Mechanical Optical Switch with FC/APC Connector for Multimode Fiber Networks

Brand Name: GEZHI or OEM
Model Number: GZ-FSW-1x3T-5V-L-850-M5
MOQ: 1pc
Price: US$48-US$118
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
850nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

850nm Mechanical Optical Switch

,

1x3 Mechanical Optical Switch

Product Description
Latching 5V 850nm Multimode1x3 T-Type Mechanical Optical Switch with FC/APC
Product Overview
GEZHI's Fiberoptic Switches 1x3 / 3x1 Latching Optical Switch device supports all wavelengths at 1260nm~1650nm or 850nm Multimode wavelength. It offers ultra-high reliability, low insertion loss, fast switching speed, and bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection, Network Test System and Instrumentations.
Latching 5V 850nm Mechanical Optical Switch with FC/APC Connector for Multimode Fiber Networks 0
Key Features
  • Low Insertion Loss
  • Low Optical Distortions
  • High Reliability
  • Epoxy-Free Optical Path
Applications
  • Channel Blocking
  • System Monitoring
  • Configurable Add/Drop
  • Instrumentation
Technical Specifications
Parameter Unit Typical Value
Operation Wavelength nm 850nm or 1310/1490/1550nm
Insertion Loss dB <0.8
Wavelength Dependent Loss dB <0.2
Polarization Dependent Loss dB <0.2
Return Loss dB SM: >55 MM:>40
Cross Talk dB SM: >55 MM:>40
Switching Time ms Typical: 4 Max:10
Repeatability dB <±0.02
Durability Cycles >10 Million
Switching Type Latching / Non-Latching
Optical Power Handling mW <500mW
Operating Voltage VDC 3V or 5V
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
Fiber Type / SM/MM Fiber
Package Dimension mm 27L x 23W x 8.2
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Ordering Information
GZ-FSW-1x3T-x-xx-x-x-xx-xx-x
Mode Wavelength Voltage Type Control Model Fiber Diameter Fiber Length Connector
S=SM 9/125
M5=MM 50/125
M6=MM 62.5/125		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
760=760nm
1742=1742nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non-Latching		 25=250um
90=900um		 05=0.5m
10=1.0m
X=Others		 0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
Tags:

Latching Optical Switch

1550nm Fiber Optical Switches

2x2 Fiber Bypass Switch
