MEMS Optical Switch
Created with Pixso. 1x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches
1x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches
  • name
  • name

1x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches

Brand Name: Gezhi or OEM
Model Number: 1x32-SM-13/15-XX
MOQ: 1 pieces
Price: USD >= 1 pieces $1070
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Model Number:
1x32-SM-13/15-X
Use:
System Monitor
Place Of Origin:
Guangdong, China
Warranty Time:
3 Years
Network:
TCP, POE, GPRS, Wifi
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

Rackmount MEMS Optical Switch

,

Low IL MEMS Optical Switch

,

Fast Switching MEMS Optical Switch

Product Description

with low il, fast switching, serialnet, high reliability, led display



Product Description

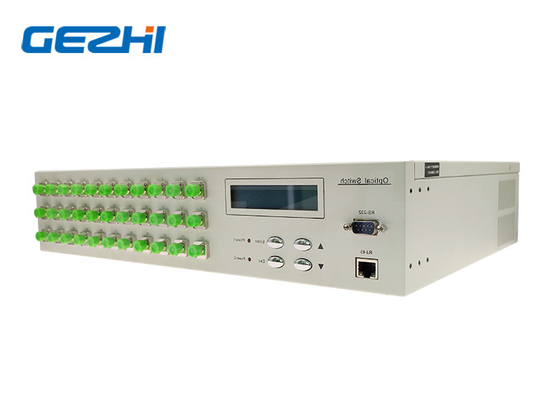

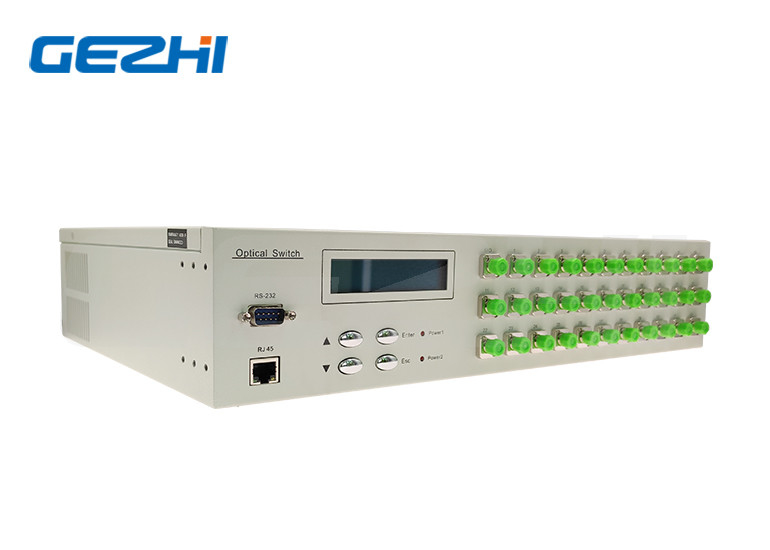

                                          1x32 Desktop Optical Switches Rackmount

1×N rack-mounted optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors


1x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches 01x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches 1



FEATURES AT A GLANCE



Low insertion loss, Fast switchingSerialNet, High Reliability, High Stability

LED display panel. Visual display

Transparent transmission signalRS232 Control & RJ45 Ethernet Remote Management
PRODUCT SPECIFICATIONS
Parameter
Unit
OSW-1x32-U
Wavelength Range
nm
850±40/1300±40
1260～1650
Operating Wavelength
nm
850/1300
1310/1550
Insertion Loss
dB
Typ. ≤0.8dB, Max.≤1.5 dB
Typ. ≤0.8dB,Max.≤1.5 dB
Return Loss
dB
MM≥35 SM≥50
Crosstalk
dB
MM≥50 SM≥70
Polarization Dependent Loss
dB
0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
V
AC:100～ 240 (50/60Hz)
Lifetime
times
≥107
Switch Time
ms
≤10
Optical Power
mW
≤500
Operating Temperature
℃
-10~+60
Storage Temperature
℃
-40~+85
Dimension
mm
2U:483 x 230 x 89

Our certificate
1x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches 2
product shipping
1x32 MEMS Optical Switch With Low IL And Fast Switching Rackmount optical switches 3
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to South America(25.00%),Eastern Asia(20.00%),North America(15.00%),Eastern Europe(10.00%),Western Europe(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
DWDM,CWDM,Filter WDM,AAWG DWDM,Mechanical Optical Switch

4. why should you buy from us not from other suppliers?
Gezhi Photonics is a factory which mainly produce Optical switches, DWDM, FWDM, CEx Module, CWDM, PatchCord, Optical Transceiver etc. We are focus on the quality and comply with ISO:9001, Rohs, CE, Reach, GR-1209-CORE and GR-1221-CORE standard

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,D/P D/A,PayPal,Cash;
Language Spoken:null
