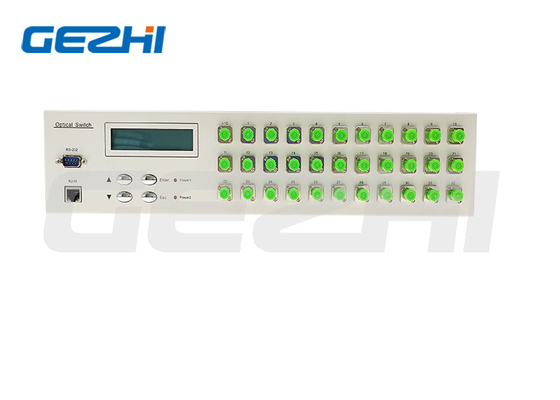

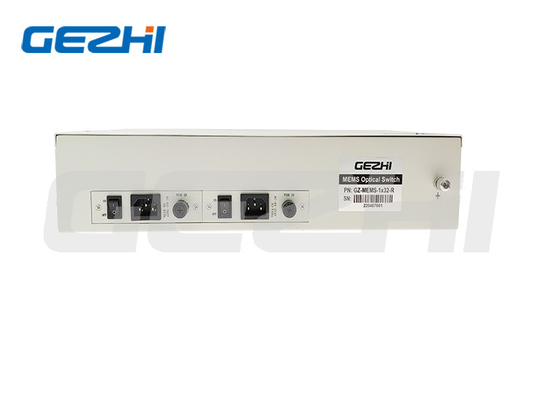

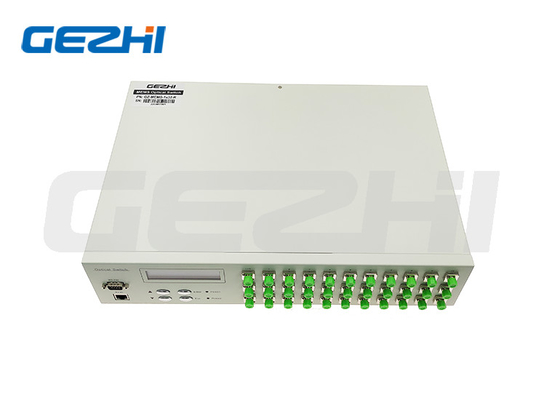

MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components

MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components
MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components

Large Image :  MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x32-MEMS-13/15-aa
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $1070
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Model Number: 1x32-MEMS-13/15-aa Wavelength: 1260-1650nm
Voltage: AC:100~ 240 Interface Protocol: RS232 And RJ45
Fiber Connector: SC Or FC Etc. Application: Optical Network Remote Monitoring
Highlight:

MEMS 1X32 optical switch

,

AC 100-240V MEMS Optical Switch with





Product Description

                                        MEMS 1X32 optical switch with standard single-mode, multi-mode, and PM fiber components

1x32Inside the switch package both the CMOS/TTL compatible driver. The array of MEMS optical switches can be controlled individually and are bidirectional so they can be used in either a 1xN or Nx1 orientation.

GEZHI's MEMS 1x32 optical switches offer excellent optical performance, high reliability over a very long lifetime. They have been tested and proven in the telecommunication, aerospace and other demanding applications.







FEATURES AT A GLANCE



SerialNet, High Reliability, High Stability

LCD display panel. Visual display, Convenient operation

Transparent transmission signal. High stability and reliability

Channel and time interval of automatic scanning can be set up

RS232 Control and RJ45 Ethernet Remote Management



Applications

FITL

Automatic Measurement

Optical Network Remote Monitoring Cable Monitoring

Maintaining system



MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components 0MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components 1MEMS 1X32 Optical Switch With Standard Single-mode Multi-mode And PM Fiber Components 2







PRODUCT SPECIFICATIONS



Parameter Unit 1x8 1x12 1x16 1x24 1x32 1x64 1x128 1x256
Wavelength Range nm 850/1310 for MM or 1260~1650 for SM or customized
Testing Wavelength nm 850/1310, 1310/1550 or customized
Insertion Loss (Max) dB ≤1.0 ≤1.5 ≤1.5 ≤1.7 ≤1.7 ≤2.0 ≤2.2 ≤2.4
Return Loss dB MM ≥ 30, SM ≥ 45
Crosstalk dB MM ≥ 30, SM ≥ 45
PDL dB ≤0.10
WDL dB ≤0.30
TDL dB ≤0.30
Repeatability dB ≤0.02
Switching Time ms ≤8 (Adjacent Channel)
Optical Power mW ≤500
Fiber Type um 9/125
Connector / FC, SC, LC, ST, SMA or customized
Monitor Port / RJ45 & RS232 or customized
Working Power Supply (Plug Tyep) V AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature ℃ -10~+60
Storage Temperature ℃ -40~+85
Rack mount Dimensions mm 1U L483XW230XH44.5 (Up to 32 channel) customization is available.
2U L483XW230XH89 (Up to 128 channel) customization is available.
3U L483XW230XH133.5 (Up to 256 channel) customization is available.

Ordering Information MEMS-1xN-X-XX-X-XX-XX-XX-XX

MEMS Mode Wavelength Package Fiber Type Power Supply Connector

1x4

1x8

1x16

1x32

1x64

1x128

S=Specity

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

85/13=850/1300

13/15=1310/1550nm

S=Specify

1U=1U Rackmount

2U=2U Rackmount

3U=3U Rackmount

4U=4U Rackmount

S=Specify

M5=50/125

M6=62.5/125

S9=9/125

S=Specify

AC=Single 85~265V

DC=Single 36~72V

AA=Dual 85~265V

DD=Dual 36~72V

AD=AC85~265V+DC36~75V

00=None

FP=FC/UPC

FA=FC/APC

SP=SC/UPC

SA=SC/APC

LP=LC/UPC

LA=LC/APC

S=Specify




Optical Route
