Fiber Optical Switches
Created with Pixso. GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss

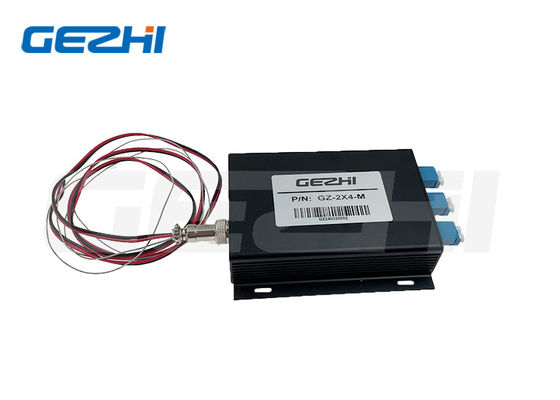

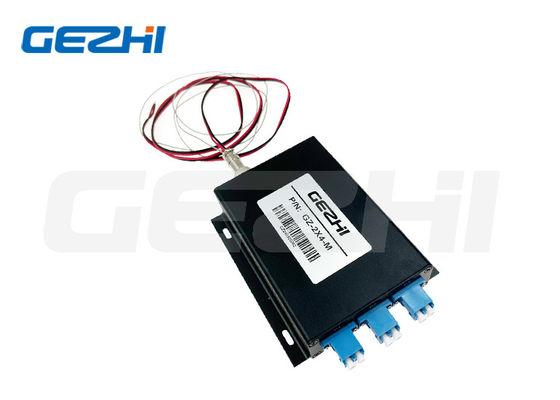

GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss
  • name
  • name
  • name
  • name
  • name

GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss

Brand Name: GEZHI or OEM
Model Number: GZ-FSW-2x4 Fiber Optical Switch
MOQ: 1pc
Price: US$260-US$350
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Model:
GZ-FSW-2X4
Insertion Loss:
Typ.:0.5 DB Max.:1.0 DB
Wavelength Range:
1260~1650 Nm
Fiber Type:
SM, 9/125um(SMF-28)
Optic Power:
≤500 MW
Connector:
LC/PC
Control Mode:
TTL
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

GZ-FSW-2x4 Fiber Optical Switch

,

1260~1650nm Fiber Optical Switch

,

TTL Control Optical Switch

Product Description
GZ-FSW-2x4 Fiber Optical Switch 1260~1650nm TTL Control Optical Switch
The GZ-FSW-2x4 optical switch is a precision light path control device designed to manage and convert optical pathways in communication systems. This switch plays a vital role in optical communication applications, enabling efficient light path management and routing.
GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss 0
Key Features
  • Unmatched low cost solution
  • Minimal optical distortions
  • High isolation performance
  • Exceptional reliability
  • Epoxy-free optical path design
  • Convenient light path switching via button control
  • RS-232 interface with PC software control capability
Applications
  • Ring network systems
  • Remote monitoring in optical networks
  • Testing of fiber optical components
  • Optical transmission system multiplex monitoring
  • LAN optical detector automatic exchange systems
  • Multi-point dynamic monitoring in optical sensing systems
Technical Specifications
ParameterValues
ModelGZ-FSW-2X4
Insertion LossTyp.: 0.5 dB, Max.: 1.0 dB
Wavelength Range1260~1650 nm
Test Wavelength1310/1550 nm
Fiber TypeSM, 9/125um (SMF-28)
Return Loss≥50 dB
Crosstalk≥70 dB
PDL≤0.05 dB
WDL≤0.25 dB
TDL≤0.25 dB
Repeatability≤0.02 dB
Lifetime≥10 million cycles
Switching Time8 ms (Adjacent channel)
Optic Power≤500 mW
ConnectorLC/PC
Control ModeTTL
Working Power Supply5V/100 mA
Operating Temperature-40℃ to +85℃
Dimension104.0*120*28±0.2mm
Product Dimensions and Interface
GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss 1
Connector Configuration:
P1 connector: Optical switch channel common
P2 connector: Optical switch channel 1
P3 connector: Optical switch channel 2

Indicator Lights:
Indicator light 1: Power indicator
Indicator light 2: Channel 1 indicator (illuminates when P1 passes to P2)
Indicator light 3: Channel 2 indicator (illuminates when P1 passes to P3)
GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss 2
GX12-3 Control Interface:
Pin 1: +5V power supply
Pin 2: Ground (GND)
Pin 3: Control pin (High: P1-P2, Low: P1-P3)
Optical Route Configuration
GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss 3
Technical Drawing
GZ-FSW-2x4 Fiber Optical Switch with 1260~1650nm Wavelength Range and TTL Control for Low Insertion Loss 4
