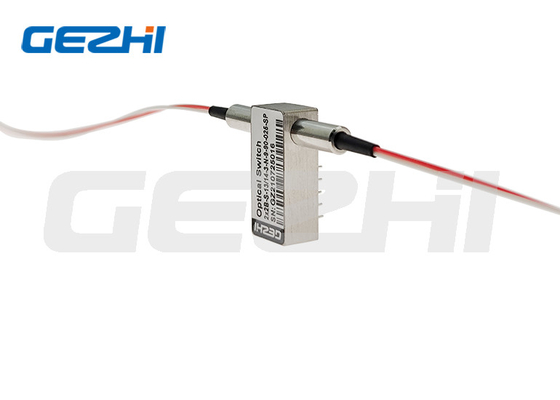

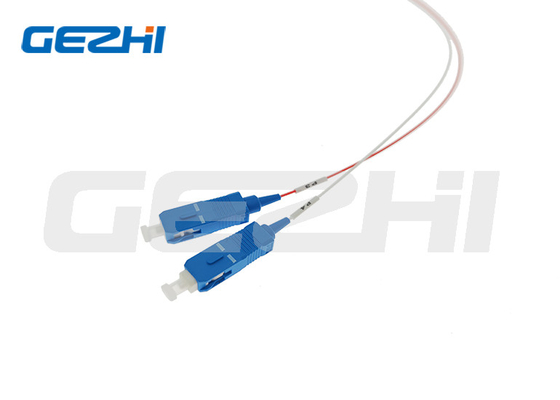

1260 ~ 1650nm Mechanical 2x2B Optical Switch Device



The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers.



This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.



Features



Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching



Applications

Network switching

System monitoring

Channel Blocking

Module and System Integration

Metropolitan Area Network

Network protection and restoration

1260 ~ 1650nm Mechanical 2x2B Optical Switch Device passive optic switch  SC/UPC 01260 ~ 1650nm Mechanical 2x2B Optical Switch Device passive optic switch  SC/UPC 11260 ~ 1650nm Mechanical 2x2B Optical Switch Device passive optic switch  SC/UPC 2





Technical Paremeter


Parameters Unit GZ-FSW-2×2B
Wavelength Range nm 850±40/1300±40 1260~1650
Operating avelength nm 850/1300 1310/1550
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 3.0 or 5.0
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature -20~+70
Storage Temperature -40~+85
Weight g 16
Dimension mm (L)27.0×(W)12.0×(H)8.2



Optical Route

Fs OSW-2x2-1.jpg

Ordering Information

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
