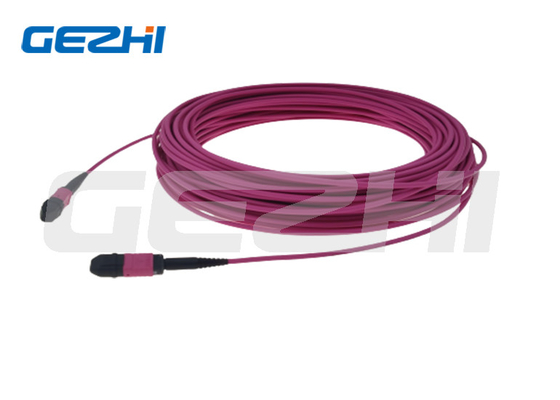

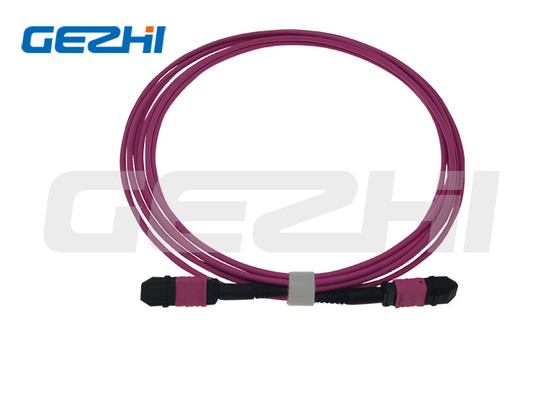

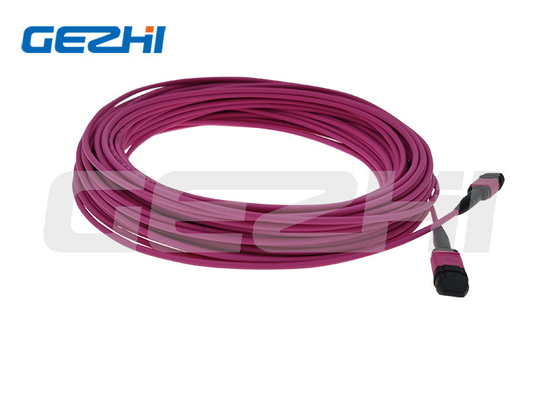

12 Fibre LC Duplex 1x6 To MTP MPO Cables MPO OM4 Patch Cord

12 Fibre LC duplex (x6) to MTP (MPO) cables MPO OM4 Patch Cord

Product View

GEZHI offers P grade OM4 MPO fiber optic patch cords.Its comes with multimode fiber appliies to high density in data center or telecommunication systems.

• Laser-Optimized multimode OM4 fiber

• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high back reflection
• Optimized performance – available in elite MTP and discrete premium connector upon request

Application

• APPLICATION

  Data Center

  40GbE & 100GbE protocol

  Storage area networking

  Optical System Access network

Specification

1. Custom Fiber Count

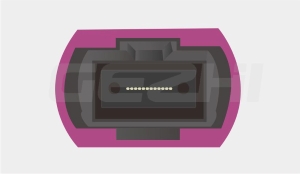

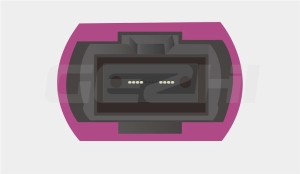

8 Fibers used for 40G/100G QSFP+/QSFP28 direct connection.	12-144 Fibers used for 10G/40G/100G high-denisty structural fiber cabling.

2. Custom Polarity

There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:

3. Custom Connector

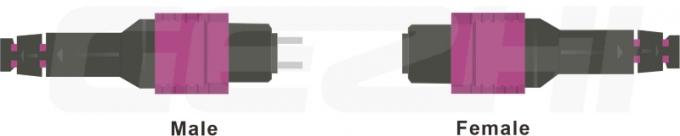

The MPO interfaces on active equipment are male (with pins), and to avoid damage to the transceiver, MPO patch cords should be female (without pins).

Application Diagram

1. Custom Fiber Count

2. Custom Polarity

To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.

MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.

There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:

3. Custom Connectors

About us

Our Certificates

Packing

AFQ

Q1:Can I have a sample order? What is your MOQ?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
