1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch

Name: 1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OLP-1+1-13/15-UU
Price: 50.00 USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	OLP-1+1-13/15-UU
MOQ:	1 pieces
Price:	USD >= 1 pieces $100
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model:

OLP-1+1-13/15-UU

Application:

Optical Network Remote Monitoring

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Switch Time:

30ms

Voltage:

AC:100~ 240

Interface Protocol:

RS232 And RJ45

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

Line Protection fiber Optical Switches

Line Protection Optical Fiber Optic Switch

1-1 Fiber Optical Switches

Product Description

Product description

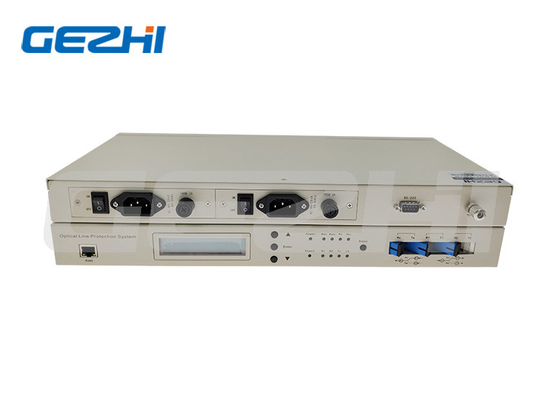

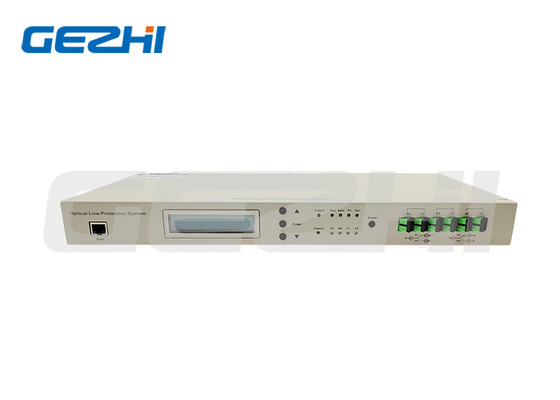

Lc/upc olp 1+1 Optical Line Protection Switch

Optical Line Protection System (OLP) uses vacant optical fiber from different route to build a backup path. By real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than a user defined threshold . OLP will provide you a more reliable, flexible and high secure optical transmission network .It is widely used for protecting backbone and important business line.

Feature

Low insertion loss, Fast switchingReal-time monitoring power level of fiber
LED display panel. Visual display
RS232 Control & RJ45 Ethernet Remote Management

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch 0

Technical Parameters

Parameters	Unit	OLP-1:1	OLP-1+1	OLP-1-1
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	TX<1.2,RX<1.2	TX<4,RX<1.2	<1.2
Return Loss	dB	SM ≥ 45
Crosstalk	dB	SM ≥ 50
PDL	dB	≤ 0.20
WDL	dB	≤ 0.30
PD dark current	nA	＜1
PD responsivity	mA/W	24 ~ 40
PD report accuracy	dB	±0.5 (at -50 to 23 dBm)
Operating voltage	V	4.5 ~ 5.5
Operating current	mA	80 ~ 120
Operating Temperature	℃	-5 ~ +60
Storage Temperature	℃	-30 ~ +80
Dimension	mm	120×80×18

OLP Module(Multi Channel Optical Switch) Working Theory

1:1

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch 4

1+1

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch 5

1-1

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch 6

Dimension

1-1 Fiber Optical Switches For Line Protection In Optical Fiber Optic Switch 7

Ordering Information

Type

Fiber Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

Optical Line Protection System Module
1:1 :OLP 1:1
1+1:OLP 1+1
1-1: OLP 1-1

X: Others

SM: SM, 9/125
X: Others

1310: 1310nm
1550: 1550nm
1310/1550:
1310/1550nm
X:Others

90:900um
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others

01: 120×80×18(ABS)
X: Others

FAQ

1. who are we?
We are based in Guangdong, China, start from 2014,sell to South America(25.00%),Eastern Asia(20.00%),North America(15.00%),Eastern Europe(10.00%),Western Europe(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
DWDM,CWDM,Filter WDM,AAWG DWDM,Mechanical Optical Switch

4. why should you buy from us not from other suppliers?
Gezhi Photonics is a factory which mainly produce Optical switches, DWDM, FWDM, CEx Module, CWDM, PatchCord, Optical Transceiver etc. We are focus on the quality and comply with ISO:9001, Rohs, CE, Reach, GR-1209-CORE and GR-1221-CORE standard

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,D/P D/A,PayPal,Cash;
Language Spoken:null
