Product Details:
Payment & Shipping Terms:
|
| Operating Temperature: | -40~85°C | Cable Diameter: | 2.0mm |
|---|---|---|---|
| End Type: | PC | Return Loss: | ≥55dB (UPC) |
| Fiber Mode: | Single-mode | Insertion Loss: | ≤0.25dB |
| High Light: | PC Uniboot Patch Cable,Polarity Reversible Patch Cable,5m OM4 Patch Cords |
||
Product description

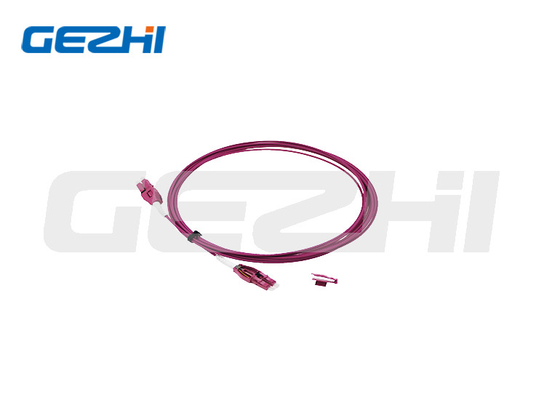

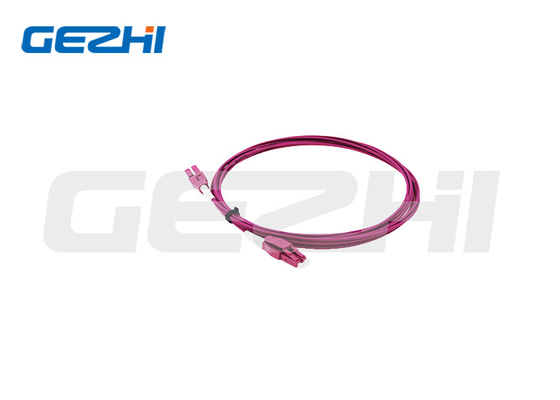

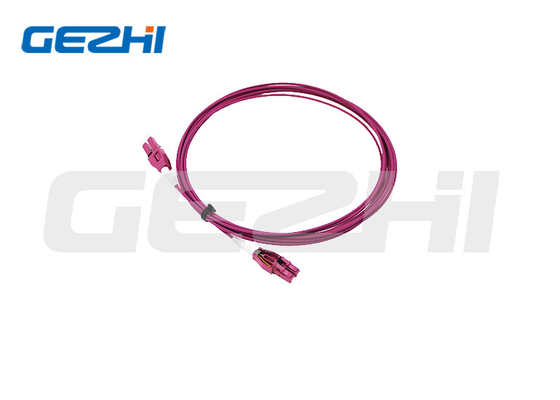

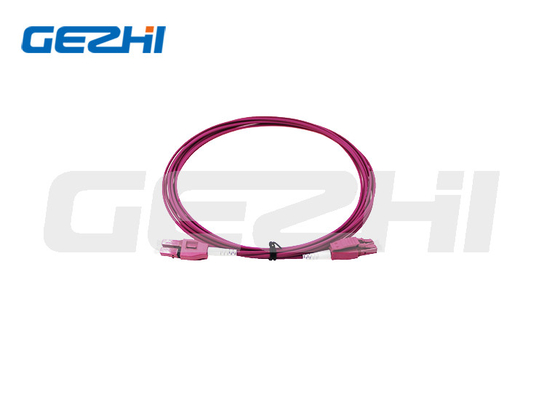

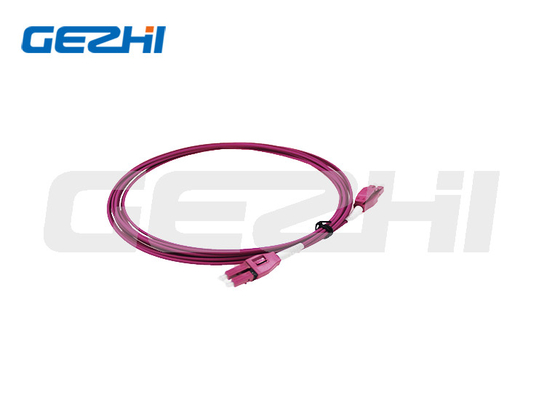

5m Patch Cable Polarity Reversible LC/PC Uniboot Patch Cords
Complete Connect’s Polarity Reversible LC Uniboot Patch Cords simplify cable management while connecting high-speed data and legacy networks. The single housing and round duplex cable reduces cabling by 50% compared to conventional LC duplex cables.
Our fiber optic connectors comply with the Telecordia-GR-326-CORE specification, with a metal sleeve and a fastening method with a screw fastener for excellent insertion loss and return loss performance.
Optical fiber connectors are widely used in optical fiber sensing systems, optical fiber test equipment, optical fiber communication systems, local area ring networks and other fields.
Specifications
| parameter | LC Uniboot Polarity Interchangeable Fiber Optic Cable | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| Operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Concentricity | ≤1um | ≤4um | ||
Application scenarios
| Telecommunication networks Fiber-to-the-home (FTTH) Fiber-optic communication systems Telecommunications networks and cable television Activating device and fiber optic infector |
 |
| Local Area Networks (LANs). WAN Optical Access Network (OAN). Testing instruments |
 |
| Fiber optic data transmission (FODT). Active device terminals Data centers Medical, subway, ships, aircraft, military |
