Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation

Name: Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1×3 T Type Switch
Price: 16.00 USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	1×3 T Type Switch
MOQ:	1 pieces
Price:	USD >= 1 pieces $32
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Application:

Configurable OADM

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Control Type:

Latching Or Non-Latching

Voltage:

3V Or 5V

Port:

1x3

Wavelength:

1260-1650nm Or Customized

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

Mechanical Fiber Optic Network Switch

High Channel Isolation Optic Network Switch

Single Mode Optic Network Switch

Product Description

Product description

1X3T Single Mode With High Channel Isolation mechanical Fiber Optic Network Switch

GEZHI Series FSW-1x3T Mini Opto-Machanical Optical Switches Bi-directional connects optical channels by directing or blocking an incoming optical signal into the output fiber. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The FSW-1x3T Mini Opto-Machanical Optical Switches Bi-directional has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedentedhighstabilityas wellas unmatchedlowcost.

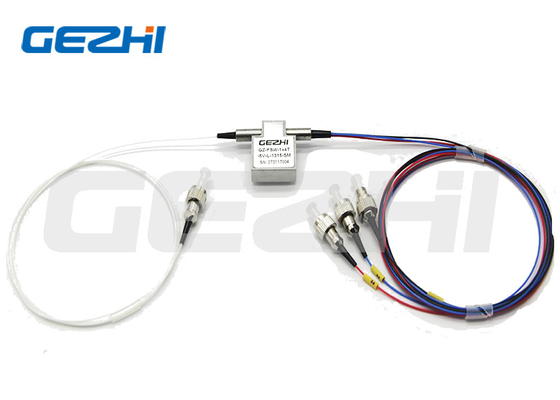

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation 0

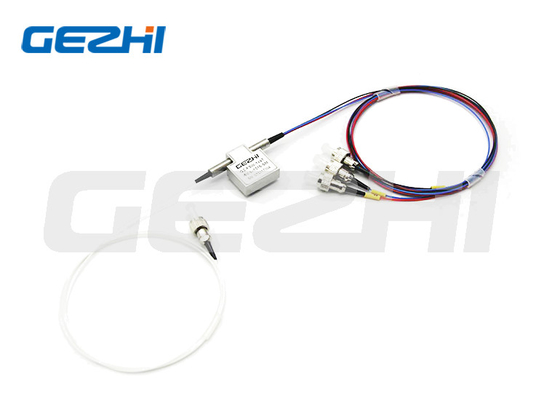

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation 1

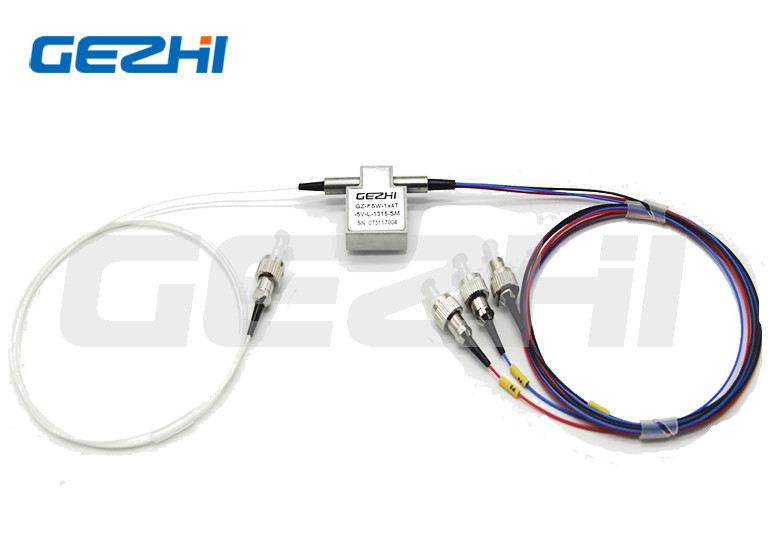

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation 2

Feature

Low Insertion Loss

Fast Switching Time

High Stability & Reliability

Industrial Operating Temperature

(-40~+80℃ available)

Compact Size

Latching or Non-latching type

PRODUCT SPECIFICATIONS

Parameter	Unit	1x3T Optical Switch
Wavelength Range	nm	850±40/1300±40	1260~1650
Operating Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	<1.3	<1.2
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

Tags:

Latching Optical Switch

1550nm Fiber Optical Switches

2x2 Fiber Bypass Switch

1650nm Mechanical Non Latched 1x8 Fiber Optical Switches

Get Best Price

Non Blocking 1650nm 4x4 Optical Bypass Switches 2x2

Get Best Price

Products Details

Home Products

Fiber Optical Switches

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation

All Category

CWDM Mux Demux

DWDM Mux Demux

AAWG DWDM

Filter WDM

Compact CWDM Module

Optical Add Drop Multiplexer

Fiber Optical Switches

Optical Switch Equipment

MEMS Optical Switch

Polarization Maintaining Components

High Power Components

Fiber Optic Passive Components

Patch Cable Series

Fiber Optic Box

Optical Transceiver Module

Fiber Optic Accessories

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation

Brand Name:	Gezhi or OEM
Model Number:	1×3 T Type Switch
MOQ:	1 pieces
Price:	USD >= 1 pieces $32
Packaging Details:	inner box,Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Gezhi or OEM

Certification:

CE RoHS,ISO9001

Model Number:

1×3 T Type Switch

Application:

Configurable OADM

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Control Type:

Latching Or Non-Latching

Voltage:

3V Or 5V

Port:

1x3

Wavelength:

1260-1650nm Or Customized

Minimum Order Quantity:

1 pieces

Price:

USD >= 1 pieces $32

Packaging Details:

inner box,Carton

Delivery Time:

7 Days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

Mechanical Fiber Optic Network Switch

High Channel Isolation Optic Network Switch

Single Mode Optic Network Switch

Product Description

Product description

1X3T Single Mode With High Channel Isolation mechanical Fiber Optic Network Switch

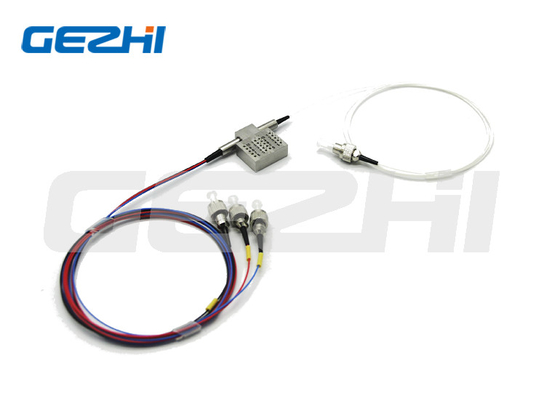

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation 0

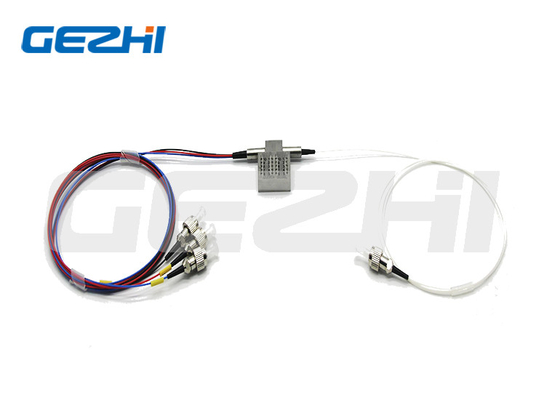

Mechanical Fiber Optic Network Switch 1X3T Single Mode With High Channel Isolation 1
