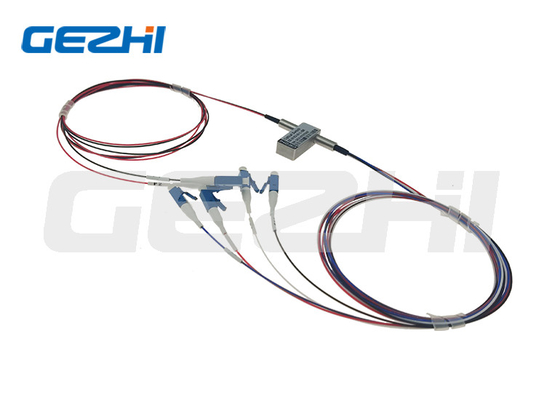

Dual 1x2 Opto-Mechanical Optical Switches Dual 1X2 LC/UPC Or SC/UPC Connector

Name: Dual 1x2 Opto-Mechanical Optical Switches Dual 1X2 LC/UPC Or SC/UPC Connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: D1x2-SM-13/15-5AA
Price: 30.00 USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	D1x2-SM-13/15-5AA
MOQ:	1 pieces
Price:	USD >= 1 pieces $60
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model:

D1x2-SM-13/15-5AA

Application:

Configurable OADM

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Control Type:

Latching Or Non-Latching

Voltage:

3V Or 5V

Port:

Dual 1x2

Wavelength:

1260-1650nm

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

1x2 Opto-Mechanical Optical Switches

SC/UPC Opto-Mechanical Optical Switches

LC/UPC Opto-Mechanical Optical Switches

Product Description

Product description

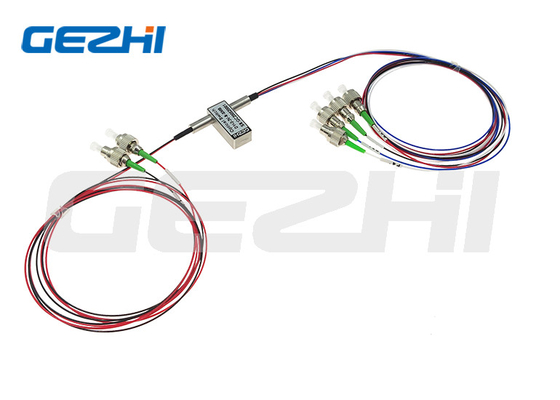

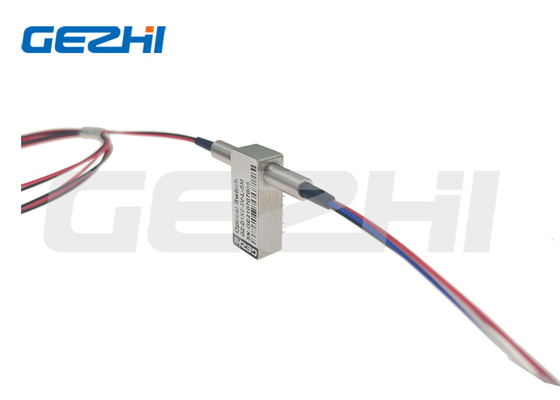

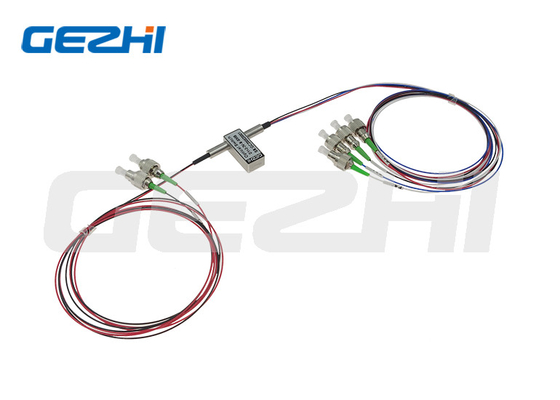

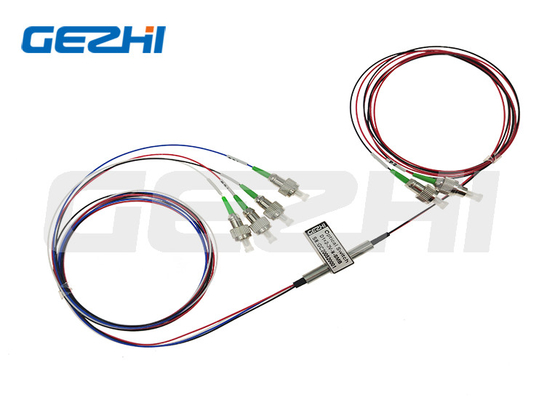

Dual 1x2 Opto-Mechanical Optical Switches dual 1X2 LC/UPC or SC/UPC connector

GEZHI Dual 1x2 Bypass mechanical Fiber Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. Its working with Singlemode wavelength 1260~1650nm or Multimode 850/1310nm. This is using a opto-mechanical proprietary configuration and activated via an electrical control signal. The Dual 1x2 mechanical Fiber Optical Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The D1x2 mechanical Fiber Optical Switch are true switching solution for optical networking applications.

Dual 1x2 Opto-Mechanical Optical Switches Dual 1X2 LC/UPC Or SC/UPC Connector

Feature

Low Insertion Loss

Fast Switching Time

High Stability & Reliability

Industrial Operating Temperature

(-40~+80℃ available)

Compact Size

Latching or Non-latching type

PRODUCT SPECIFICATIONS

Parameter	Unit	D1x2 Optical Switch
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	<1.0	<1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

Product packaging

Finished Item

Inner Package

Inner Box

Carton

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

Relay Reliable Testing

100% Testing Before Shipment

Product Shipping

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
