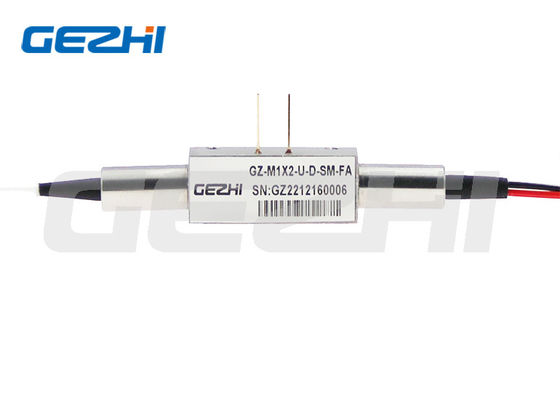

1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability

Brand Name:	Gezhi or OEM
Model Number:	Magneto type
MOQ:	1 pieces
Price:	USD >= 1 pieces $60
Delivery Time:	7 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Port:

1x2 Or Customized

Control Type:

Latching

Wavelength:

1310 Or 1550

Voltage:

Insertion Loss:

0.90(Typ.); 1.20(Max)

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

1x2 Magneto Optical Switch

Dual stage Magneto Optical Switch

Single stage Magneto Optical Switch

Product Description

Product description

1x2 Single stage or Dual stage Magneto Optical Switch

GEZHI Magneto-optical switch uses faraday magneto-optical effect for optical switching. Capable of changing the external magnetic field, this kind of magneto optical switch uses Faraday rotation to change the polarization plane of incident polarized light, so as to switch the optical paths. Compared with the traditional mechanical optical switch, magneto optical switch has the advantages of fast switching speed and high stability. While compared with other non-mechanical optical switch, it also holds the advantages of low driving voltage and small crosstalk. Naturally, it is now gradually gaining widespread usage in fiber networks.

1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability

Feature

Low Insertion Loss

Fast Switching Time

High Stability & Reliability

Compact Size

Wide Wavelength Range

PRODUCT SPECIFICATIONS

Item	unit	Parameter
Wavelength	nm	1525 ~ 1565
Insertion Loss	dB	0.90(Typ.); 1.20(Max)
PDL	dB	0.10(Typ.), 0.20(Max)
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 40
Repeatability	dB	+/- 0.02
Durability	Cycles	> 10 Billions
Switching Speed	μs	Regular (200); Ultra-fast (50)
Switching Type	n/a	Latching
Operating Temperature	°C	-5 ~ 70
Storage Temperature	°C	-40 ~ 85
Maximum Optical Power	mW	300
Dimension	mm	52 × 8.4× 8.4
Fiber Type	NA	SMF-28

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

Relay Reliable Testing

100% Testing Before Shipment

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
