Created with Pixso. 8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design

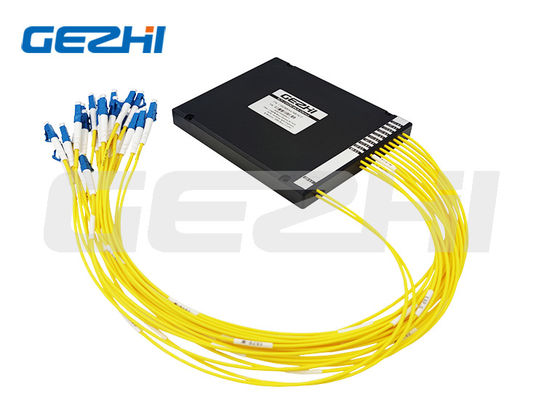

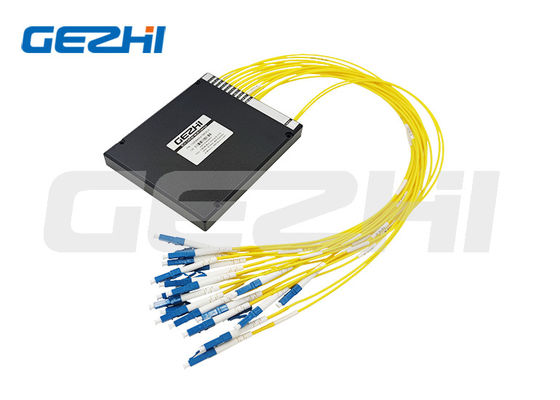

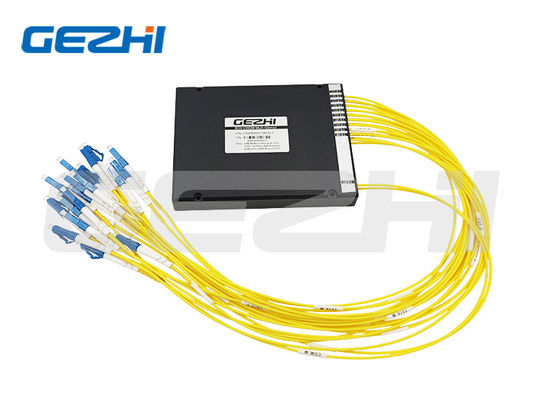

8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
  • name
  • name
  • name

8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design

Brand Name: Gezhi or OEM
Model Number: 8CH cwdm module AA
MOQ: 1 pieces
Price: USD >= 1 pieces $20
Delivery Time: 7 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Operating Temperature:
0 ~ +70 Or -40 ~ +85
Return Loss:
≥45
Operating Wavelength:
1260-1620
Operating Number:
8+1
Center Wavelength:
ITU, ITU+1
Passband:
ITU±6.5
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

Fwdm Dwdm Cwdm

,

Cwdm Coarse Wavelength Division Multiplexer

,

8 channel cwdm

Product Description

Product description

                                  8 CH Coarse WDM Mux Demux Module different types of Fwdm Dwdm Cwdm

GEZHI's 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm is ABS module with SC/APC pigtailed. This 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm can solve the shortage of fiber and transparent transmi-ssion of business, and reduce the cost of network building. With low-cost, low power consumption and small com-pact, it is widely used in access layer and metro aggregation to do transmission on a short time.



8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design

8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design

8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design



Features:

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good Channel-to-Channel Uniformity
Wide Operating Wavelength:From 1260nm to 1620nm
Operating Temperature: From -40°C to 85°C
High Reliability and Stability

8Channle CCWDM Single Fiber Mux (Compact Coarse Wavelength Division Multiplexer)

Parameter
8CH Mux or Demux
Center Wavelength (nm)
ITU, ITU+1
Passband (nm)
ITU±6.5
Operating Wavelength (nm)
1470~1610nm + Wide 1310nm
Channel Space (nm)
20
Fiber Type
SMF-28e or customer specified
IL (dB)
<2.8dB
Isolation(dB)
Adjacent Channel
30

Non-Adjacent Channel
45
PDL (dB)
0.2
PMD (ps)
0.1
Return Loss (dB)
45
Directivity (dB)
50
Maximum Optical Power (mw)
500
Operating Temperature (℃)
-20~+70
Storage Temperature (℃)
-40～85
Connector
SC/APC
BOX Package (mm)
ABS box 100x80x10



Our Certificate
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
Test Enviroment
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis



SIMILAR PRODUCTS
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8CH CWDM Mux Demux
ABS box LC/UPC pigtailed
10Gbps CWDM SFP+
80km distance
MPO Fiber Patch Cable in
Data Center Transmission





Product Shipping
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
8 Channel CWDM Mux Demux Module with Low Insertion Loss High Isolation and Compact Design
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
