1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector

Name: 1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x4-Mems
Price: 16.00 USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	1x4-Mems
MOQ:	1 pieces
Price:	USD >= 1 pieces $32
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Switch Time:

30ms

Application:

Multicast Switching

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Voltage:

Port:

1x4

Wavelength:

C-band Or Customized

Warranty Time:

3 Years

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

1x4 Fiber MEMS Optical Switches Module

MEMS Optical Switches Module

Micro Electro Mechanical System Switch

Product Description

Product description

1x4 Fiber MEMS Optical Switches Module Micro-Electro-Mechanical System Switch with SC/UPC Connector

GEZHI Photonics offers MEMS optical switches support wide band wavelength and are compact, fast switching, High stability and with high channel number configuration. Its widely used in MCS, OXC, IODF, OLM, OTDR or fiber sensing etc.

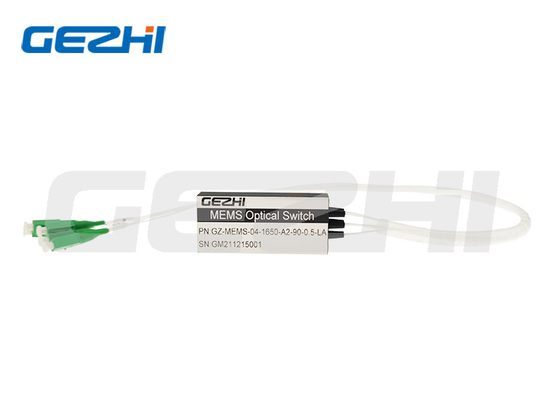

1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector 0

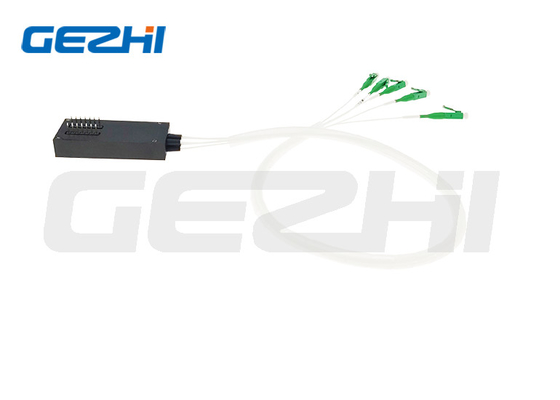

1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector 1

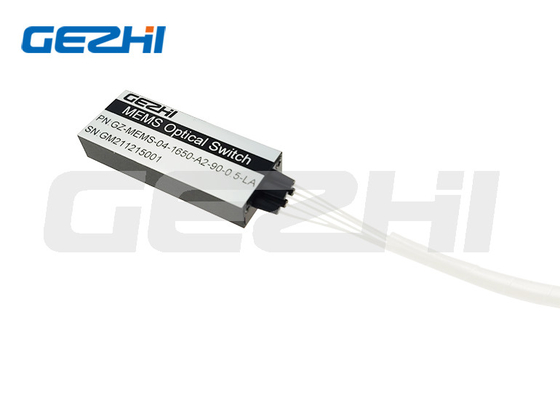

1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector 2

1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector 3

1x4 Fiber MEMS Optical Switches Module Micro Electro Mechanical System Switch With SC/UPC Connector 4

Feature

Low Insertion Loss

Fast Switching Time
Compact Size
Multiple Channels-Up to 1x256 channel
High number of switching cycles over life

PRODUCT SPECIFICATIONS

Parameter	Unit	1x4, 1x8, 1x16 MEMS Optical Switch
Wavelength Range	nm	C-Band	L-Band
Operating Wavelength	nm	1530~1570	1570~1610
Insertion Loss	dB	<1.3	<1.3
Return Loss	dB	≥50
Crosstalk	dB	≥55
Polarization Dependent Loss	dB	≤0.15
WDL	dB	≤0.3
TDL	dB	≤0.3
Repeatability	dB	≤±0.1
Power Supply	V	≤5
Lifetime	times	≥109
Switch Time	ms	≤15
Optical Power	mW	≤500
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Dimension	mm	M1: 34x24x11 (N≤64, bare fiber) M2: 60x24x11 (N≤16, loose tube) M3: 90x55x12 (16≤N≤64, loose tube) M4: 100x100x12 (64≤N≤144, loose tube) M5: 110x141x12 (144≤N≤256, loose tube)
Note: 1. Within Operating temperature and all SOP. 2. Above spec. is not inlude connector, if add connector, the IL will increase 0.3dB. 3. Customized wavelength is available.

Product packaging

Finished Item

Inner Package

Inner Box

Carton

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

Relay Reliable Testing

100% Testing Before Shipment
